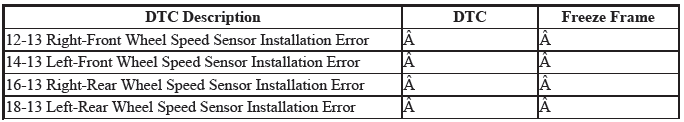

Honda HR-V: DTC Troubleshooting 12-13, 14-13, 16-13, 18-13: Wheel Speed Sensor Installation Error

Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Diagnostics / DTC Troubleshooting / DTC Troubleshooting 12-13, 14-13, 16-13, 18-13: Wheel Speed Sensor Installation Error

NOTE: Before you troubleshoot, review the general troubleshooting information.

VSA System - Diagnostics

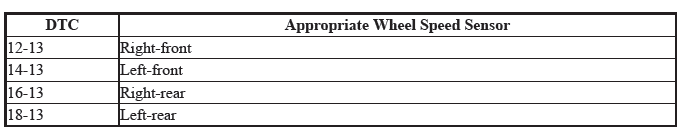

1. Wheel speed sensor performance check:

  1. Test-drive the vehicle in a straight line at 6 mph (10 km/h) or more.

NOTE: Drive the vehicle on the road, not on a lift.

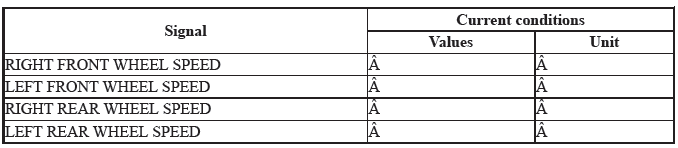

  1. Check the parameter(s) below with the HDS.

VSA System - Diagnostics

VSA System - Diagnostics

Are all four values the same?

YES

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

NO

Go to step 2.

2. Wheel speed sensor installation check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Check that the appropriate wheel speed sensor is properly mounted.

VSA System - Diagnostics

Is the wheel speed sensor installation OK?

YES

Replace the appropriate wheel speed sensor.

NO

Reinstall the wheel speed sensor, and recheck the mounting position.

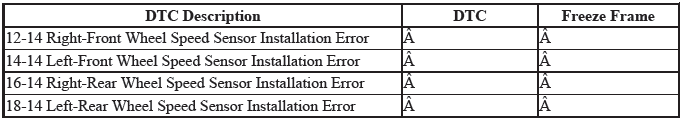

DTC TROUBLESHOOTING 12-14, 14-14, 16-14, 18-14: WHEEL SPEED SENSOR INSTALLATION ERROR

NOTE: Before you troubleshoot, review the general troubleshooting information.

VSA System - Diagnostics

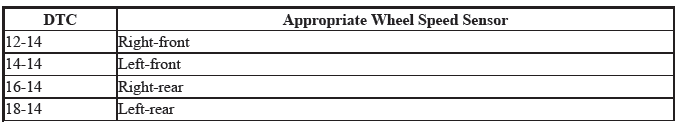

1. Wheel speed sensor performance check:

  1. Test-drive the vehicle on the road in a straight line over 19 mph (30km/h) for 70 seconds or more.

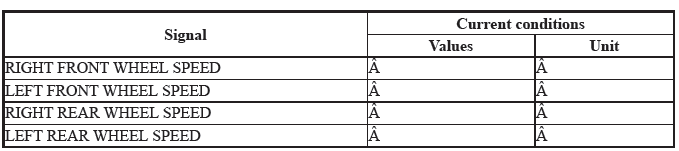

  2. Check the parameter(s) below with the HDS.

VSA System - Diagnostics

Are all four values the same?

YES

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

NO

Go to step 2.

2. Wheel speed sensor installation check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Check that the appropriate wheel speed sensor is properly mounted.

VSA System - Diagnostics

Is the wheel speed sensor installation OK?

YES

Replace the appropriate wheel speed sensor.

NO

Reinstall the wheel speed sensor, and recheck the mounting position.

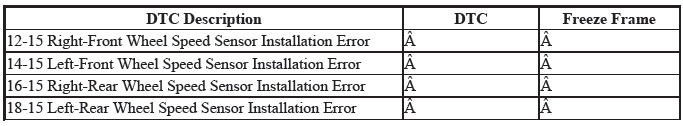

DTC TROUBLESHOOTING 12-15, 14-15, 16-15, 18-15: WHEEL SPEED SENSOR INSTALLATION ERROR

NOTE: Before you troubleshoot, review the general troubleshooting information.

VSA System - Diagnostics

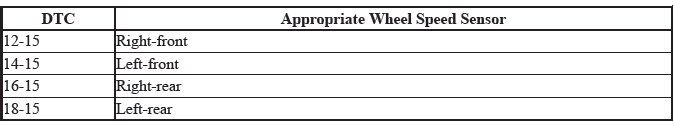

1. Wheel speed sensor performance check:

  1. Test-drive the vehicle in a straight line between 1 mph (1 km/h) and 9 mph (15 km/h).

NOTE: Drive the vehicle on the road, not on a lift.

  1. Check the parameter(s) below with the HDS.

VSA System - Diagnostics

Are all four values the same?

YES

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

NO

Go to step 2.

2. Wheel speed sensor installation check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Check that the appropriate wheel speed sensor is properly mounted.

VSA System - Diagnostics

Is the wheel speed sensor installation OK?

YES

Replace the appropriate wheel speed sensor.

NO

Reinstall the wheel speed sensor, and recheck the mounting position.
