Honda HR-V: DTC Troubleshooting 71-11, 71-12, 71-13, 71-14, 71-15, 71-16: Different Diameter Tire Malfunction

Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Diagnostics / DTC Troubleshooting / DTC Troubleshooting 71-11, 71-12, 71-13, 71-14, 71-15, 71-16: Different Diameter Tire Malfunction

NOTE:

  • The DTC will be indicated when the vehicle has a different diameter tire(s) compared to the other tires.
  • Before you troubleshoot, review the general troubleshooting information.

VSA System - Diagnostics

VSA System - Diagnostics

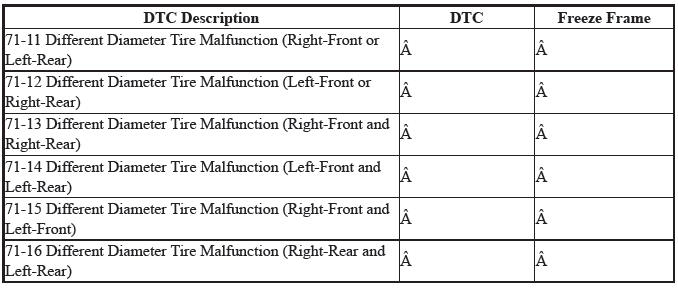

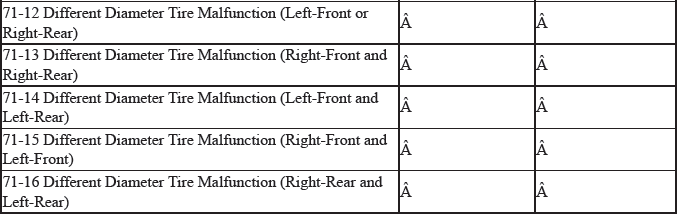

1. Problem verification:

  1. Check the tires for proper inflation and the correct size.
  2. Turn the vehicle to the ON mode.
  3. Clear the DTC with the HDS.
  4. Turn the vehicle to the OFF (LOCK) mode.
  5. Test-drive the vehicle at 19 mph (30 km/h) or more, and go a distance of 328 ft (100 m) or more.

NOTE: Drive the vehicle on the road, not on a lift.

  1. Check for DTCs with the HDS.

VSA System - Diagnostics

Is DTC 71-11, 71-12, 71-13, 71-14, 71-15 or 71-16 indicated?

YES

The failure is duplicated. Replace tires as needed until all their diameters match.

NO

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.
