Honda HR-V: DTC Troubleshooting Index

Honda HR-V (2015-2021) Service Manual / Transmission / Continuously Variable Transmission (CVT) - Testing & Troubleshooting / DTC Troubleshooting Index

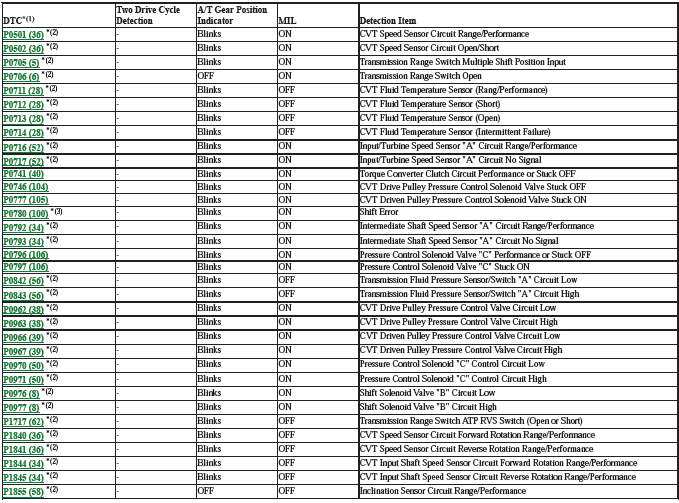

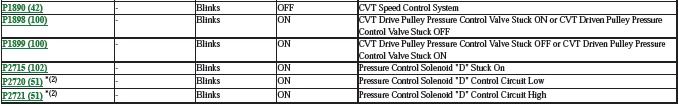

CVT SYSTEM DTC TROUBLESHOOTING INDEX (KA/KC CVT)

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review the General Troubleshooting Information - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the CVT System (CVT).

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

Continuously Variable Transmission (CVT) - Testing & Troubleshooting

NOTE: *(1): The DTC in parentheses is the flash code the A/T gear position indicator indicates when the data link connector (DLC) is connected to the HDS, and in the SCS mode.*(2): This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.*(3): This code is stored whenever DTCs P1898 or P1899 are detected.
