Honda HR-V: DTC Troubleshooting, Testing
Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Driving Assistance Warning - Testing & Troubleshooting / DTC Troubleshooting, Testing
DTC TROUBLESHOOTING

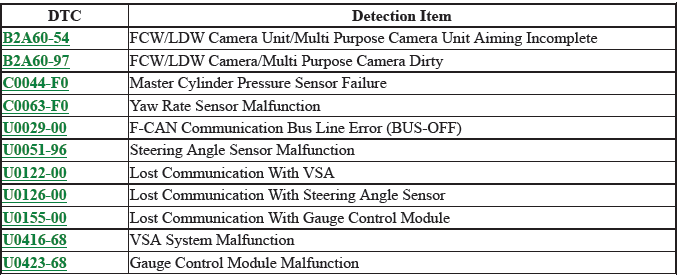

FORWARD COLLISION WARNING (FCW) DTC TROUBLESHOOTING INDEX
.png)
.png)

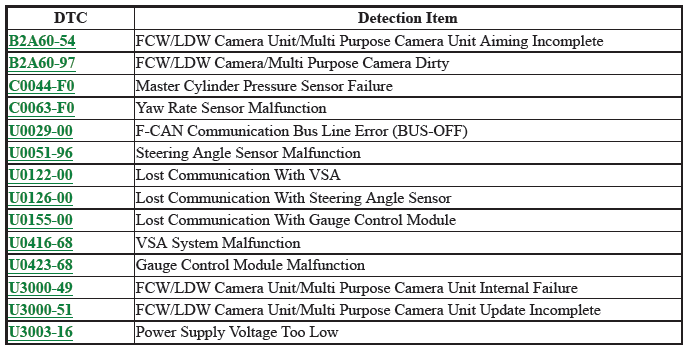

LANE DEPARTURE WARNING (LDW) DTC TROUBLESHOOTING INDEX
.png)
TESTING
MULTIPURPOSE CAMERA UNIT UPDATE
Any one of the above updating tools can be used.
Special Tools Required

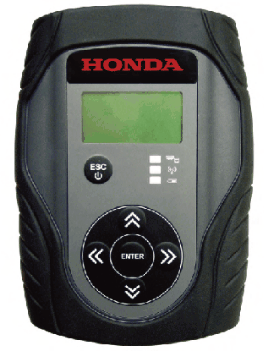

MVCI unit with the latest control module (CM) update software installed
.png)
Any one of the above updating tools can be used.
Procedure
1. Multi Purpose Camera Unit - Update
NOTE: Check any official Honda service website for more service information about updating the MVCI and control units.
READ NEXT:
Both FCW And LDW Indicators (Amber) Come ON At The Same Time
(Temperature Too Hot) (Forward Collision Warning (FCW)
Refer to: How to Troubleshoot the Forward Collision Warning (FCW) or How to
Troubleshoot the Lane
Departure Warning (LDW)
BOTH FCW AND LDW INDICATORS (AMBER) DOES NOT GO OFF (FORWARD COLLISION
WARNIN
Forward Collision Warning (FCW) Symptom Troubleshooting - Both FCW
And LDW Indicator (Amber) Do Not Go OFF
1. Problem verification:
Turn the vehicle to the ON mode.
Wait for about 6 seconds.
Do both FCW and LDW indicator go off?
YES
Intermittent failure, the system is OK.
NO
Go to step 2.
2. Fuse check
