Honda HR-V: DTC U0029-00 (EPS Control Unit)

NOTE:

• Troubleshoot any PGM-FI system DTCs first - Refer to: How to Troubleshoot the Fuel and Emissions Systems, or How to Troubleshoot the CVT System (CVT).
• Before you troubleshoot, review the general troubleshooting information.
• This DTC is stored by communication failure between the F-CAN line and the EPS control unit. When DTC U0029-00 is indicated, the F-CAN line has already returned to normal. Check for loose terminals and poor connections in the connectors. If the connectors are OK, clear the DTC and follow this troubleshooting.

DTC (EPS)

1. DTC check.

1. Turn the vehicle to the ON mode.
2. Clear the DTC with the HDS.

Clear DTCs

3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
4. Check for F-CAN circuit DTCs with the HDS.

Are any DTCs indicated?

YES

Go to the troubleshooting for F-CAN circuit troubleshooting.

NO

Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

DTC U0100-00, U0122-00, U0126-00 (EPS CONTROL UNIT)

NOTE:

• Before you troubleshoot, review the general troubleshooting information.
• Refer to the DTC code shown on the display, and then inspect the connectors and terminals based on the instructions in the table below.
• The DTC may be stored due to loss of voltage supply or ground at the transmitting control unit. Verify voltage supply and ground are OK on the control unit related to the specific code before following this troubleshooting.

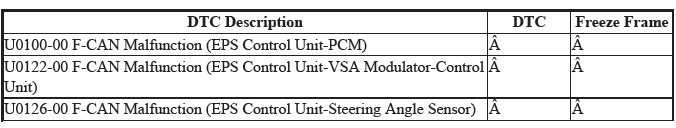

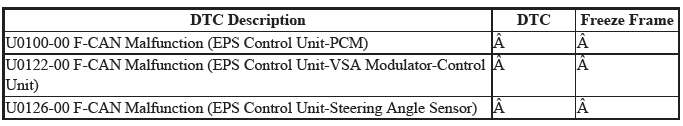

DTC (EPS)

1. Problem verification.

1. Turn the vehicle to the ON mode.
2. Clear the DTC with the HDS.

Clear DTCs

3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
4. Wait 60 seconds or more.
5. Check for DTCs with the HDS.

Is any of DTC indicated?

YES

Go to step 2.

NO

Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control units, and EPS control unit. Refer to intermittent failures troubleshooting. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

2. Open wire check (F-CAN_L, F-CAN_H lines).

1. Turn the vehicle to the OFF (LOCK) mode.
2. Disconnect the following connectors.

EPS control unit connector B (6P)

3. EPS control unit connector B (6P)

NOTE: Always short the SCS line with the HDS before removing PCM connector(s).

SCS Short

PCM connector A (51P)

VSA modulator-control unit 21P connector

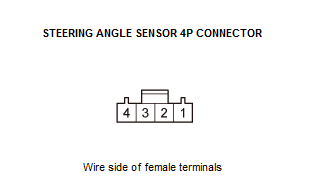

Steering angle sensor 4P connector

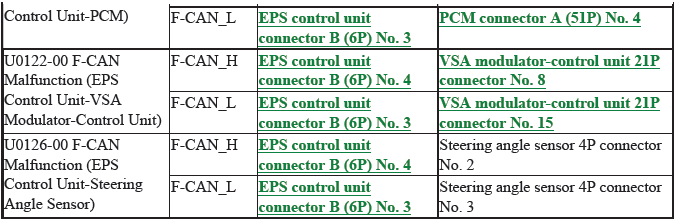

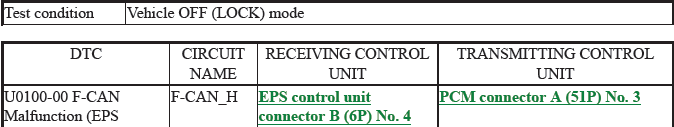

4. Check for continuity between the receiving control unit and the transmitting control unit on the F-CAN_H circuit and the F-CAN_L circuit as specified in the table while in the vehicle OFF mode.

Is there continuity?

YES

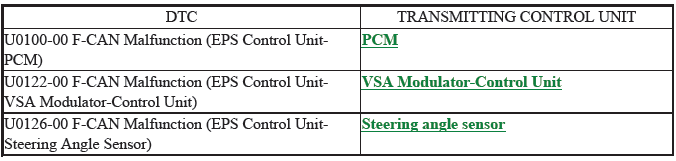

The F-CAN_L and F-CAN_H wires are OK at this time, replace the transmitting control unit.(Refer to the DTC code shown on the display, and then replace the control unit based on the instructions in the table below.)

NO

Repair an open in the F-CAN_L and/or F-CAN_H wires between the receiving control unit and the transmitting control unit.

DTC U0416-68 (EPS CONTROL UNIT)

NOTE:

• Before you troubleshoot, review the general troubleshooting information.
• This DTC is stored by VSA system malfunction. If the VSA indicator on, troubleshoot the VSA system first.

DTC (EPS)

1. Problem verification.

1. Turn the vehicle to the ON mode.
2. Clear the DTC with the HDS.

Clear DTCs

3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
4. Wait 60 seconds or more.
5. Check for DTCs with the HDS.

Is DTC U0416-68 indicated?

YES

The failure is duplicated. Go to VSA system troubleshooting.

NO

Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.
