Honda HR-V: Engine Stalls

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

NOTE:

  • Before beginning this troubleshooting, do a customer diagnostic interview - Refer to: Fuel and Emissions Systems Symptom Troubleshooting - Engine stalls Diagnostic interview, or Fuel and Emissions Systems Symptom Troubleshooting - Hard to start engine Diagnostic interview.
  • When the symptom cannot be duplicated, you can do the troubleshooting using the on-board snapshot information in this procedure - Refer to: PGM-FI System Description - OBD, or PGMFI System Description - On-Board Snapshot. Refer to the diagnostic interview (date, place) and the present total mileage, and compare the total mileage which is estimated from the interview when a failure occurred and the parameter (total mileage) in the on-board snapshot information.

    Make sure the date when the failure occurred corresponds with the date on which the on-board snapshot information was recorded. If it doesn't, the on-board snapshot information cannot be used in this troubleshooting.

  • Before beginning this troubleshooting:
  • Make sure the 12 volt battery is fully charged.
  • Make sure the fuel tank is at least 1/4 full.
  • Make sure the engine oil level is correct.
  • After the troubleshooting, reset the PCM with the HDS to erase the on-board snapshot information recorded on the PCM.

1. DTC check.

  1. Turn the vehicle to the ON mode.
  2. Check for Pending or Confirmed DTCs with the HDS.

Fuel and Emissions - Testing & Troubleshooting

Are any Pending or Confirmed DTCs indicated?

YES

Go to the indicated DTC's troubleshooting.

NO

Go to step 2.

NOTE: If the HDS does not communicate with the vehicle, go to the PCM power and ground circuit troubleshooting.

2. Problem verification.

  1. Set the HDS to record a HIGH-SPEED SNAPSHOT of following parameters for 30 seconds.
    • ENGINE SPEED
    • MAF SENSOR
    • ECT SENSOR 1
    • BATTERY
    • CKP NO PULSE
    • CKP NOISE
    • AF FB (ST FUEL TRIM)
    • EVAP PC DUTY
    • MISFIRE
    • EGR valve position sensor (EGR VLS)
    • EGR L COMMAND
    • A/C CLUTCH
    • PNP SWITCH (CVT)
    • SLIP RATIO OF TORQ OR STARTCLUTCH (CVT)

Data List

  1. Begin the snapshot, then start the engine and let it idle without load (CVT in P or N, M/T in neutral).

Did the engine stall?

YES

Go to step 4 (diagnosis by parameter (MAF SENSOR) ).

NO

Go to step 3.

3. On-board snapshot check.

  1. Check for a record of Engine Stall 2 in the on-board snapshot with the HDS.

On-board Snapshot

Is there an Engine Stall 2 record in the on-board snapshot?

YES

Go to step 4 (diagnosis by parameter (MAF SENSOR) ).

NO

Go to step 16 (fuel system troubleshooting).

NOTE: If an engine stall on-board snapshot was not found, the snapshot may have been lost due to low battery voltage or because of battery disconnection or replacement.

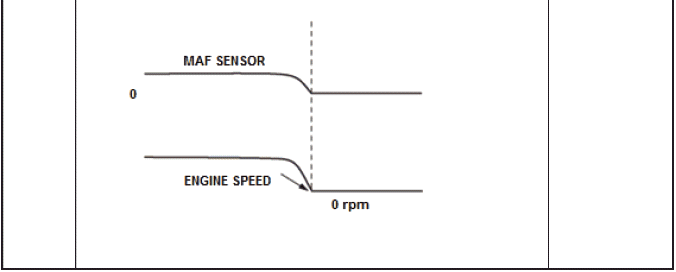

4. On-board snapshot check (MAF SENSOR):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the MAF SENSOR and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the MAF SENSOR pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

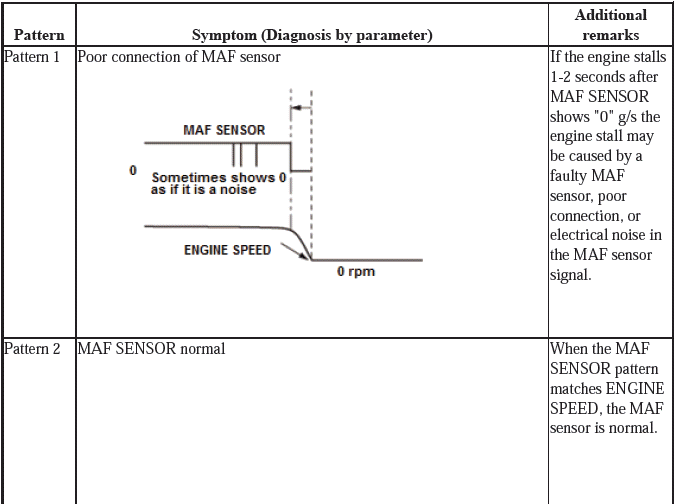

Which pattern is indicated?

Pattern 1

Check the MAF sensor/IAT sensor for loose terminals or poor connections. If the terminals and connections are OK, substitute a known-good MAF sensor/IAT sensor.

Pattern 2

The MAF sensor/IAT sensor is OK. Go to step 5 (diagnosis by parameter (ECT SENSOR 1) ).

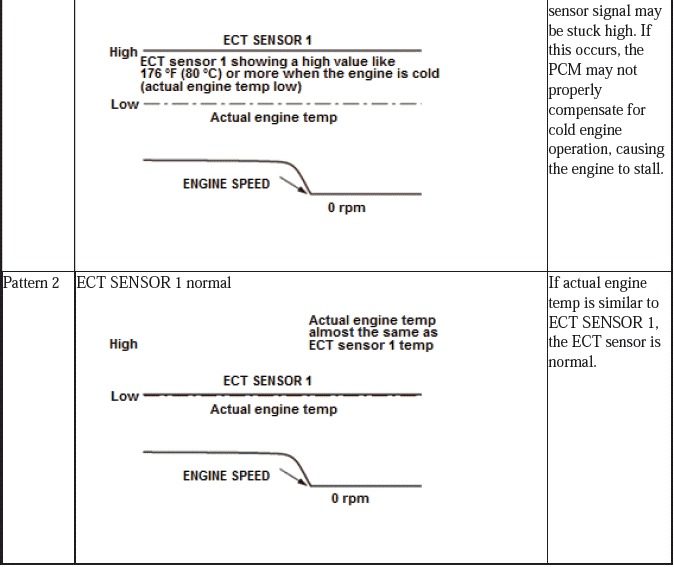

5. On-board snapshot check (ECT SENSOR 1):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select ECT SENSOR 1 and the ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare ECT SENSOR 1 pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

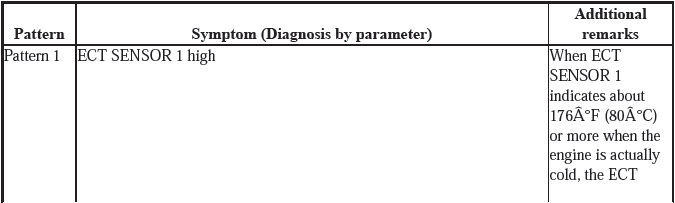

Which pattern is indicated?

Pattern 1

Check for a short in the ECT sensor circuit and a failure in the ECT sensor.

Pattern 2

Go to step 6

6. ECT sensor 1 check.

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Let the engine cool for 24 hours.
  3. Measure the ambient temperature of the engine with the thermometer.
  4. Turn the vehicle to the ON mode, but do not start the engine.

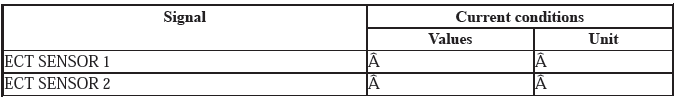

  5. Check the parameter(s) below with the HDS.

Fuel and Emissions - Testing & Troubleshooting

Are the values of ECT SENSOR 1, ECT SENSOR 2, and the ambient temperature almost the same?

YES

ECT sensor 1 is OK. Go to step 7 (diagnosis by parameter (BATTERY) ).

NO

If the value of ECT SENSOR 1 is much higher (or lower) than that of ECT SENSOR 2, and the ambient temperature, check for the ECT sensor 1 circuit and a failure in ECT sensor 1.

7. On-board snapshot check (BATTERY):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the BATTERY and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the BATTERY pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

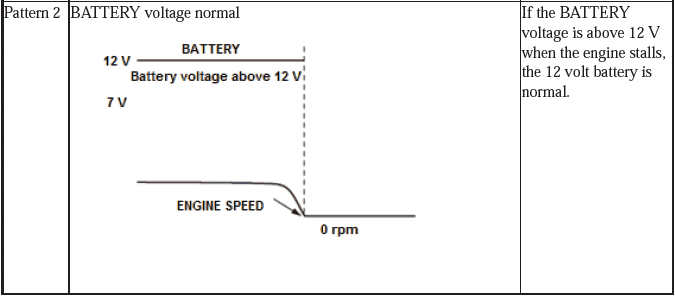

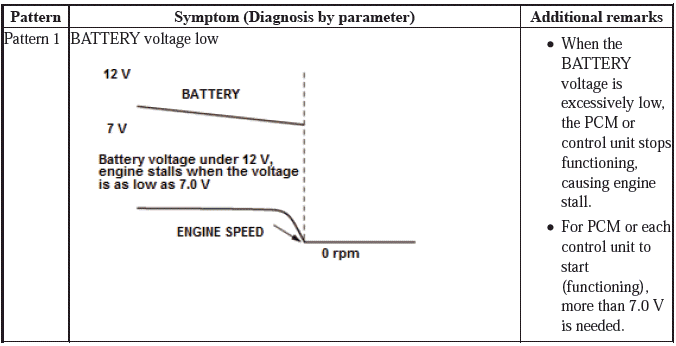

Which pattern is indicated?

Pattern 1

Test the 12 volt battery, and check the 12 volt battery cables and terminals.

Pattern 2

The 12 volt battery is OK. Go to step 8 (diagnosis by parameter (CKP NO PULSE) ).

8. On-board snapshot check (CKP NO PULSE):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the CKP NO PULSE and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the CKP NO PULSE pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

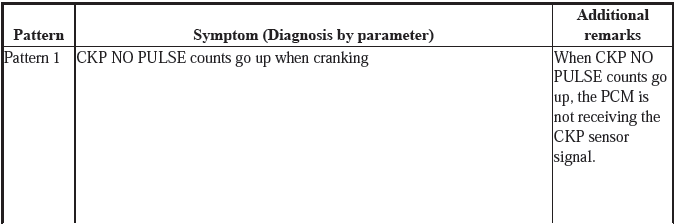

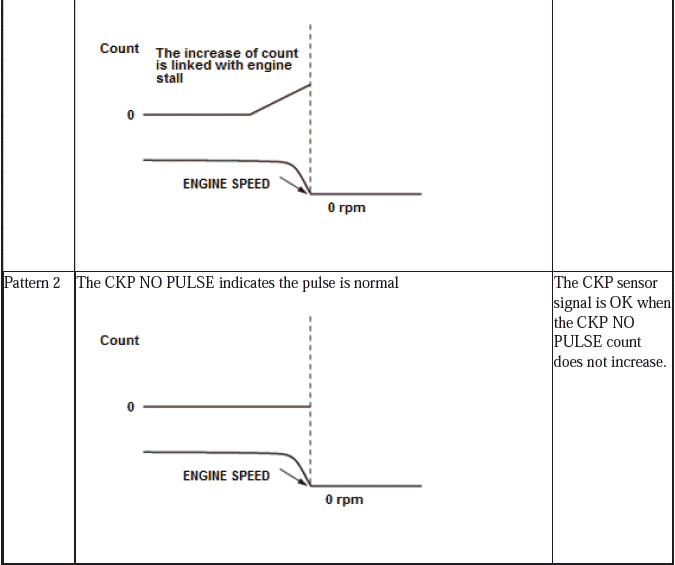

Which pattern is indicated?

Pattern 1

Do the troubleshooting procedure for DTC P0335.

Pattern 2

Go to step 9 (diagnosis by parameter (CKP NOISE) ).

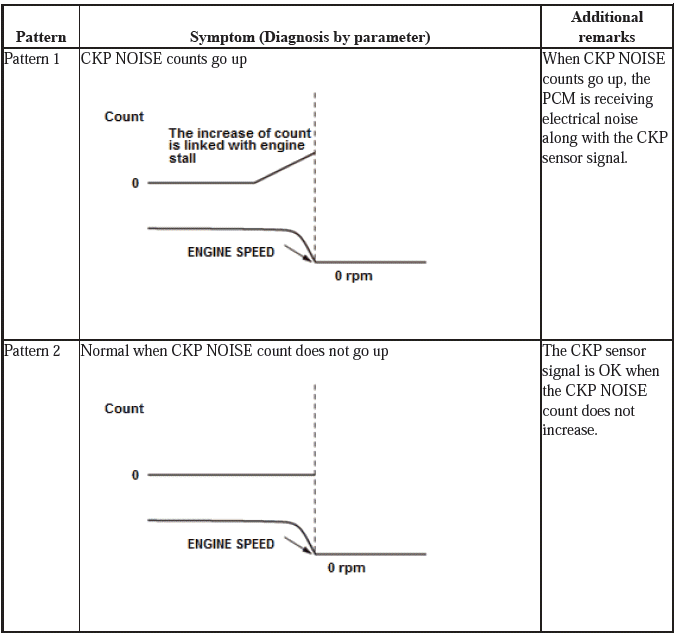

9. On-board snapshot check (CKP NOISE):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the CKP NOISE and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the CKP NOISE pattern from these charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Which pattern is indicated?

Pattern 1

Go to the troubleshooting procedure for DTC P0339.

Pattern 2

The CKP sensor is OK. Go to step 10 (diagnosis by parameter (AF FB (ST FUEL TRIM) ) ).

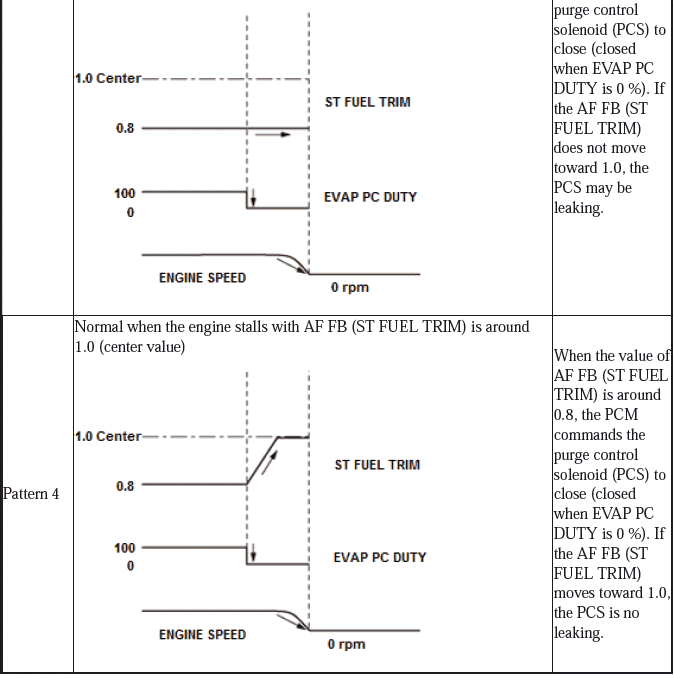

10.On-board snapshot check (AF FB (ST FUEL TRIM) ):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the AF FB (ST FUEL TRIM), EVAP PC DUTY, and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine Stall, then compare the AF FB (ST FUEL TRIM) pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

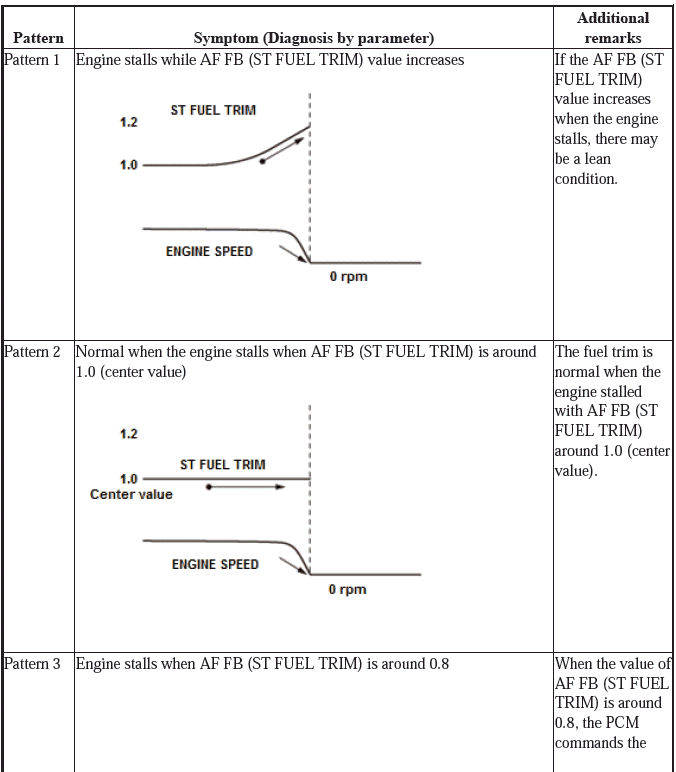

Which pattern is indicated?

  1. Pattern 1
    Diagnostic procedure:
    1. Check the fuel pump operation sound.
    2. Go to the fuel pressure test.
    3. Go to the fuel pump circuit troubleshooting.
    4. Test PGM-FI main relay 1.
    5. Test PGM-FI main relay 2.

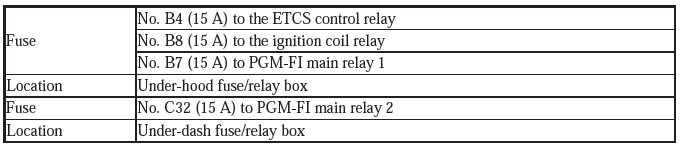

    6. Check the following fuses:
      • No. B7 (15 A) fuse (in the under-hood fuse/relay box)
      • No. C32 (15 A) fuse (in the under-dash fuse/relay box)

Pattern 3

Check the PCS for leaks.

Pattern 2 and 4 (Reproducible failure)

Go to step 11 (diagnosis by parameter (EGR valve position sensor (EGR VLS) ) ).

Pattern 2 and 4 (Intermittent failure)

Go to step 12 (diagnosis by parameter (MISFIRE) ).

11.Snapshot check (EGR valve position sensor (EGR VLS) ).

  1. Check for the recorded snapshot with the HDS.
  2. Select the EGR valve position sensor (EGR VLS) and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of engine stall, then compare the EGR valve position sensor (EGR VLS) pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

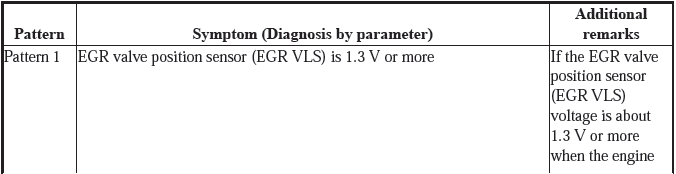

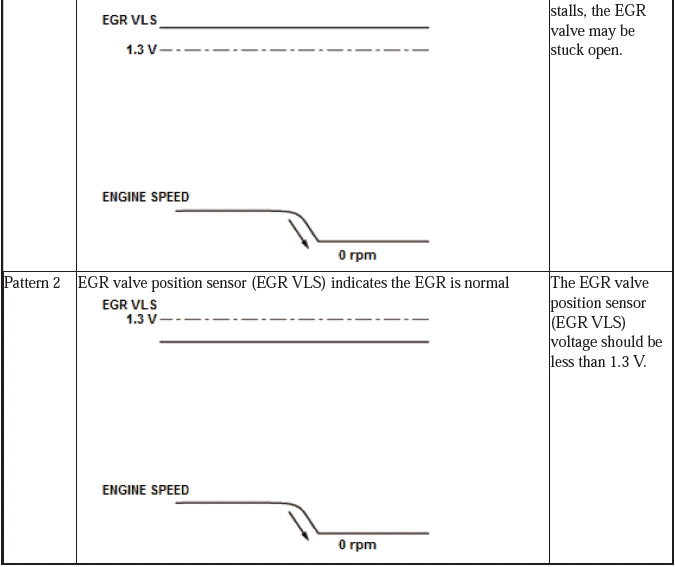

Which pattern is indicated?

Pattern 1

Loosen the EGR valve mounting bolts, then install a metal plate between the EGR valve and the engine to shut out the EGR port, and recheck. If it is OK, replace the EGR valve.

Pattern 2

The EGR valve is OK. Go to step 12 (diagnosis by parameter (MISFIRE) ).

12.On-board snapshot check (MISFIRE):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the MISFIRE and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare those snapshots to the MISFIRE pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

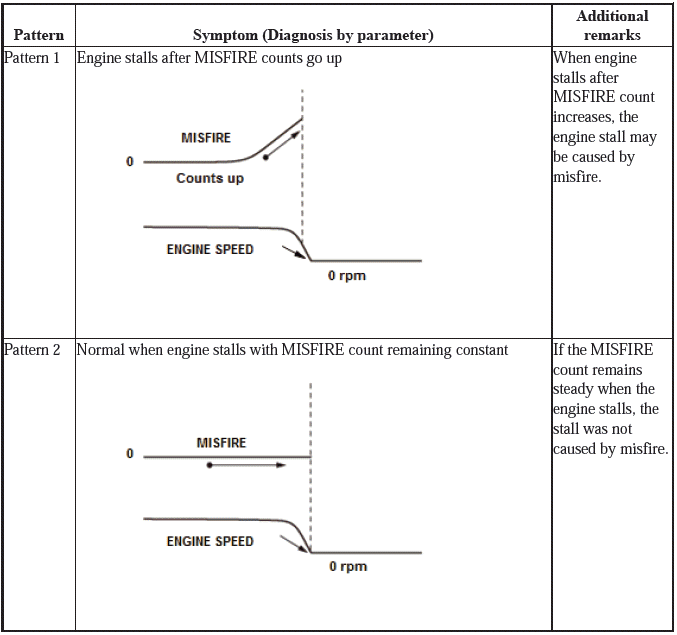

Which pattern is indicated?

Pattern 1

Diagnostic procedure:

  1. If misfire counts go up without storing misfire DTC P0300 P0304, go to DTC P0300 P0304 troubleshooting.
  2. If the misfire count reaches the malfunction threshold, DTC P0300 P0304 is stored. Go to DTC P0300 P0304 troubleshooting.

Pattern 2

Go to step 13 (diagnosis by parameter (A/C CLUTCH) ).

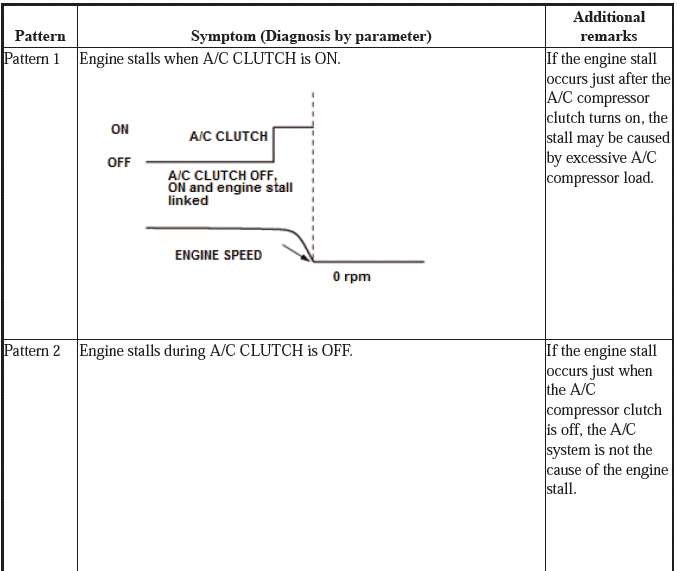

13.On-board snapshot check (A/C CLUTCH):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the A/C CLUTCH and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the A/C CLUTCH pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

Which pattern is indicated?

Pattern 1

Diagnostic procedure:

  1. Check for over-charge A/C refrigerant.
  2. Check for charging with the wrong refrigerant.
  3. Check for drag of the A/C compressor and A/C compressor clutch.

Pattern 2 (CVT)

Go to step 14 (diagnosis by parameter (PNP SWITCH) ).

Pattern 2 (M/T)

Go to step 16 (fuel system troubleshooting).

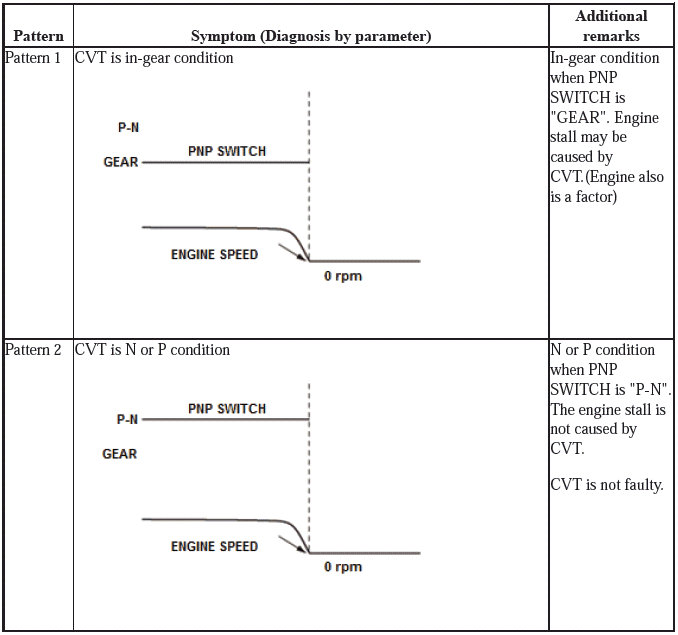

14.On-board snapshot check (PNP SWITCH):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the PNP SWITCH and ENGINE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the PNP SWITCH pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

Which pattern is indicated?

Pattern 1

Go to step 15 (diagnosis by parameter (SLIP RATIO OF TORQ OR STARTCLUTCH) ).

Pattern 2

Go to step 16 (fuel system troubleshooting).

15.On-board snapshot check (SLIP RATIO OF TORQ OR STARTCLUTCH):

NOTE: Use the on-board snapshot in the case of an intermittent failure, or use the snapshot in the case of a reproducible failure.

  1. Check for a record of Engine Stall 2 in the on-board snapshot or the recorded snapshot with the HDS.

On-board Snapshot

  1. Select the SLIP RATIO OF TORQ OR STARTCLUTCH, ENGINE SPEED, and VEHICLE SPEED in the configuration list.

Check the recorded snapshot or on-board snapshot parameters at the time of the engine stall, then compare the SLIP RATIO OF TORQ OR STARTCLUTCH pattern from the charts, and determine the problem.

Fuel and Emissions - Testing & Troubleshooting

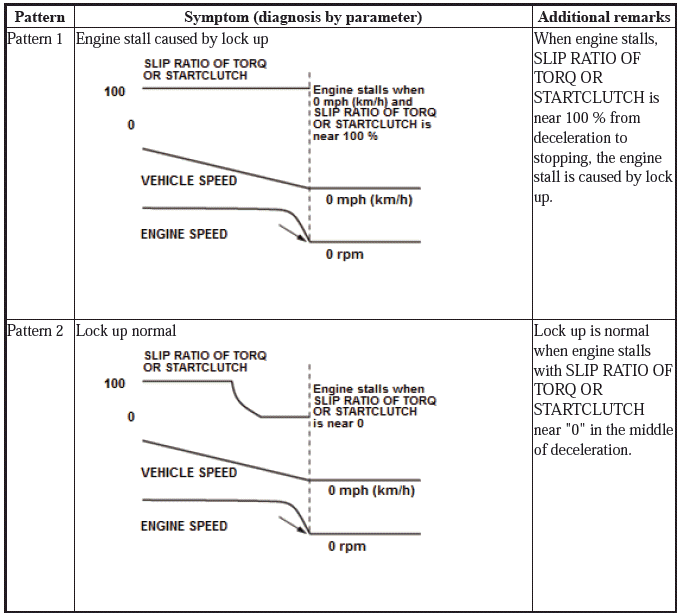

Which pattern is indicated?

Pattern 1

Go to the CVT systems symptom troubleshooting index for torque converter clutch does not disengage.

Pattern 2

Go to step 16 (fuel system troubleshooting).

16.Fuel pressure check.

  1. Do the fuel pressure test.

Is the fuel pressure OK?

YES

Go to step 17.

NO

Check for following parts:

  • Fuel pump circuit
  • Fuel pressure regulator - Refer to: Fuel Tank Unit Disassembly and Reassembly(2WD), or Fuel Tank Unit Disassembly and Reassembly(AWD)
  • Fuel filter - Refer to: Fuel Tank Unit Disassembly and Reassembly(2WD), or Fuel Tank Unit Disassembly and Reassembly(AWD)

17.Spark plug visual check.

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Remove the spark plugs.
  3. Check the condition of the spark plug electrodes.

NOTE: Make sure the spark plugs are the correct part number for the vehicle. If the plugs are aftermarket or they are not the correct part number, replace all of the plugs and retest.

Is the electrode damaged or wet?

  1. YES (wet)

Check the following conditions. If those conditions do not apply, go to step 18.

  • In very cold conditions, multiple very short trips can cause the spark plug to foul. If this is the case, drive the vehicle a longer distance and recheck.
  • Incorrect or poor quality fuel can cause a wet spark plug. Replace the fuel and recheck.

YES (damaged)

Replace the damaged spark plugs, determine the cause of the spark plug damage.

NO

Go to step 18.

18.Determine possible failure area (ignition system, others).

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Fit a spark plug to the ignition coil and ground it to the engine.
  3. Turn the vehicle to the ON mode.
  4. Select ALL INJECTORS STOP in the INSPECTION MENU with the HDS, and stop fuel injection from the injector.

ALL INJECTORS STOP

  1. Crank the engine and watch for spark at the spark plugs.

Do the spark plugs spark?

YES

The ignition system is OK. Select PCM reset in the PGM-FI INSPECTION MENU to cancel ALL INJECTORS STOP with the HDS, then go to step 20 (engine compression troubleshooting).

NO

Go to step 19.

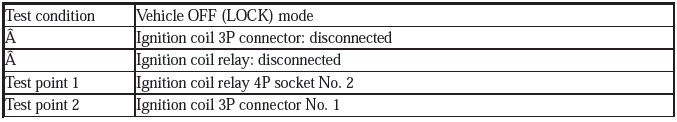

19.Ignition coil power circuit check.

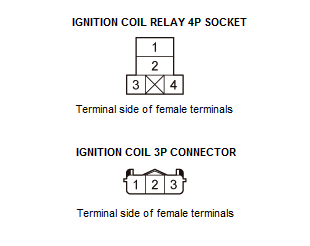

  1. Disconnect the following connector(s).

Ignition coil(s) 3P connector from the problem cylinder

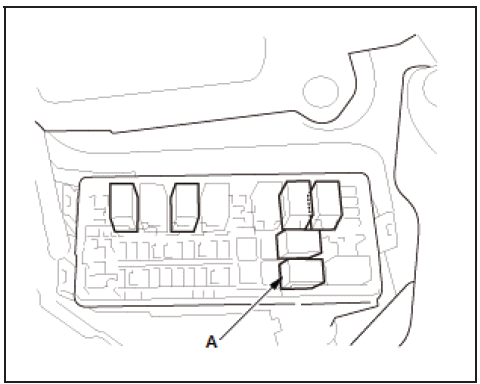

  1. Remove the ignition coil relay (A) from the under-hood fuse/relay box.

Fuel and Emissions - Testing & Troubleshooting

  1. Check for continuity between test points 1 and 2.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

Is there continuity?

YES

The ignition coil power circuit is OK. Replace the ignition coil(s).

NO

Repair an open in the IG1(IGN)/IG1(COIL)/IG COIL RLY OUT wire between the ignition coil relay and ignition coil.

20.Engine compression check.

  1. Do an engine compression inspection.

Is the engine compression OK?

YES

Go to step 21 (EVAP canister purge valve check).

NO

Check for wear or damage to these parts:

  • Incorrect valve clearance
  • Confirmation of cam timing
  • Oil pressure relief valve
  • Damage or worn cam lobes
  • Damage or worn valve and seats
  • Damage cylinder head gasket
  • Damage or worn piston rings
  • Damage or worn piston and cylinder bore

21.EVAP canister purge valve check.

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connector.

EVAP canister purge valve 2P connector

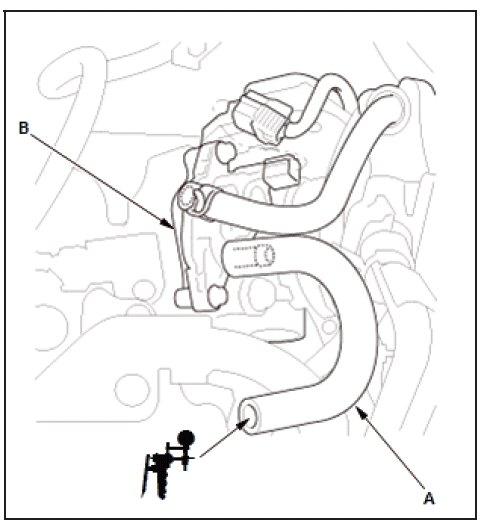

  1. Disconnect the vacuum hose (A) from the EVAP canister purge valve (B) in the engine compartment, and connect a vacuum pump/gauge, 0-30 inHg, to the purge valve.

Fuel and Emissions - Testing & Troubleshooting

  1. Start the engine.

Does the vacuum pump indicate vacuum?

YES

When the climate is warm, fuel vapor from the canister line to the fuel tank enters intake manifold, enriching mixture (excessively rich), causing the engine to stall in some cases. If needed, replace the EVAP canister purge valve.

NO (Reproducible failure)

Go to step 22 (fuse check).

NO (Intermittent failure)

Go to step 23 (relay check).

22.Fuse check.

  1. Check the following fuses.

Fuel and Emissions - Testing & Troubleshooting

Are the fuses OK?

YES

The fuses are OK. Go to step 23 (relay check).

NO

Replace the blown fuse(s).

23.Relay check.

  1. Test the following relays:

NOTE: In situations where the failure is difficult to reproduce, the following relays may have an intermittent failure.

  • PGM-FI main relay 1
  • PGM-FI main relay 2
  • ETCS control relay
  • Ignition coil relay

Are the relays OK?

YES

Go to step 24 (power and ground terminal check).

NO

Replace any damaged relays.

24.Power and ground terminal check.

  1. Check the corrosion and looseness at the following terminals:
    • 12 volt battery terminals
    • Ground cable terminals between the engine and the body ground, and the transmission and the body ground
    • Engine wire harness ground (G101)

Are the terminals OK?

YES

Go to step 25 (connector terminal check).

NO

Repair any terminal(s) as needed.

25.Connector terminal check.

  1. Check the foreign objects clogged and corrosion at the following connector terminals:
    • PCM connectors
  • FI MAIN RLY OUT, FI MAIN RLY CLVBDBW,
  • DBW RLY CLIG1(
  • F/PUMP), FUEL PUMP RLY CLPG,
  • PG(GND1), LG(GND2), PG2(GND3)
  • INJ 1, INJ 2, INJ 3, INJ 4
  • IGN01A, IGN02A, IGN03A, IGN04A
  • TDC
  • CRAKN
  • MAP(PB)
  • VGP, VGM
  • TW
  • PC SOL
  • E EGR, EGR L
  • MTR 1, MTR 2, THL1, THL2
  • CMP sensor
  • CKP sensor
  • Ignition coils
  • Injectors
  • ECT sensor
  • MAF sensor
  • MAP sensor
  • EGR valve
  • Throttle body
  • EVAP canister purge valve
  • Fuel tank unit

Are the terminals OK?

YES

Go to the diagnostic interview for engine stalls - Refer to: Fuel and Emissions Systems Symptom Troubleshooting - Engine stalls Diagnostic interview, or Fuel and Emissions Systems Symptom Troubleshooting - Hard to start engine Diagnostic interview.

NO

Repair any terminal(s) as needed.

    READ NEXT:

     Engine Will Not Start, Engine Starts But Stalls Immediately, Or Engine Is Hard To Start

    Special Tools Required Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available NOTE: Before beginning this troubleshooting, do a customer diagnostic interview - Refer t

     Hard To Start Engine Diagnostic Interview

    Hard-to start condition - Possible cause pattern chart from diagnostic interview FUEL CAP WARNING MESSAGE STAYS ON (MIL WORKS OK, NO DTCS SET) (KA/KC) Diagnostic procedure Do the troubleshooting pr

     Troubleshooting

    FUEL PUMP CIRCUIT TROUBLESHOOTING If you suspect a problem with the fuel pump, check that the fuel pump actually runs; when it is on, you will hear some noise if you listen to the fuel fill port with

    SEE MORE:

     Navigation System Description - Overview

    Basic Configuration The navigation system is a highly-sophisticated, hybrid locating system that uses satellites and a map database to show you where you are and to help guide you to a desired destination. The navigation system receives signals from the global positioning system (GPS), a network

     Driving Assistance Warning - Service Information

    REMOVAL INSTALLATION FCW OFF SWITCH REMOVAL, INSTALLATION, AND TEST Removal & Installation 1. Driver's Dashboard Lower Cover - Remove 2. FCW OFF Switch - Remove Remove the FCW OFF switch (A). 3. All Removed Parts - Install Install the parts in the reverse order of removal. Test 1. FCW OFF

    © 2019-2024 Copyright www.hohrv2.com
