Honda HR-V: Hard To Start Engine Diagnostic Interview

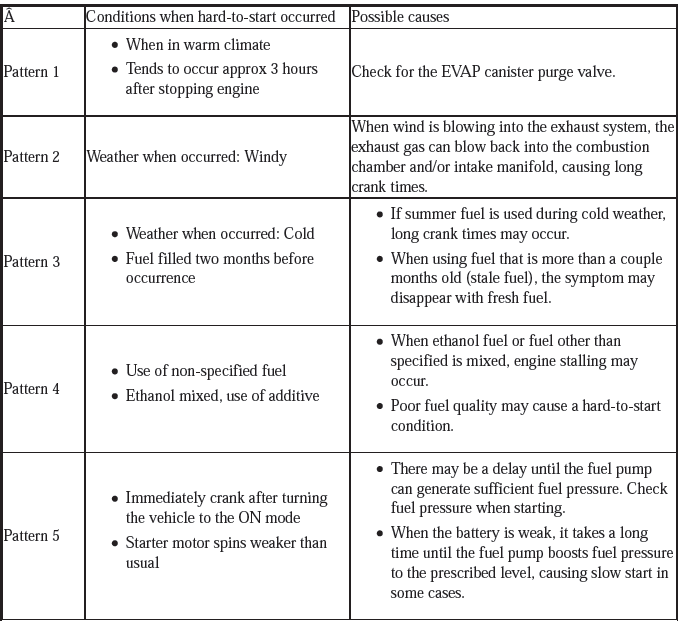

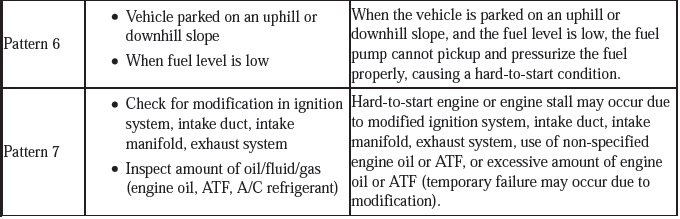

Hard-to start condition - Possible cause pattern chart from diagnostic
interview
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 29(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 30(4).png)
FUEL CAP WARNING MESSAGE STAYS ON (MIL WORKS OK, NO DTCS SET) (KA/KC)
Diagnostic procedure
Do the troubleshooting procedure for DTC P0455 and P0456, refer to
appropriate DTC. Fuel and Emissions
Systems DTC Troubleshooting Index (KA/KC)if the fuel cap warning message comes
on frequently, or if the
message does not go off after the fuel fill cap is tightened and the vehicle is
driven several days.
NOTE Fuel cap warning message is monitored during the engine off natural
vacuum (EONV) testing.
FUEL OVERFLOWS DURING REFUELING (NO DTCS SET) (KA/KC)
Diagnostic procedure
1. Refer to appropriate fuel tank removal procudure, Removal & Installation
Also check for
Malfunctioning gas station filling nozzle
Circuit Diagram

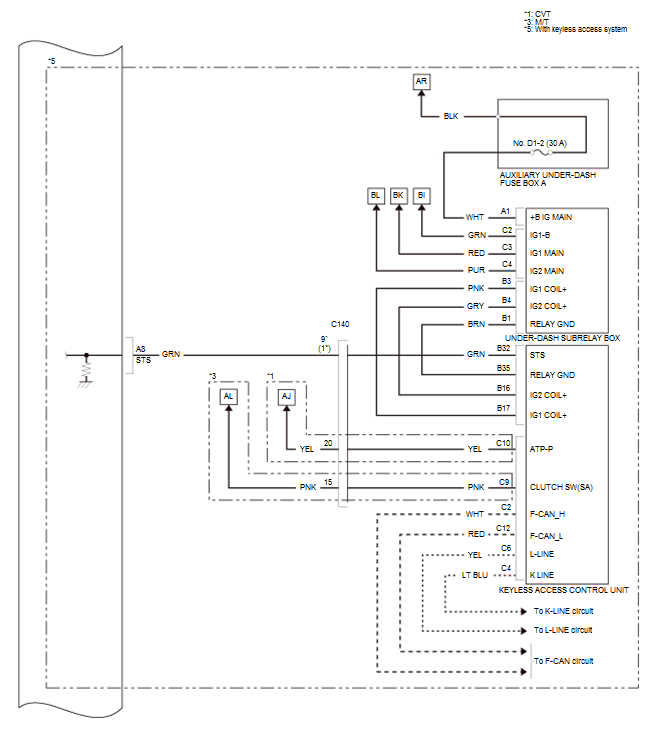

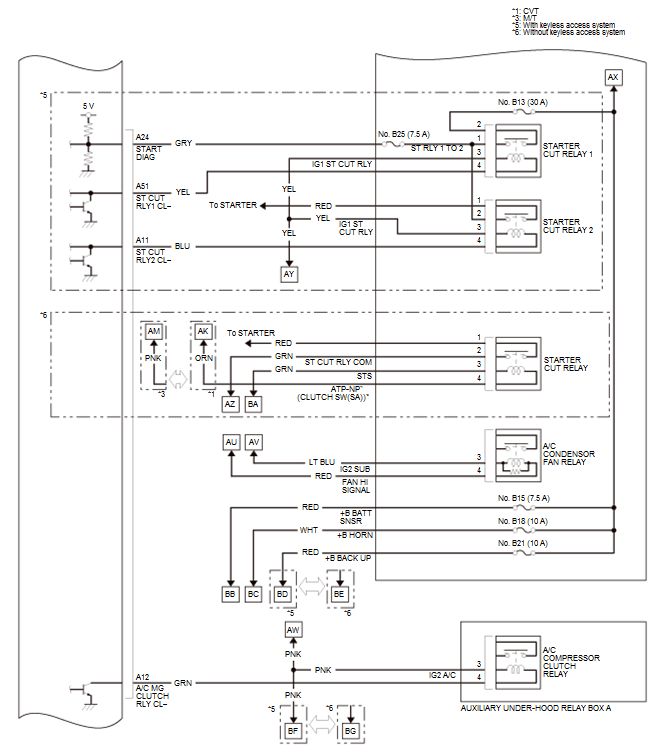

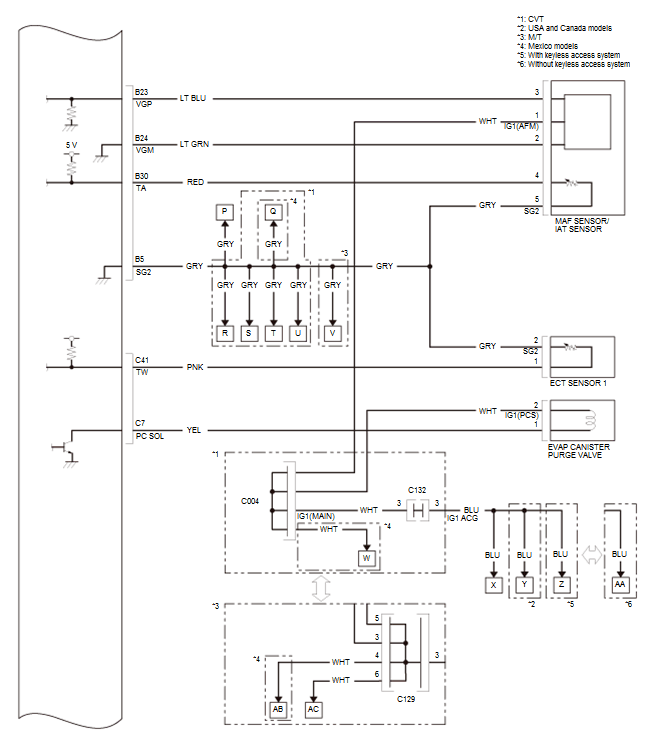

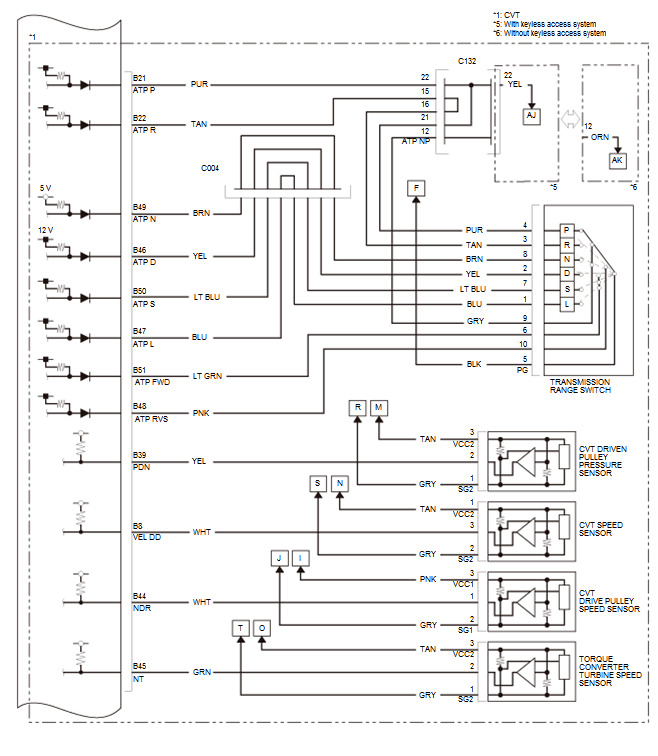

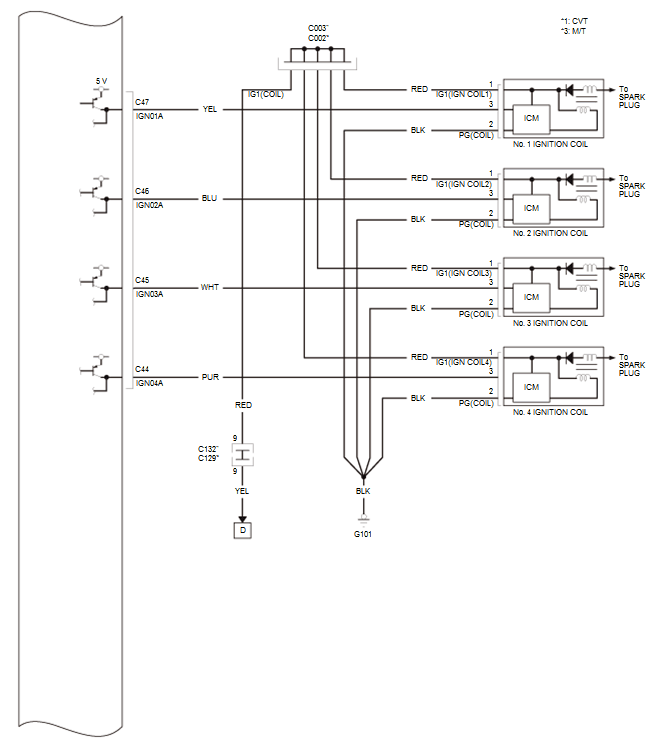

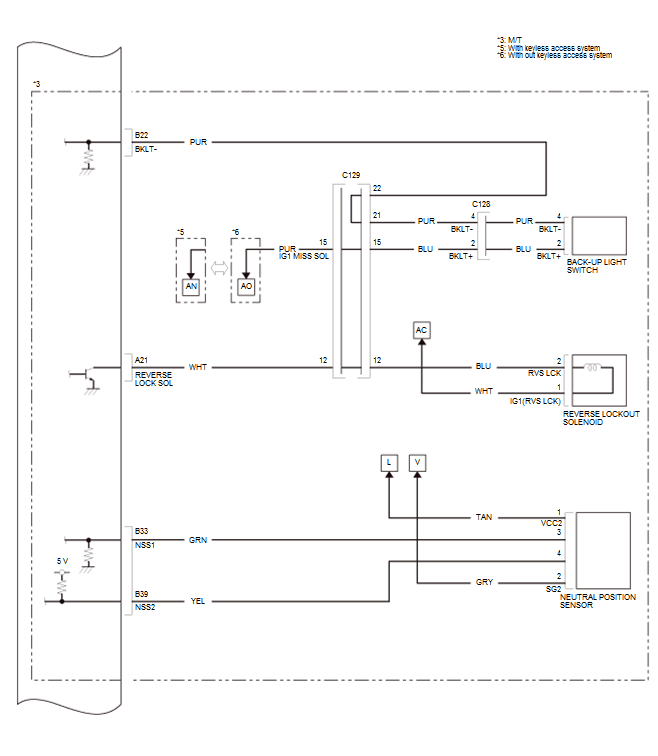

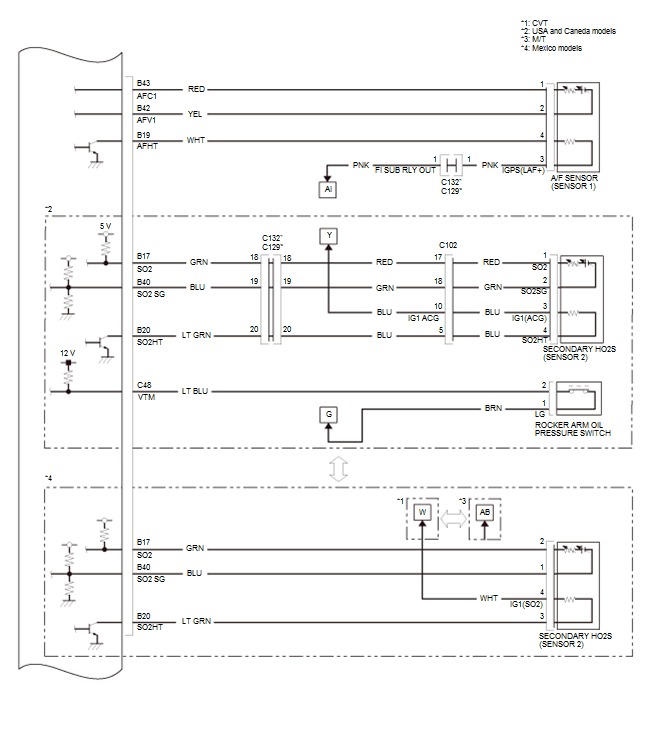

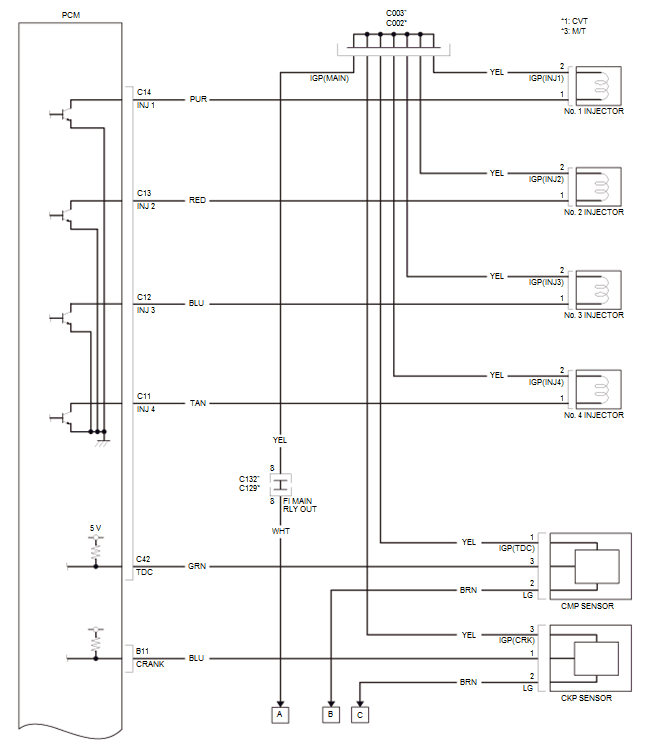

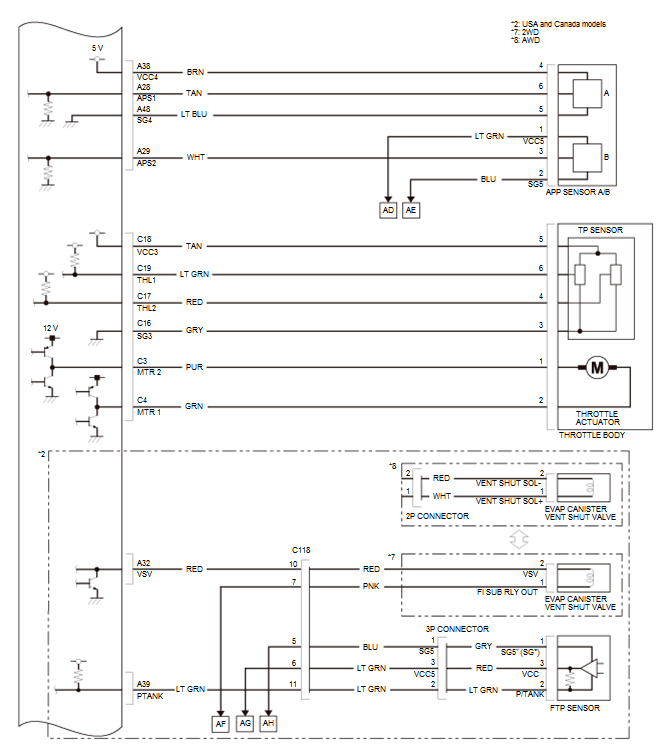

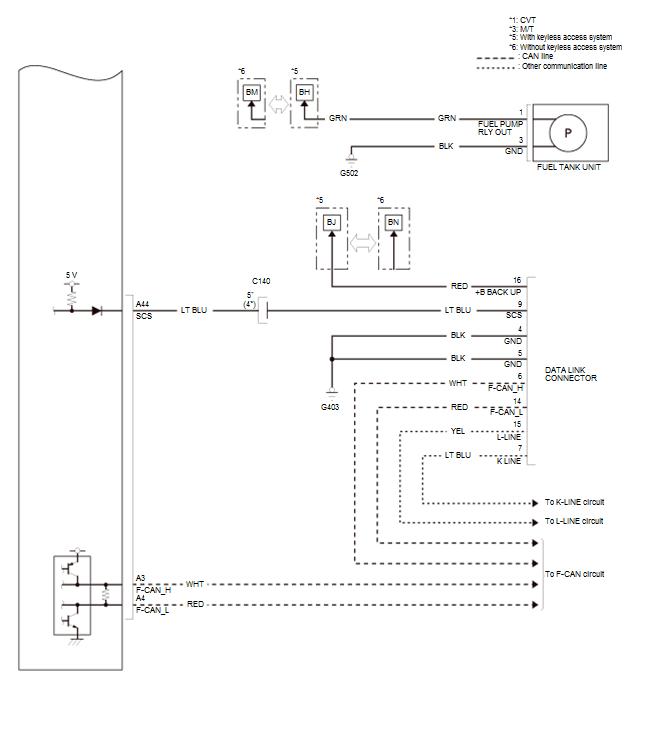

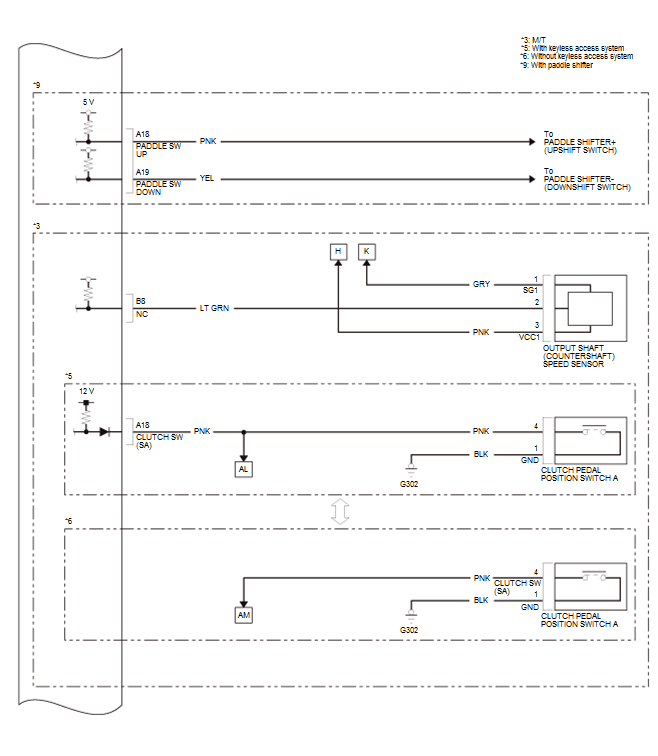

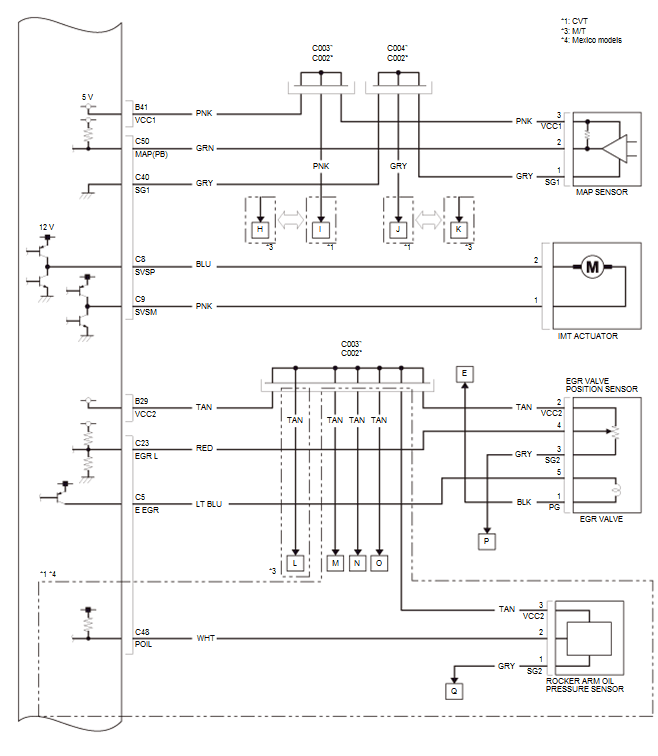

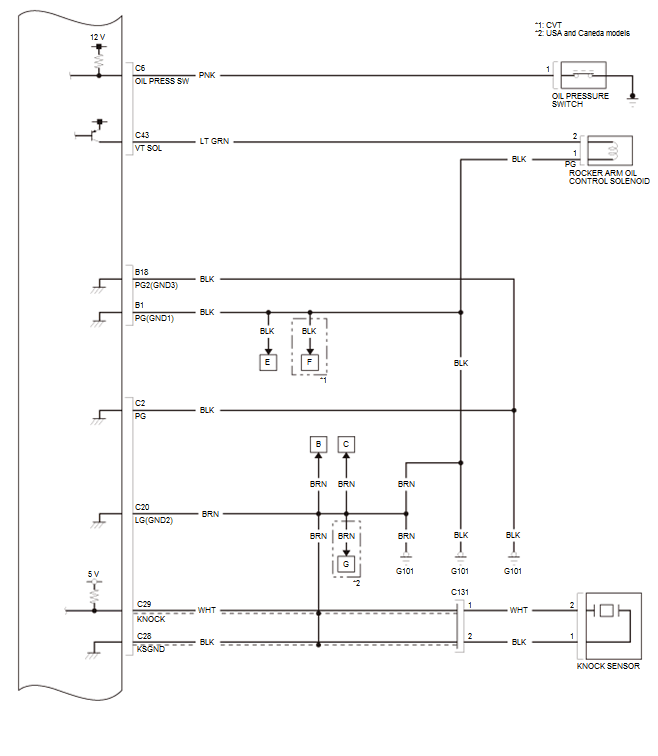

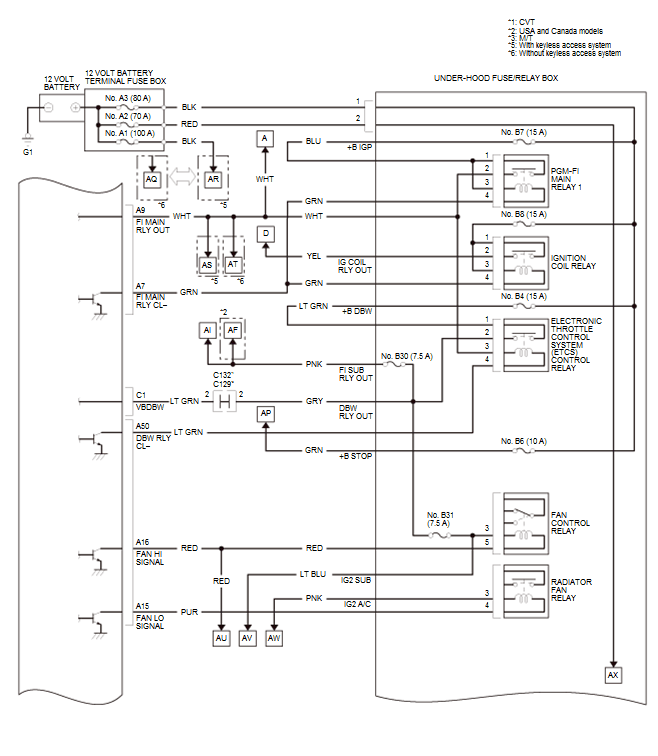

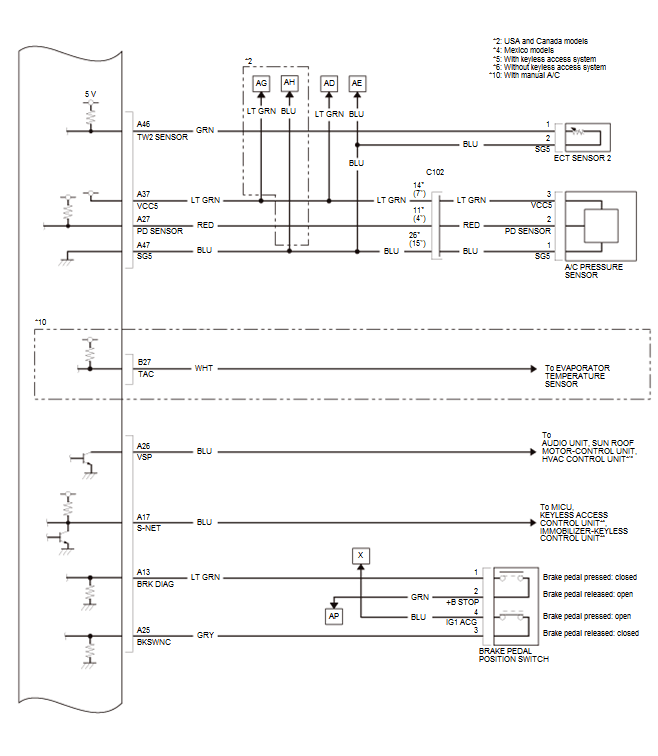

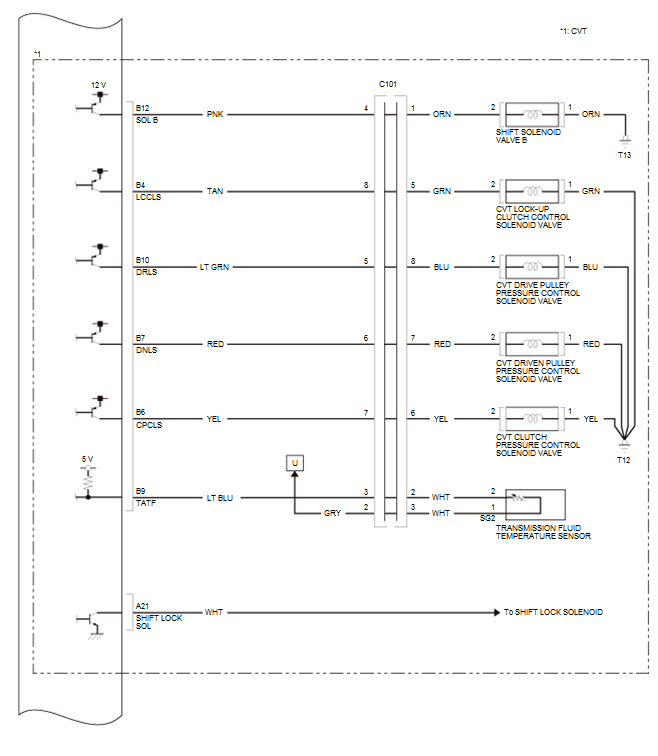

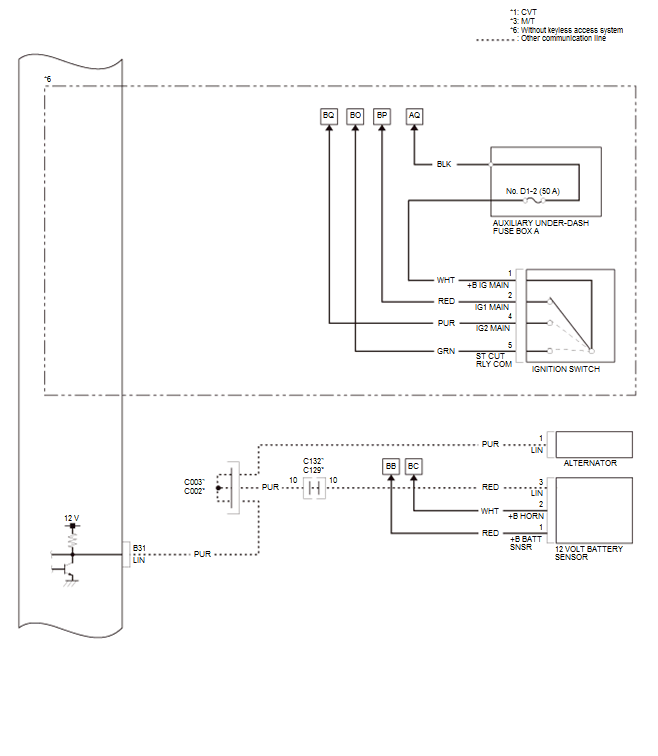

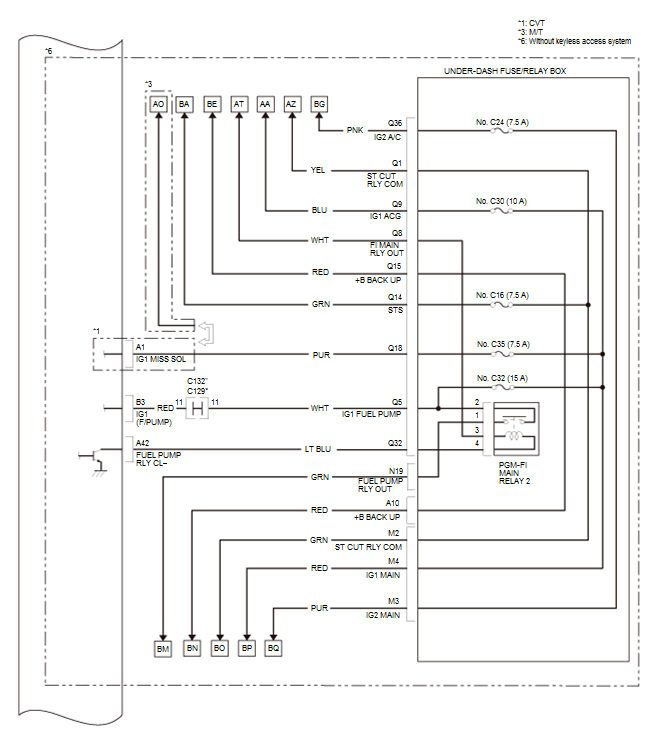

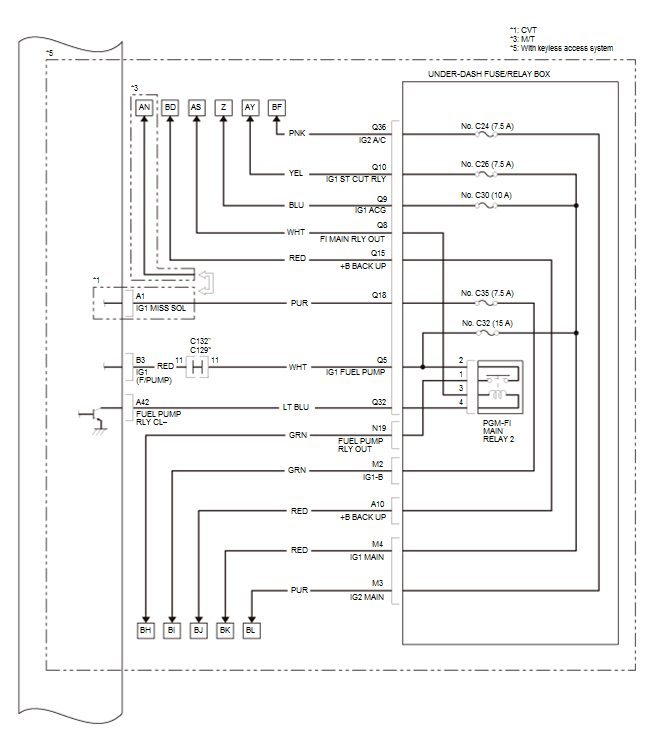

FUEL AND EMISSIONS SYSTEMS CIRCUIT DIAGRAM
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 31(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 32(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 33(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 34(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 35(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 36(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 37(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 38(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 39(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 40(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 41(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 42(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 44(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 45(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 46(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 47(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 48(4).png)
![Fuel and Emissions - Testing & Troubleshooting](images/books/1097/index 49(4).png)
