Honda HR-V: Exhaust System - Service Information

Honda HR-V (2015-2021) Service Manual / Engine / Exhaust System - Service Information

REMOVAL & INSTALLATION

EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION (KA/KC)

Removal and Installation

NOTE: Use new gaskets and new self-locking nuts when reassembling.

1. Exhaust Pipe and Muffler - Remove and Install

2WD

Exhaust System - Service Information

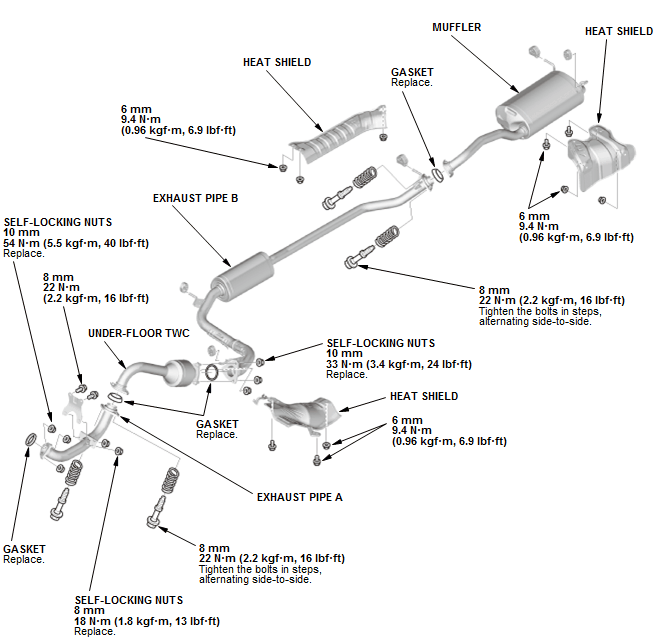

Fig. 1: Exploded View Of Exhaust Pipe and Muffler With Torque Specifications (2WD)

AWD

Exhaust System - Service Information

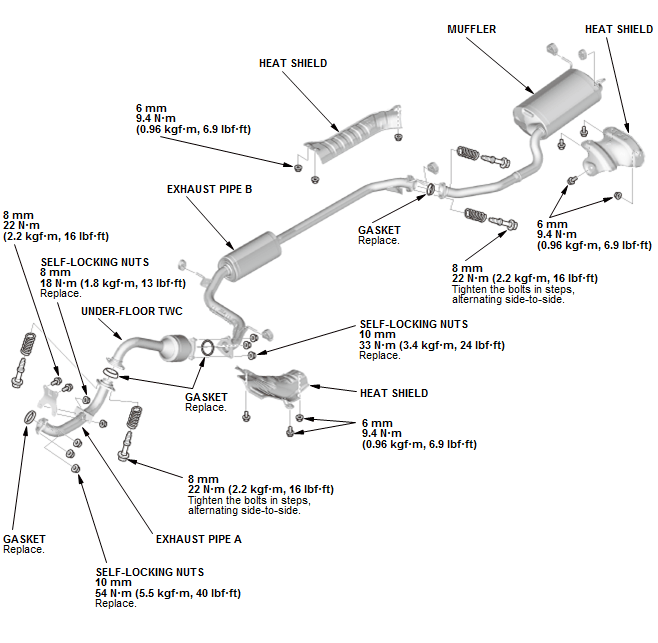

Fig. 2: Exploded View Of Exhaust Pipe and Muffler With Torque Specifications (AWD)

Exhaust System - Component Location

COMPONENT LOCATION INDEX

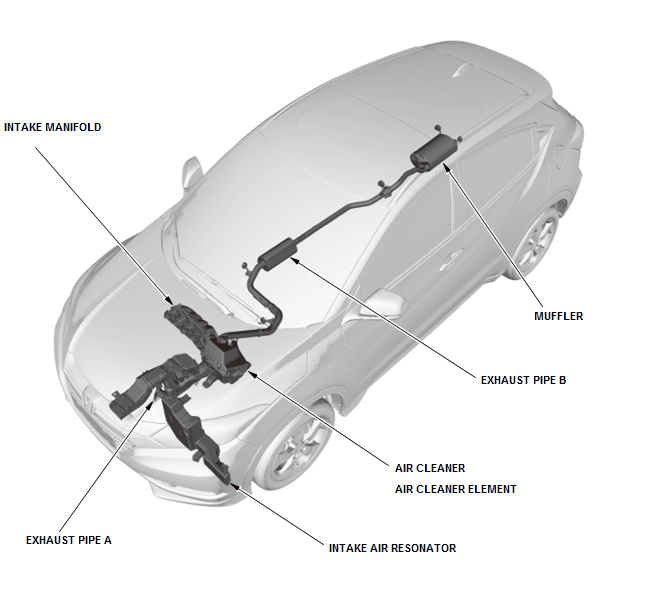

INTAKE AIR SYSTEM AND EXHAUST SYSTEM COMPONENT LOCATION INDEX

Exhaust System - Component Location
