Honda HR-V: Fuel Fill Pipe Removal and Installation (AWD)

Honda HR-V (2015-2021) Service Manual / Engine / Fuel and Emissions - Service Information / Fuel Fill Pipe Removal and Installation (AWD)

Removal and Installation

1. Fuel Pressure - Relieve

2. Fuel Tank - Drain

3. Fuel Cap Adapter - Remove

4. Rear Axle Beam - Remove - Refer to: Rear Axle Beam Removal and Installation (2WD), or Rear Axle Beam Removal and Installation (AWD)

5. Filler Neck Tube and Suction Tube - Disconnect

Fuel and Emissions - Service Information

  1. Remove the front center member.

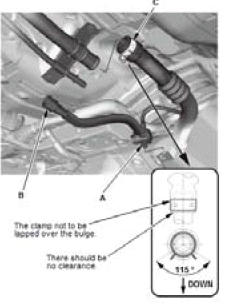

  2. Remove the suction joint clip (A).
  3. Disconnect the fuel line quick-connect fitting (B).
  4. Disconnect the filler neck tube (C) from the fuel fill pipe. When you disconnect the tube, slide back the clamp, then twist the tube as you pull to avoid damaging it.

6. Rear Inner Fender (Left Side) - Remove - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation

7. Fuel Fill Pipe - Remove

Fuel and Emissions - Service Information

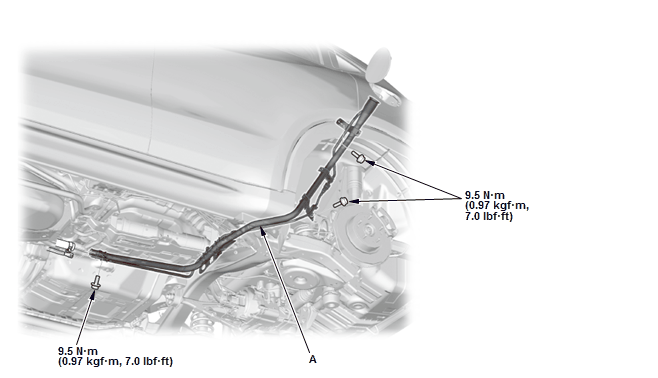

  1. Remove the fuel pipe (A).

Fuel and Emissions - Service Information

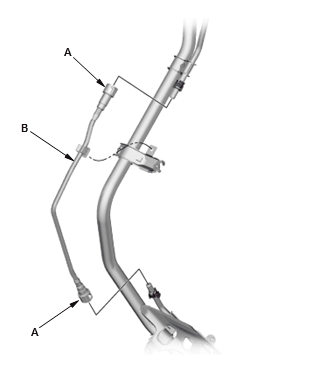

  1. Disconnect the quick-connect fittings (A), then remove the one way valve tube (B) if needed.

8. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

9. Wheel Alignment - Check
