Honda HR-V: Fuel Fill Pipe Removal and Installation (KA/KC)
Removal and Installation
1. Fuel Pressure - Relieve
2. Fuel Tank - Drain
3. Fuel Cap Adapter - Remove
4. Front Floor Undercover - Remove - Refer to: Rear Floor Undercover Removal
and Installation
(2WD), or Front Floor Undercover Removal and Installation (2WD)
5. Performance Rod - Remove
6. Filler Neck Tube and Suction Tube - Disconnect
.png)

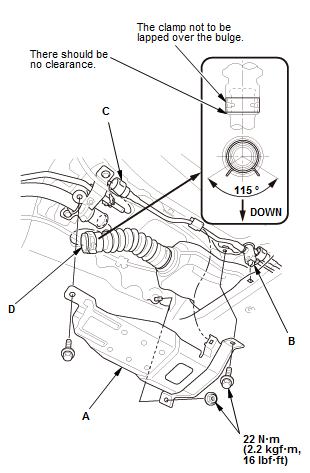

Fig. 1: Fuel Filler Neck Cover With Torque Specifications
- Remove the fuel filler neck cover (A).
- Remove the suction joint clip (B).
- Disconnect the fuel line quick-connect fitting (C).
- Disconnect the filler neck tube (D) from the fuel fill pipe. When you
disconnect the tube, slide back
the clamp, then twist the tube as you pull to avoid damaging it.
7. Rear Inner Fender (Left Side)- Remove - Refer to: Front Inner Fender
Removal and Installation, or
Rear Inner Fender Removal and Installation
8. Fuel Fill Pipe - Remove

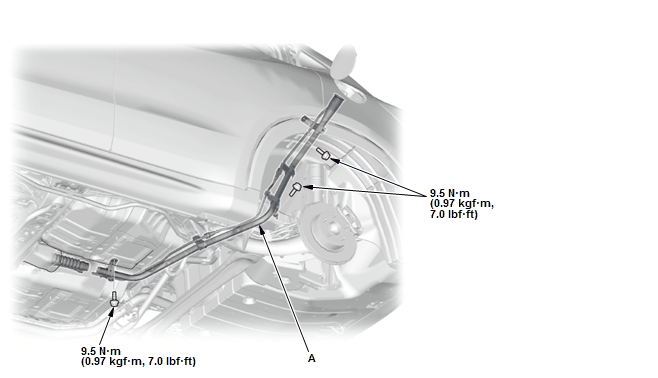

.png)
- Remove the
fuel pipe (A).

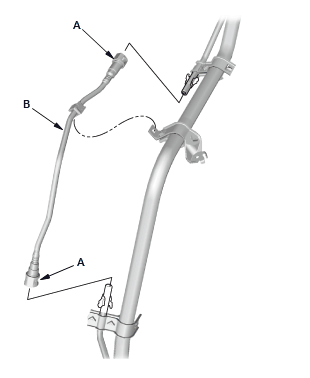

.png)
- Disconnect the quick-connect fittings (A), then remove the one
way valve tube (B) if needed.
9. All Removed Parts - Install
- Install the parts in the reverse order of removal.
