Honda HR-V: Front Grille Stay Removal and Installation
Removal & Installation
1. Front Grille Cover - Remove

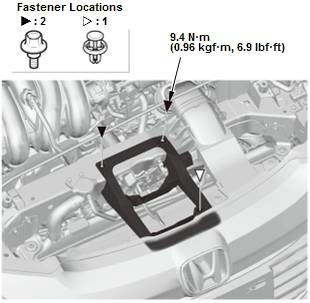

2. Front Grille Center Stay - Remove
.png)

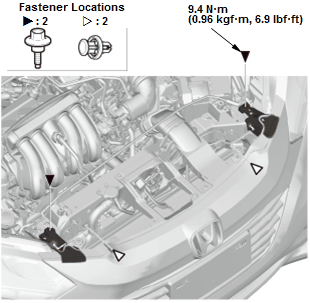

3. Front Grille Side Stay - Remove
.png)
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT INNER FENDER REMOVAL AND INSTALLATION
Removal & Installation
1. Front Splash Guard - Remove (For Some Models) - Refer to: Rear Splash
Guard Removal and
Installation, or Front Splash Guard Removal and Installation

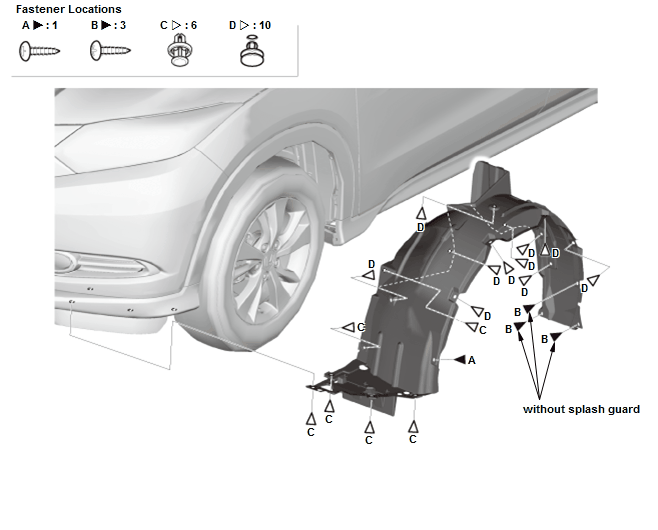

2. Front Inner Fender - Remove
.png)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT SPLASH GUARD REMOVAL AND INSTALLATION
Removal & Installation
1. Front Splash Guard - Remove
.png)

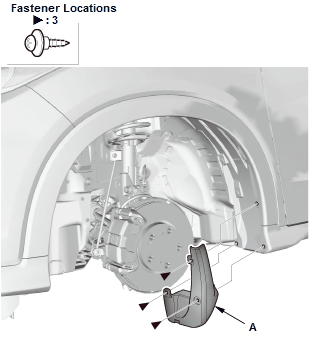

- Remove the front splash guard (A).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT WHEEL ARCH PROTECTOR REMOVAL AND INSTALLATION
Removal & Installation
1. Front Wheel Arch Protector - Remove
.png)

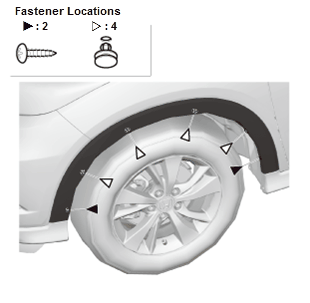

- Remove the screws and clips.
.png)

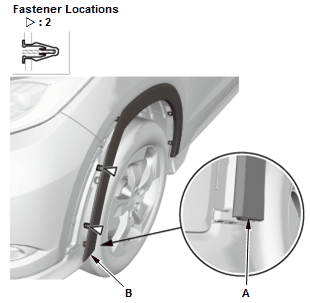

- Release the hooks (A) and clips from the front side of the front
wheel arch protector (B).
.png)

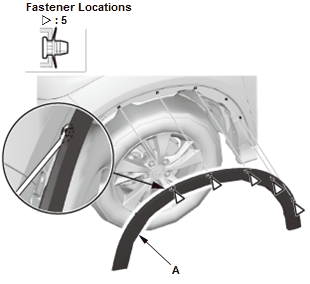

- Carefully pry out the clip portions of the front wheel arch protector
(A)
with the trim tool to detach the clips, then remove it.
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
READ NEXT:
Removal & Installation
1. Rear Inner Fender - Remove (Left Side) - Refer to: Front Inner Fender
Removal and Installation, or
Rear Inner Fender Removal and Installation
2. Fuel Cap Adapter - Remov
Removal & Installation
1. Driver's Kick Panel - Remove - Refer to: Interior Trim Removal and
Installation - Door Areas, or
Interior Trim Removal and Installation - Tailgate Areas, or Interior Tri
Removal & Installation
1. Hood Insulator - Remove
2. All Removed Parts - Install
Install the parts in the reverse order of removal.
HOOD LATCH REMOVAL AND INSTALLATION
Removal & Installati
