Honda HR-V: Front Seat Belt Buckle Removal and Installation

Honda HR-V (2015-2021) Service Manual / Restraints / Seat Belts - Service Information / Front Seat Belt Buckle Removal and Installation

Removal and Installation

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat Belt Buckle - Remove

Seat Belts - Service Information

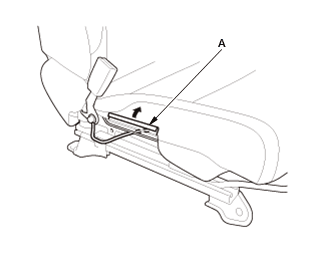

  1. Release the hook strip (A), and pull back the seat cushion cover.

Driver's seat

Seat Belts - Service Information

Passenger's side

Seat Belts - Service Information

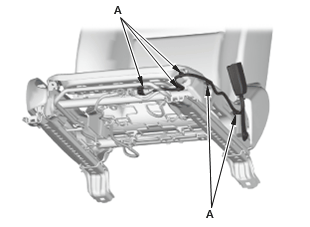

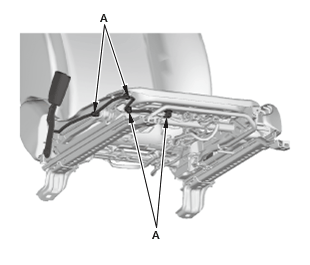

  1. Remove the harness clips (A).

Seat Belts - Service Information

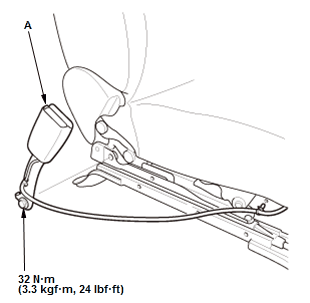

Fig. 1: Front Seat Belt Buckle With Torque Specifications

  1. Remove the front seat belt buckle (A).

3. All Removed Parts - Install

Seat Belts - Service Information

  1. Install the parts in the reverse order of removal.

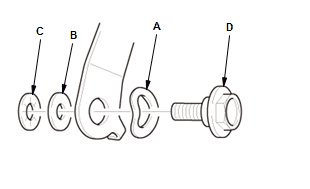

    NOTE: Assemble the wave washer (A), the collar (B), and the toothed lock washer (C) on the seat belt buckle bolt (D) as shown.
