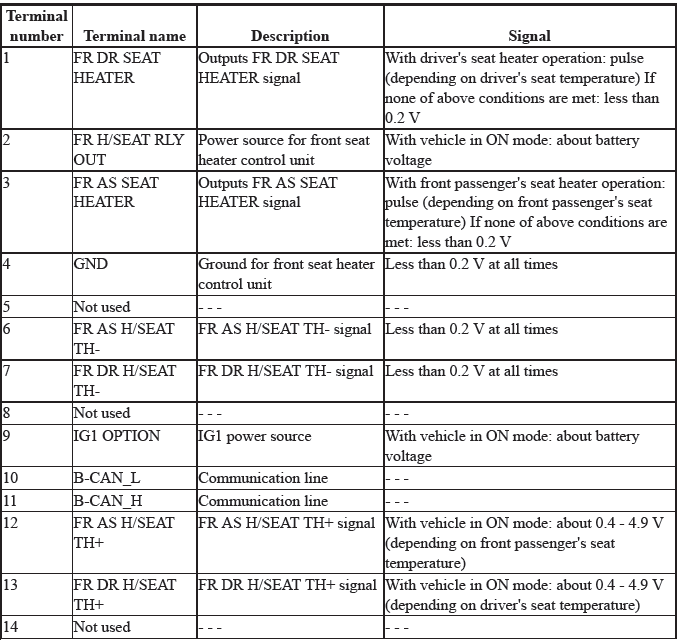

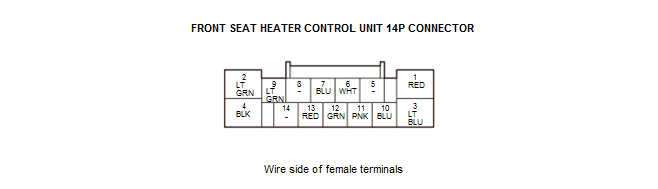

Honda HR-V: Front Seat Heater Control Unit Connector For Inputs And Outputs


		.png)
.png)
REAR SEAT CUSHION DISASSEMBLY AND REASSEMBLY
Disassembly & Reassembly
1. Rear Seat Cushion - Remove
2. Rear Seat Recline Cover - Remove
.png)

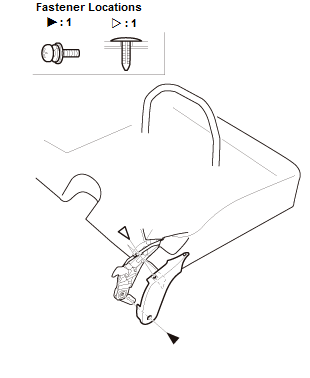

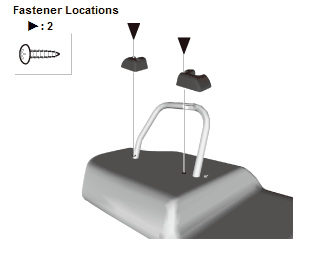

3. Rear Seat Hinge Cover -Remove
.png)
4. Rear Seat Cushion Pad/Frame - Remove
.png)

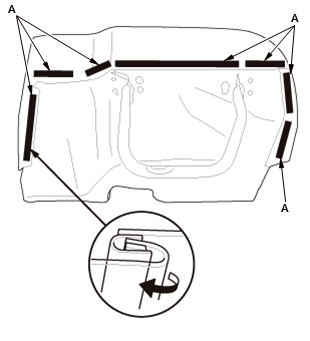

	- Remove the hooks (A).
.png)

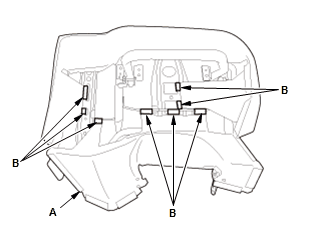

	- Turn over the cushion cover (A), release the hooks
	(B).
.png)

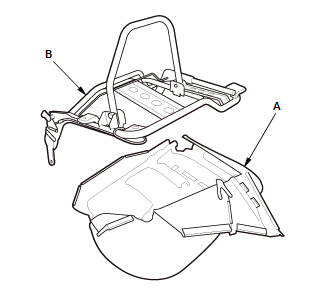

	- Separate the rear seat cushion pad (A) and the rear seat
	cushion frame (B).
5. Rear Seat Cushion Cover - Remove
TYPE1
.png)
TYPE2
.png)

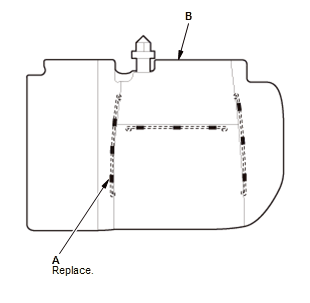

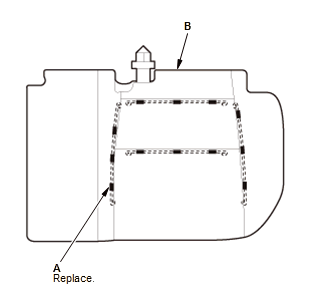

	- Remove the upholstery rings (A) securing the rear seat
	cushion cover (B).
6. Rear Seat Cushion Control Cable - Remove
.png)

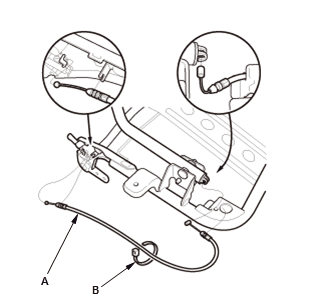

	- Disconnect the control cable (A)
- Release the wire tie (B), remove the control cable.
7. Foot Pipe - Remove
.png)

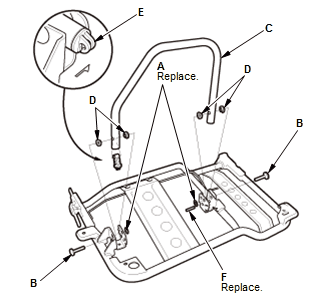

	- Release the push nuts (A), then remove the set pins (B)
- Remove the foot pipe (C)
- If necessary, remove the bushings (D), the cable hook (E), and
	the spring pin (F).
8. All Removed Parts - Reassemble
.png)
	- Reassemble the parts in the reverse order of removal.
	NOTE :

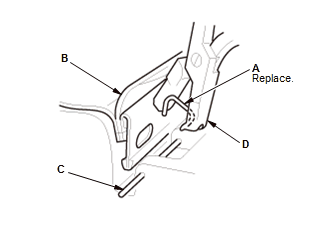

		- Replace all of the upholstery rings (A) fastening the rear seat
		cushion cover (B) to the pad wires (C) with new ones using
		commercially available upholstery ring pliers (D).
- Replace the push nut (E) and the spring pin (F) with new one.

.png)

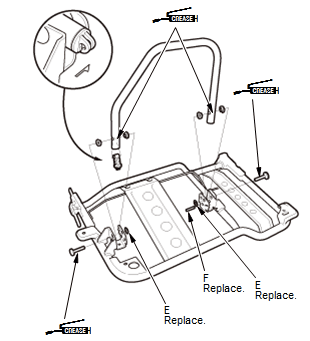

		- Apply multipurpose grease to each location indicated by the
		arrows.
