Honda HR-V: Fuel and Emissions Systems Symptom Troubleshooting Index (KA/KC)

Honda HR-V (2015-2021) Service Manual / Engine / Fuel and Emissions - Testing & Troubleshooting / Symptom Troubleshooting / Fuel and Emissions Systems Symptom Troubleshooting Index (KA/KC)

Symptom Troubleshooting Index

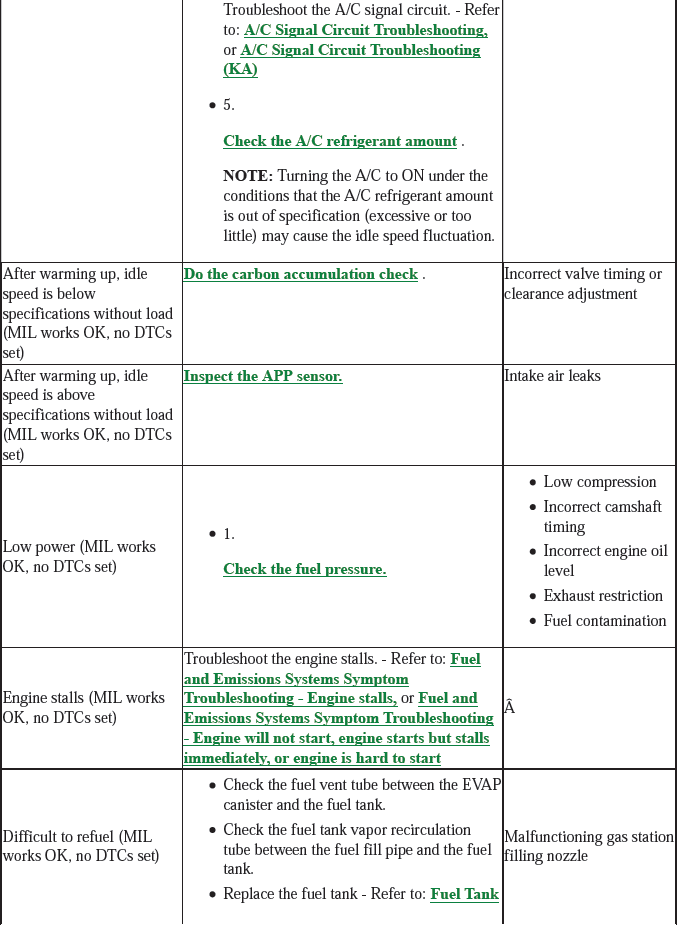

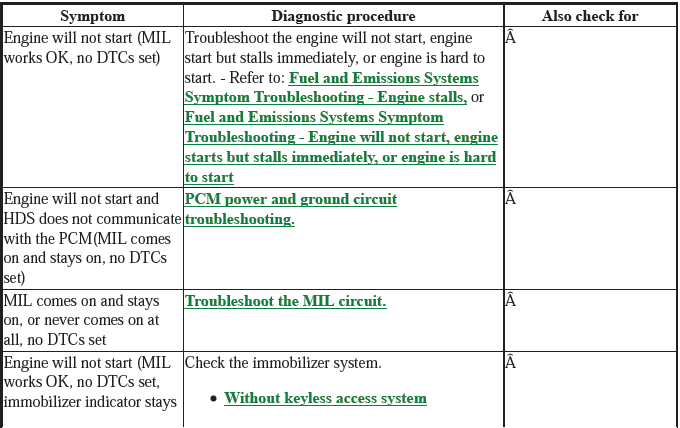

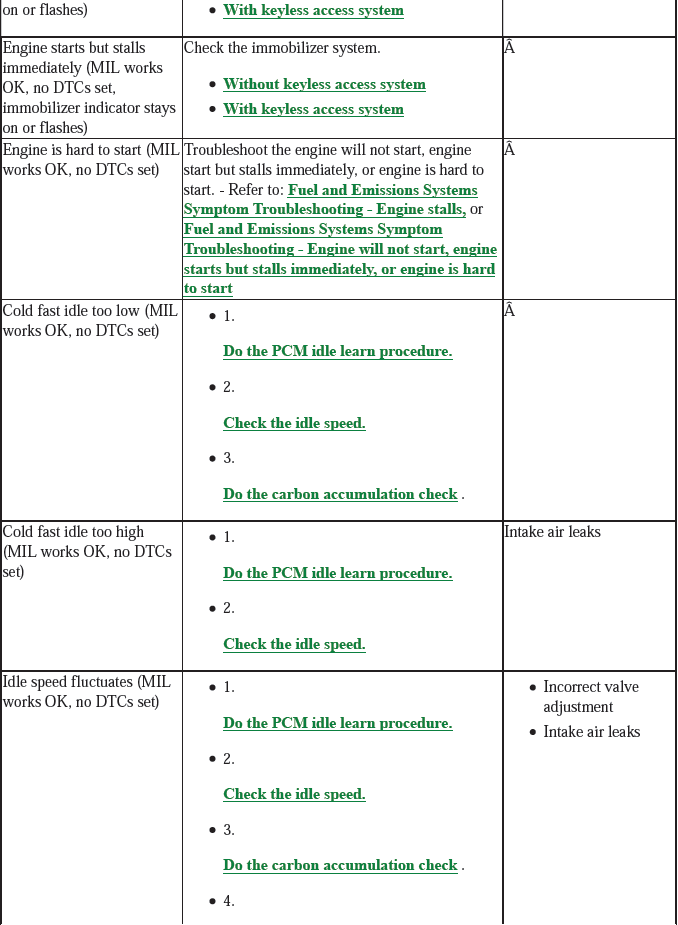

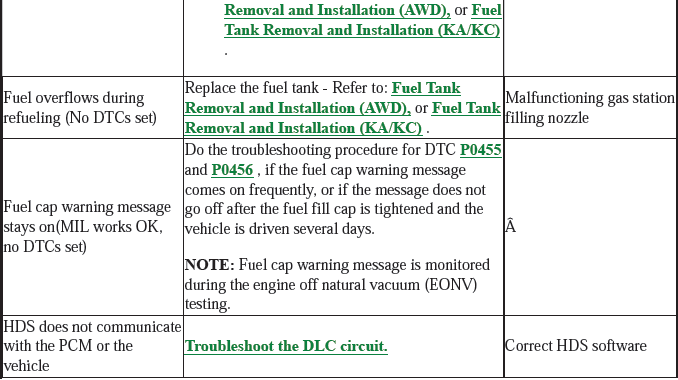

When the vehicle has one of these symptoms, check for a diagnostic trouble code (DTC) with the HDS. If there is no DTC, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

ENGINE STALLS DIAGNOSTIC INTERVIEW

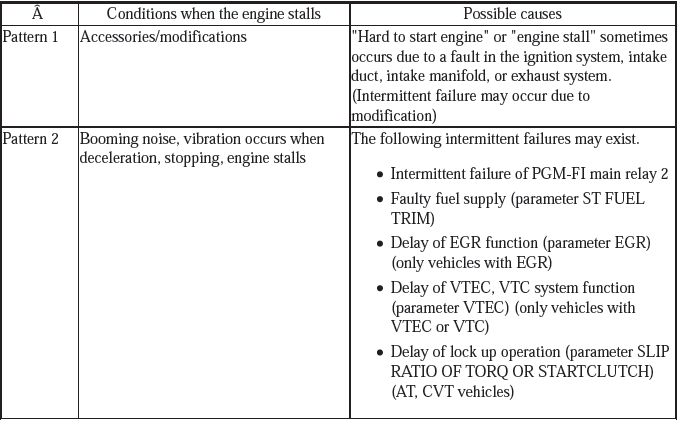

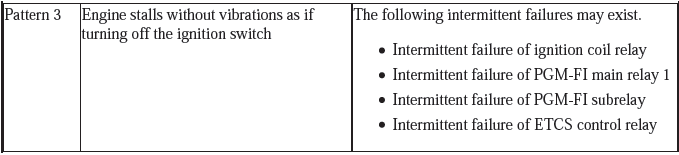

Engine stalls condition - Possible cause pattern chart from diagnostic interview

Fuel and Emissions - Testing & Troubleshooting

Fuel and Emissions - Testing & Troubleshooting

    READ NEXT:

     Engine Stalls

    Special Tools Required Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available NOTE: Before beginning this troubleshooting, do a customer diagnostic interview - Refer t

     Engine Will Not Start, Engine Starts But Stalls Immediately, Or Engine Is Hard To Start

    Special Tools Required Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available NOTE: Before beginning this troubleshooting, do a customer diagnostic interview - Refer t

     Hard To Start Engine Diagnostic Interview

    Hard-to start condition - Possible cause pattern chart from diagnostic interview FUEL CAP WARNING MESSAGE STAYS ON (MIL WORKS OK, NO DTCS SET) (KA/KC) Diagnostic procedure Do the troubleshooting pr
