Honda HR-V: Fuel Line/Quick-Connect Fitting Removal and Installation (KA/KC)

Honda HR-V (2015-2021) Service Manual / Engine / Fuel and Emissions - Service Information / Fuel Line/Quick-Connect Fitting Removal and Installation (KA/KC)

Removal

NOTE: Before you work on the fuel lines and fittings, read the Fuel Line/Quick-Connect Fitting Precautions.

1. Fuel Line/Quick-Connect Fitting - Remove

Fuel and Emissions - Service Information

  1. If equipped, remove the quick-connect fitting cover

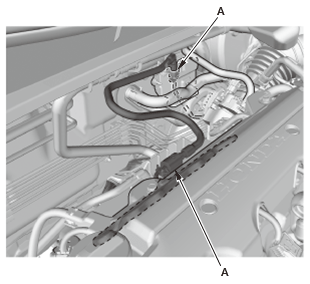

  2. Check the fuel quick-connect fittings (A) for dirt, and clean it if needed.

Fuel and Emissions - Service Information

  1. Place a rag or shop towel over the quick-connect fitting

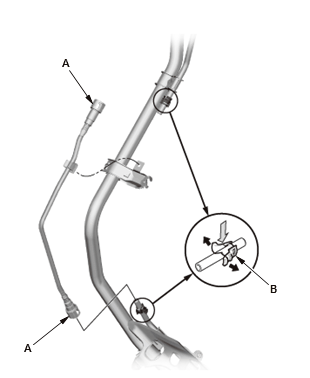

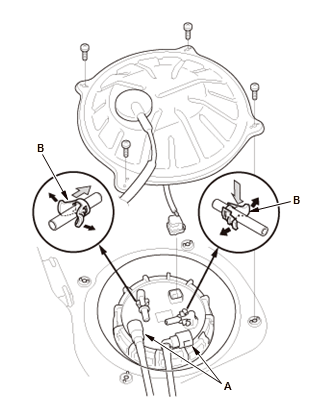

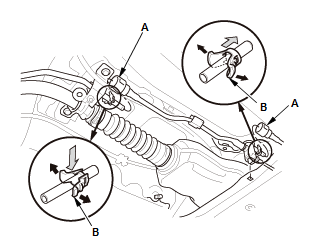

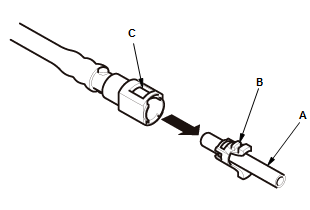

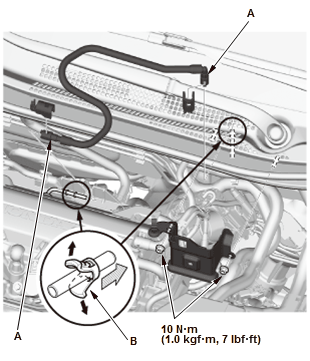

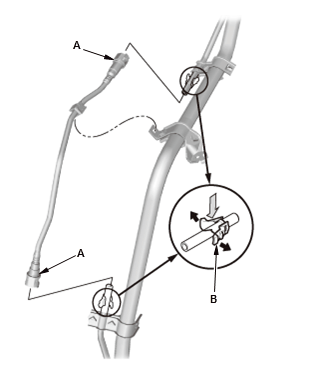

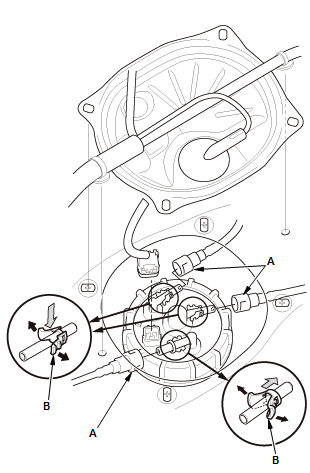

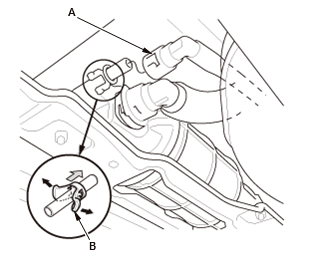

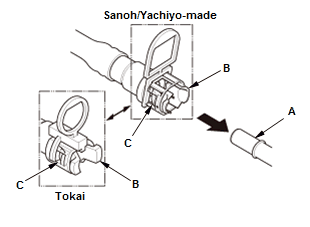

  2. Hold the connector (A) with one hand, and squeeze the retainer tabs (B) with the other hand to release them from the locking tabs (C)
  3. Pull the connector off.
    NOTE:
    • Be careful not to damage the line (D) or other parts. Do not use tools.
    • If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
    • Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.

Fuel and Emissions - Service Information

  1. Check the contact area (A) of the line (B) for dirt or damage.
    • If it is dirty, clean it.
    • If it is rusty or damaged, replace the fuel pump, fuel filter, or fuel feed line.

Fuel and Emissions - Service Information

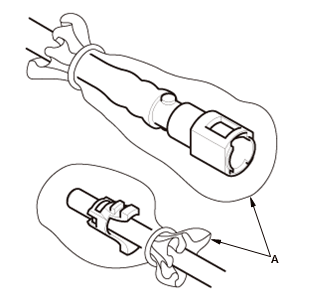

  1. To prevent damage and keep foreign matter out, cover the disconnected connector and line ends with plastic bags (A).
    NOTE:
    • The retainer cannot be reused once it has been removed from the line.
    • Replace the retainer when:
      • Replacing the fuel feed line.
      • Replacing the fuel tank unit.
      • It has been removed from the line.
      • It is damaged.

Installation

NOTE: Before you work on the fuel lines and fittings, read the Fuel Line/Quick-Connect Fitting Precautions

1. Fuel Line/Quick-Connect Fitting - Install

Fuel and Emissions - Service Information

  1. Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

Fuel and Emissions - Service Information

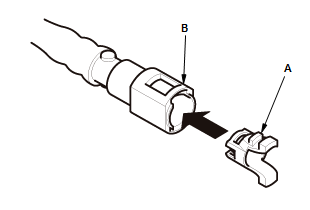

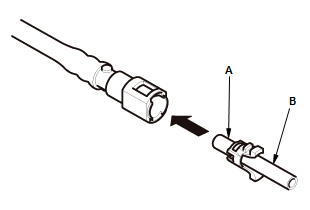

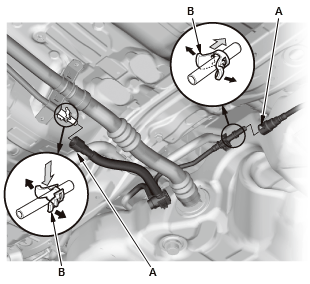

  1. Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
    • replacing the fuel feed line.
    • replacing the fuel tank unit.
    • removing the retainer from the line.

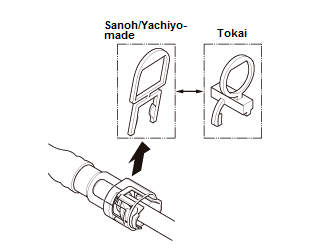

    NOTE: Use the same manufacturer retainer and the same size retainer when the replacing the retainer.

Fuel and Emissions - Service Information

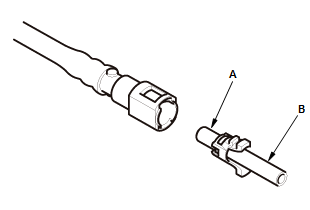

  1. Before connecting a new fuel line/quick-connect fittings (A), remove the old retainer (B) from the mating line.

2WD

Fuel and Emissions - Service Information

AWD

Fuel and Emissions - Service Information

2WD

Fuel and Emissions - Service Information

AWD

Fuel and Emissions - Service Information

2WD

Fuel and Emissions - Service Information

AWD

Fuel and Emissions - Service Information

2WD

Fuel and Emissions - Service Information

AWD

Fuel and Emissions - Service Information

Connection with new retainer

Fuel and Emissions - Service Information

Reconnection to existing retainer

Fuel and Emissions - Service Information

Connection to new fuel line

Fuel and Emissions - Service Information

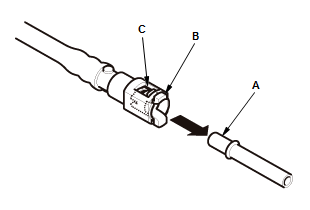

  1. Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the connector grooves (C)
  2. Press the quick-connect fittings onto the line until both retainer tabs lock with a clicking sound.
    NOTE: If it is hard to connect, put a small amount of new engine oil on the line end.

Reconnection to existing retainer

Fuel and Emissions - Service Information

Connection to new fuel line

Fuel and Emissions - Service Information

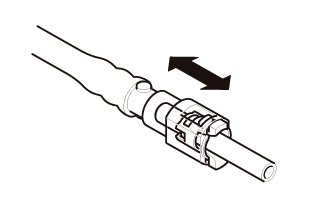

  1. When you reconnect the connector with the old retainer, make sure the connection is secure and the tabs are firmly locked into place; check visually and also by pulling the connector
  2. When you replace the fuel line with a new one, make sure you remove the ring pull upwards after you confirm the connection is secure
    NOTE: Before you remove the ring pull, make sure the fuel line connection is secure. If the connection is not secure, the ring pull could break when you try to remove it
  3. Reconnect the negative cable to the 12 volt battery, and turn the vehicle to the ON mode, but do not start the engine
  4. The fuel pump will run for about 2 seconds, and fuel pressure will rise. Repeat this two or three times, and check that there is no leakage in the fuel supply system

Fuel and Emissions - Service Information

  1. If equipped, install the quick-connect fitting cover. Set the groove of the cover on the fuel line as shown, then install it. Make sure the cover is firmly locked in place.
