Honda HR-V: Fuses

Fuse Locations

If any electrical devices are not working, turn the ignition switch to LOCK (0)*1 and check to see if any applicable fuse is blown.

■ Engine Compartment Fuse Box

■ Fuse box A

Located near the brake fluid reservoir. Push the tabs to open the box.

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Fuses

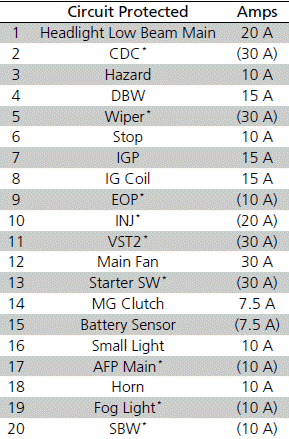

■ Circuit protected and fuse rating

Fuses


Fuses


■ Fuse box B

Pull up the cover on the + terminal, then remove it while pulling out the tab as shown.

Replacement of engine compartment fuses should be done by a dealer.

Fuses


Fuses


Fuses

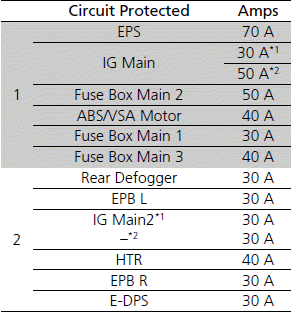

■ Circuit protected and fuse rating

Fuses


■Interior Fuse Boxes

■ Fuse box A

Fuses


Located behind the instrument panel.

Fuse locations are shown on the label under the steering column.

Locate the fuse in question by the fuse number and label number.

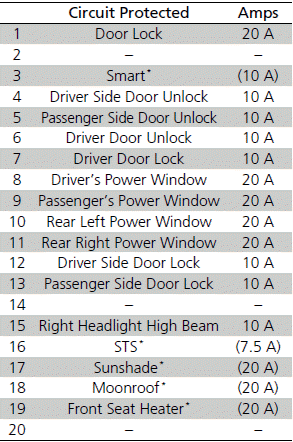

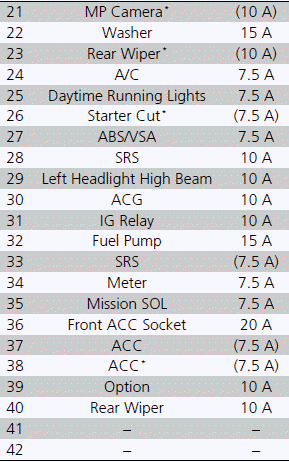

■ Circuit protected and fuse rating

Fuses


Fuses


■ Fuse box B

Fuses


Fuses


Remove the cover by putting the flat-tip screwdriver into the side slot as shown.

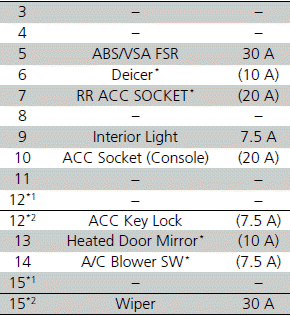

■ Circuit protected and fuse rating

Fuses


Fuses


*1:Models with smart entry system *2:Models without smart entry system

Inspecting and Changing Fuses

1. Turn the ignition switch to LOCK (0)*1. Turn headlights and all accessories off.

2. Check the fuses on the battery in the engine compartment.

  • If the fuse is blown, have it replaced by a dealer.

Fuses


3. Remove the fuse box cover.

4. Inspect the small fuses in the engine compartment and the vehicle interior.

  • If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.

Fuses


5. Check the large fuse in the vehicle interior.

  • If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.

Fuses


NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.

Replace fuse with a new one of the same specified amperage.

Confirm the specified amperage using the charts on Fuse Locations.

There is a fuse puller on the back of the engine compartment fuse box cover.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
