Honda HR-V: HFL Switch Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Testing & Troubleshooting / Testing / HFL Switch Test

Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove

2. Lower Garnish Assembly - Remove

3. HFL Switch - Test

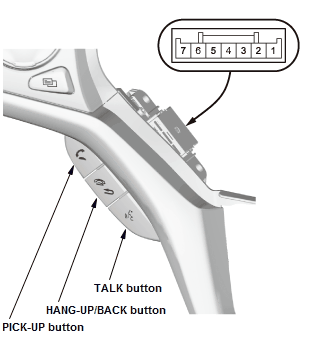

Three Buttons Type

Audio Visual Systems - Testing & Troubleshooting

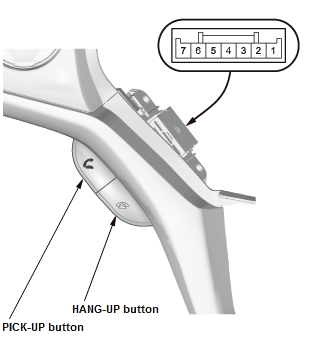

Two Buttons Type

Audio Visual Systems - Testing & Troubleshooting

  1. Measure the resistance between terminals No. 3 and No. 5 in each switch position according to the table.

Three Buttons Type

Audio Visual Systems - Testing & Troubleshooting

Two Buttons Type

Audio Visual Systems - Testing & Troubleshooting

  1. If the resistance is not as specified, replace the HFL switch.

4. Steering Wheel Trim - Install

Install the parts in the reverse order of removal.
