MOONROOF GLASS POSITION ADJUSTMENT

Adjustment

1. Moonroof Glass Position - Check

Moonroof - Testing & Troubleshooting

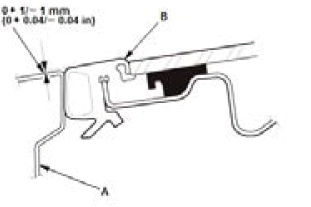

  1. The roof panel (A) should be even with the glass roof seal (B) to within 0-1/-1 mm (0-0.04/-0.04 in) all the way around. If not, make the following adjustment:

2. Moonroof Glass Position - Adjust

Moonroof - Testing & Troubleshooting

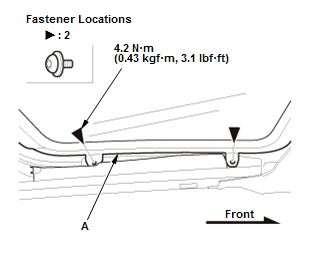

  1. Slightly loosen the bolts with a TORX T25 bit
  2. Move the glass (A) up or down
  3. Tighten all bolts securely
  4. If necessary, repeat on the opposite side.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

4. Moonroof Control Unit - Reset

5. Water Leaks - Check
