Honda HR-V: Power Window Master Switch Input Test
NOTE :
- Before testing, make sure the No. C8 (20 A), No. C9 (20 A), No. C10 (20
A), and No. C11 (20 A) fuses
in the under-dash fuse/relay box are OK.
- Before testing, make sure the No. D1-3 (50 A) fuse in the auxiliary
under-dash fuse box is OK.
- Before testing, check for DTCs. If any DTCs are indicated, troubleshoot
those DTCs first.
1. Turn the vehicle to the OFF (LOCK) mode

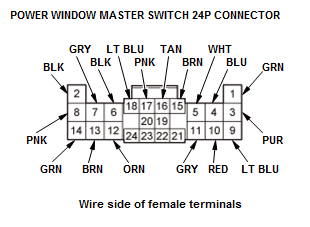

2. Disconnect the power window master switch 24P connector
.png)
3. Inspect the connector and socket terminals to be sure they are all making
good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary,
and recheck the system.
- If the terminals look OK, go to step 4.

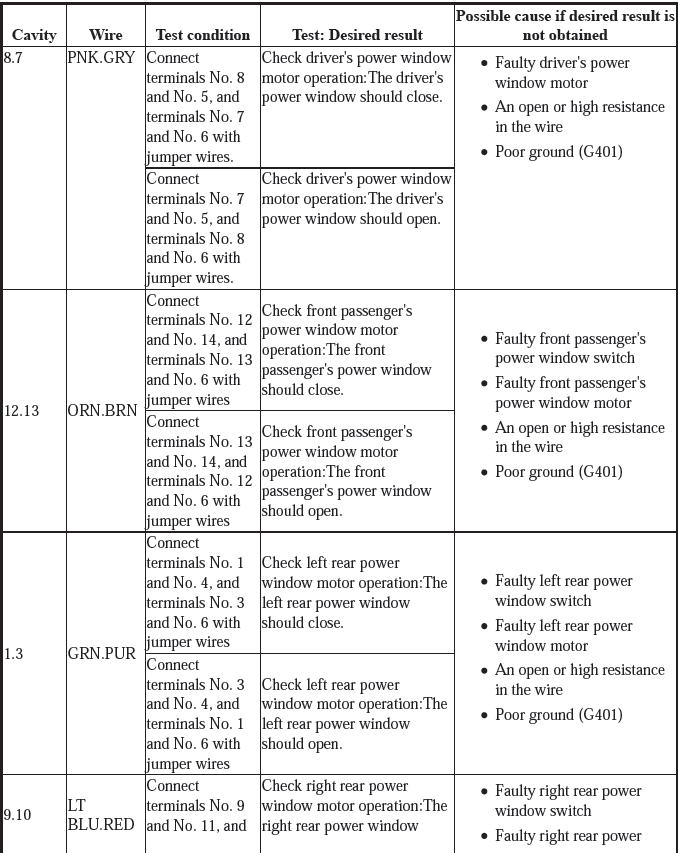

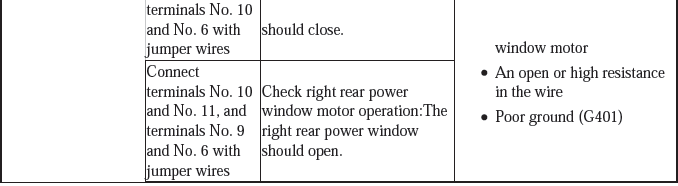

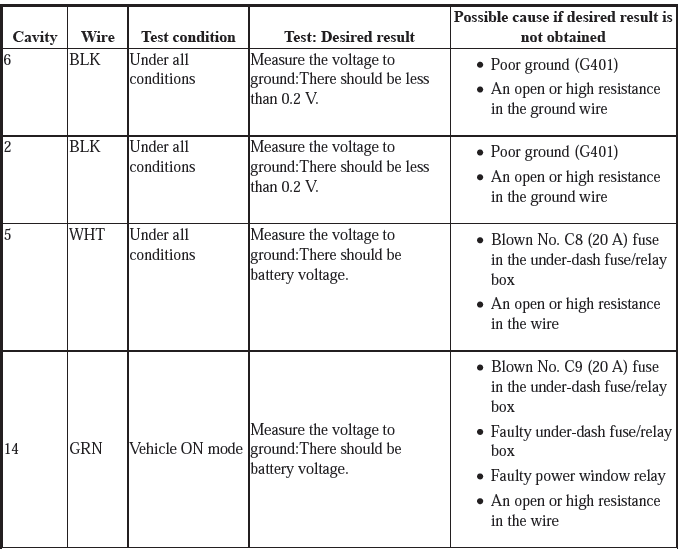

4. With the connector still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then
recheck the system.
- If all the input tests prove OK, go to step 5.
.png)
.png)

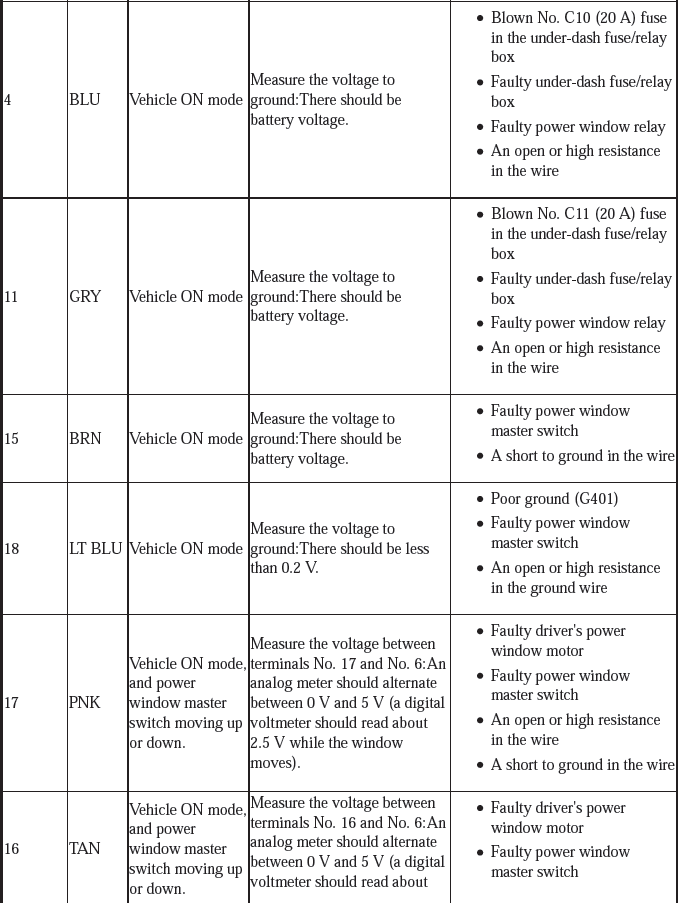

5. Reconnect the connector, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then
recheck the system.
- If all the input tests prove OK, replace the power window master switch.
NOTE : After replacing the power window master switch, do the resetting the
power window control unit.
.png)
.png)
.png)
