Honda HR-V: Steering & Suspension
MANUAL STEERING GEAR TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

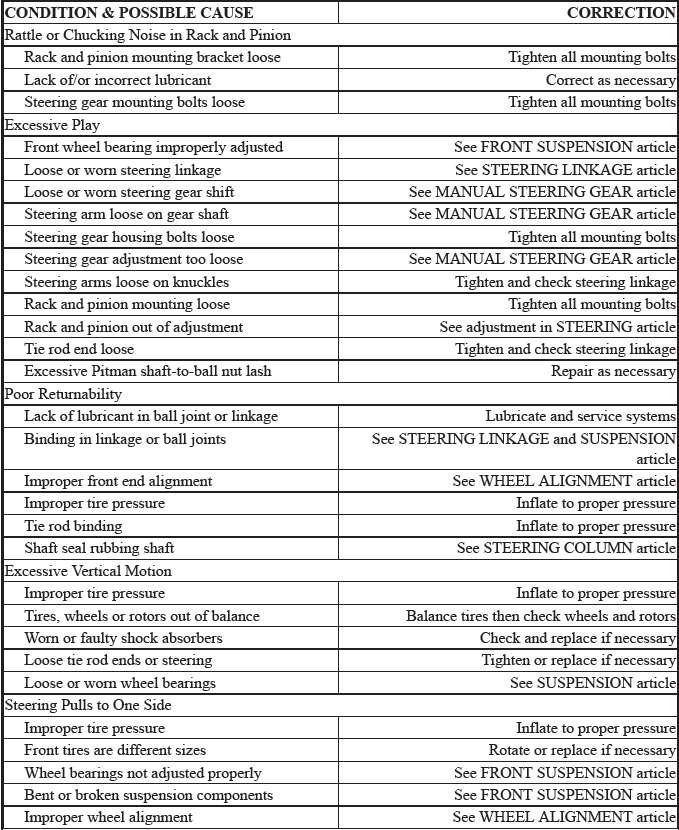

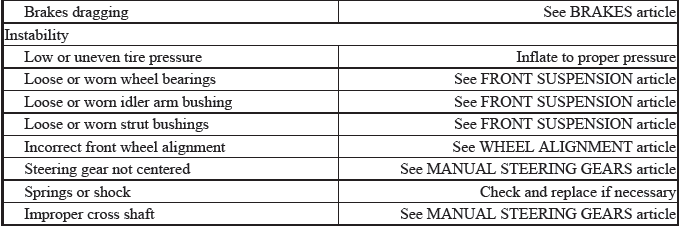

BASIC MANUAL STEERING GEAR TROUBLE SHOOTING CHART
.png)

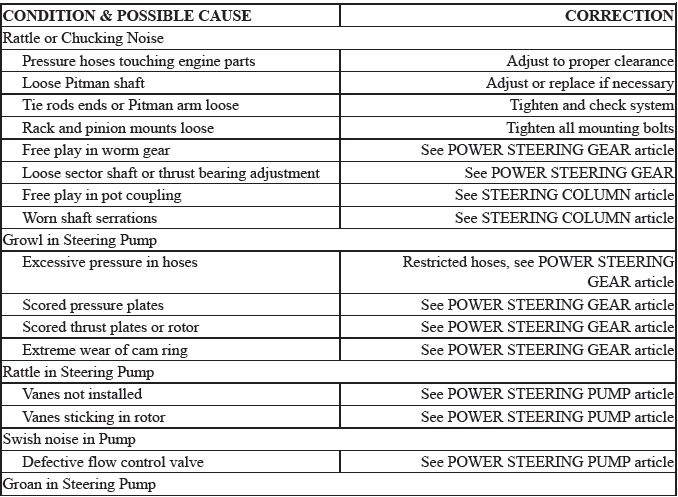

POWER STEERING TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

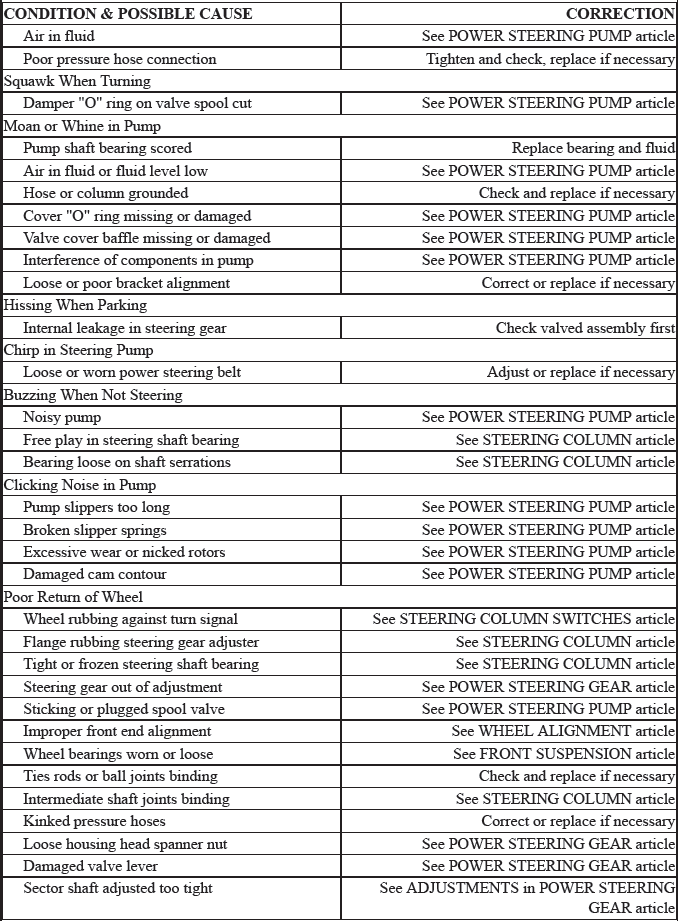

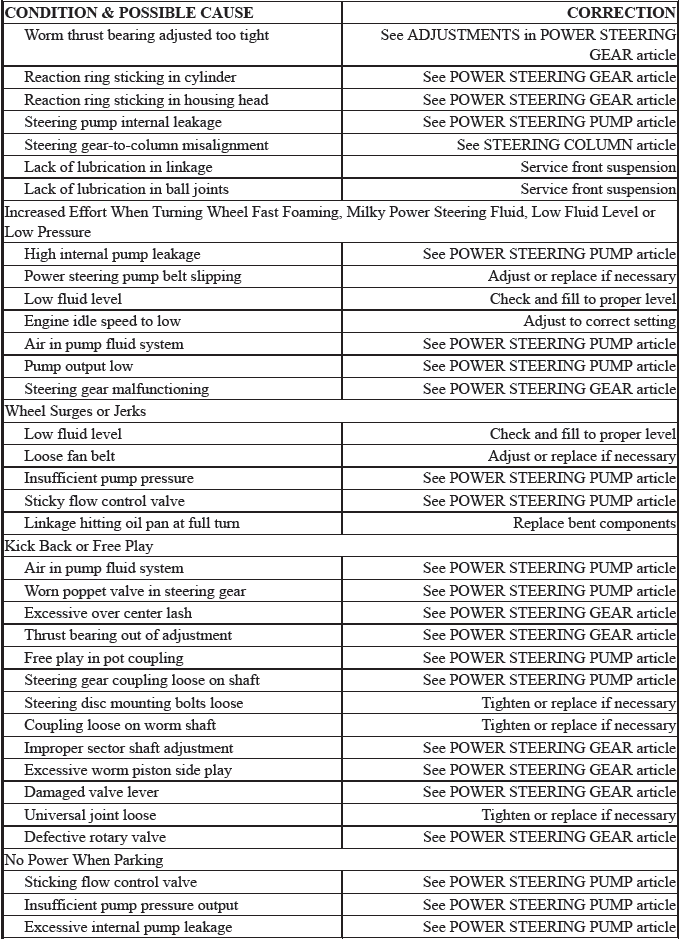

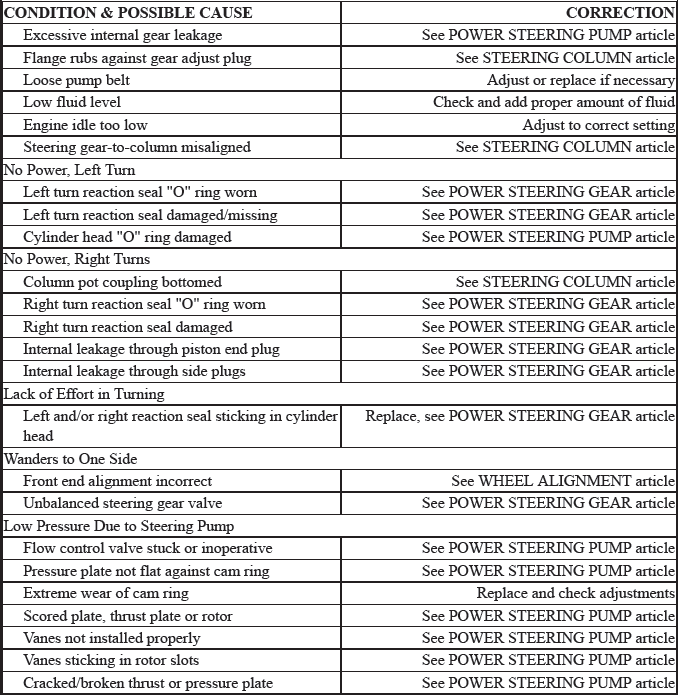

BASIC POWER STEERING TROUBLE SHOOTING CHART
STEERING COLUMN TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

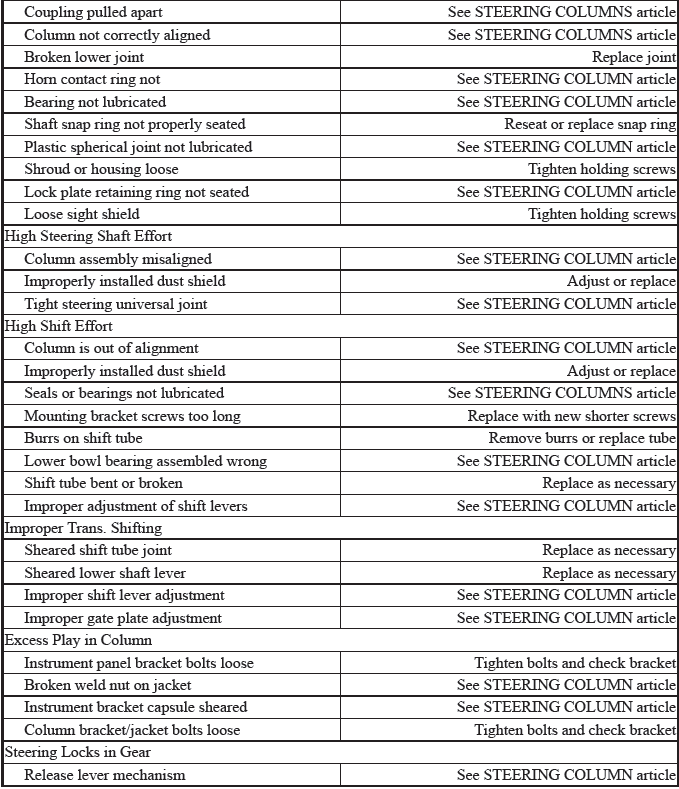

BASIC STEERING COLUMN TROUBLE SHOOTING CHART
SUSPENSION TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

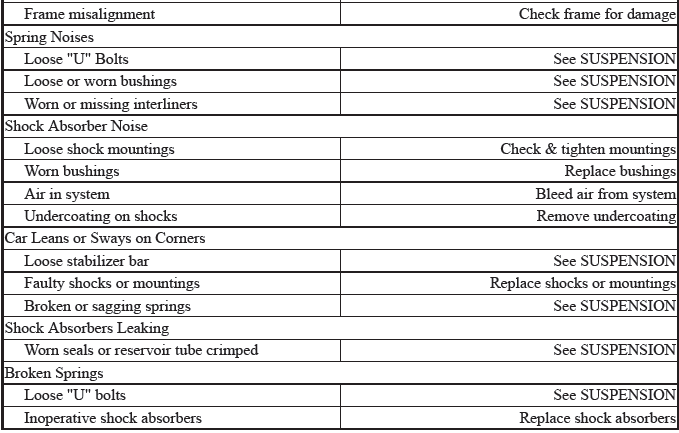

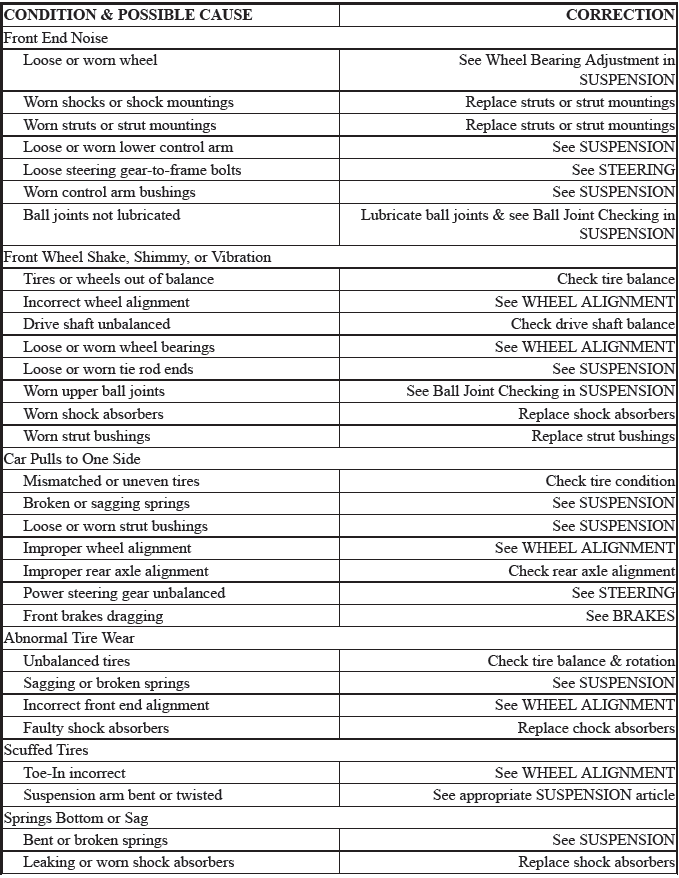

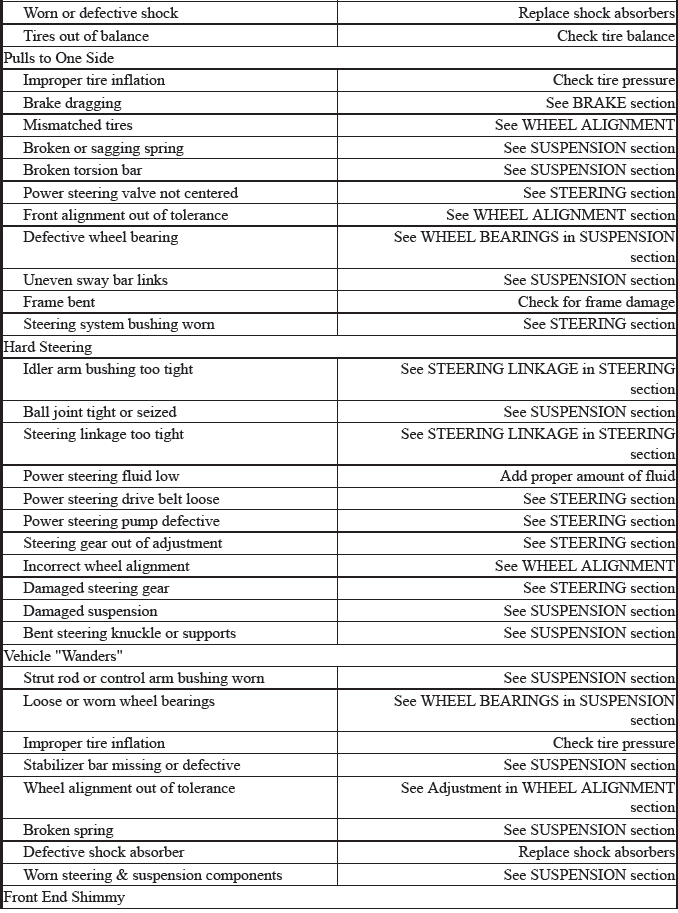

BASIC SUSPENSION TROUBLE SHOOTING CHART
WHEEL ALIGNMENT TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

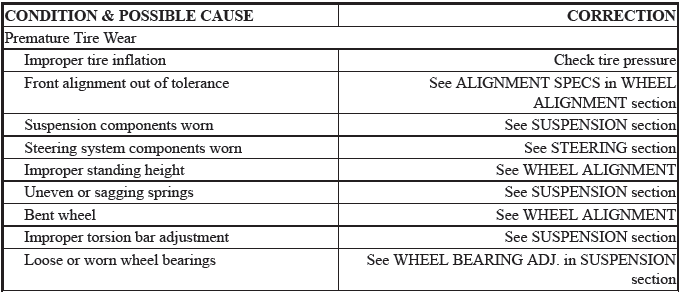

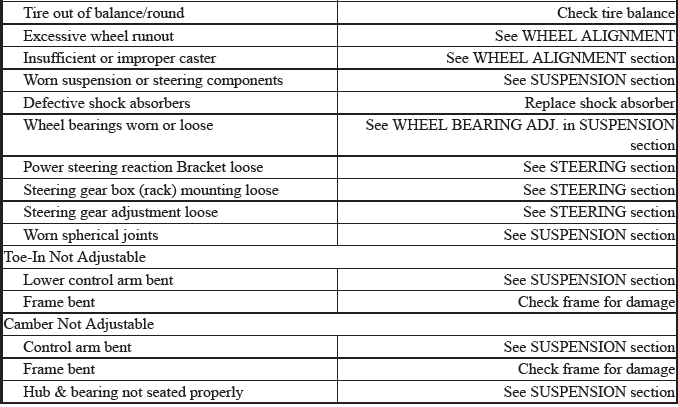

BASIC WHEEL ALIGNMENT TROUBLE SHOOTING CHART
