Honda HR-V: Steering Gearbox Mount Cushion Replacement

Replacement

NOTE: Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.

1. Steering Gearbox - Remove

2. Steering Gearbox Mount Cushion - Remove

Steering System - Service Information

  1. Position a 36 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown
  2. Hold the flange bolt with a wrench, and tighten the nut with a wrench
  3. Remove the gearbox mount cushion (E).

3. Steering Gearbox Mount Cushion - Install

Steering System - Service Information

  1. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole
  2. Position a 36 mm socket (B) on the flange part of the gearbox housing with a washer (C), a flange bolt (D), and a nut (E) as shown.

Steering System - Service Information

  1. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (A) properly fits on the gearbox flange surfaces (B).

4. Steering Gearbox - Install

STEERING GEARBOX REMOVAL AND INSTALLATION

Special Tools Required

Ball Joint Remover, 28 mm 07MAC-SL00202

Steering System - Service Information

Ball Joint Thread Protector, 12 mm 07AAFSDAA100

Steering System - Service Information

Removal

NOTE:

  • Using clean solvent and a brush, wash any oil and dirt off the end of the steering gearbox. Blow dry with compressed air.
  • Lower the front subframe from the body, then remove the steering gearbox.

1. Vehicle - Lift

2. Front Wheels - Remove

3. Steering Column Tilt and Telescopic Position - Set

  1. Set the steering column to the center tilt position, and to the center telescopic position.

4. Steering Wheel - Hold

Steering System - Service Information

  1. Center the steering wheel spoke angle
  2. Install a commercially available steering wheel holder tool (A).

5. Steering Joint Cover - Remove

Steering System - Service Information

6. Steering Joint - Disconnect

Steering System - Service Information

  1. Hold the spline shaft (A) on the column with a piece of wire (B) between the joint yoke (C) of the spline shaft and the joint yoke (D) of the spline tube to prevent the lower spline shaft from pulling out.

Steering System - Service Information

  1. Remove the steering joint bolt (A).

Steering System - Service Information

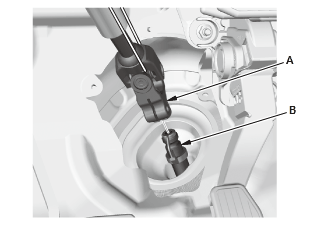

  1. Disconnect the steering joint (A) from the pinion shaft (B).

Steering System - Service Information

  1. Remove the center guide (A) (if equipped), and discard it.

7. Tie-Rod End Ball Joint - Disconnect

Steering System - Service Information

  1. Remove the cotter pin (A).
  2. Remove the nut (B).
  3. Disconnect the tie-rod end ball joint from the knuckle using the ball joint thread protector and the ball joint remover.

    NOTE: Be careful not to damage the ball joint boot when installing the ball joint remover.

8. Stabilizer Link - Disconnect

  1. Disconnect both sides of the stabilizer link from the stabilizer bar.

9. Engine Undercover - Remove (With 2WD)

10.Under-Floor TWC - Remove (USA and Canada models) - Refer to: Warm Up TWC Removal and Installation (KA/KC),

11.Exhaust Pipe B - Remove (Mexico models)

12.Torque Rod - Remove (With 2WD)

13.Torque Rod Mounting Bolt - Remove (With AWD)

Steering System - Service Information

14.Front Subframe - Lift Down

Steering System - Service Information

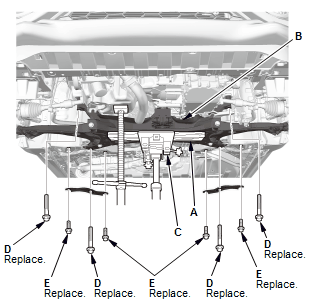

  1. Attach a wood block (A) to the lower center of the front subframe (B)
  2. Attach a transmission jack (C) to the center of the wood block
  3. Support the front subframe securely by raising the transmission jack
  4. Remove the front subframe mounting bolts (D) and the subframe rear stay mounting bolts (E).

Steering System - Service Information

  1. Lower the jack slowly until the subframe of the body has dropped about 30 mm (1.18 in).

    NOTE: Do not lower the subframe more than required.

15.Steering Gearbox - Remove

Steering System - Service Information

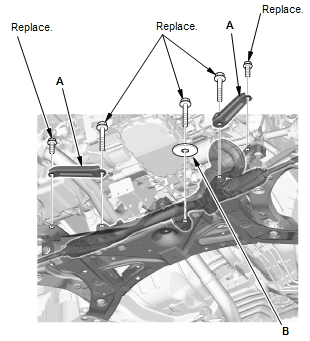

  1. Remove the steering gearbox stays (A)
  2. Remove the gearbox washer (B).

Steering System - Service Information

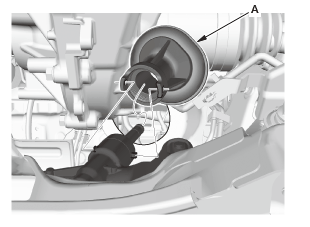

  1. Remove the pinion shaft grommet (A).

Steering System - Service Information

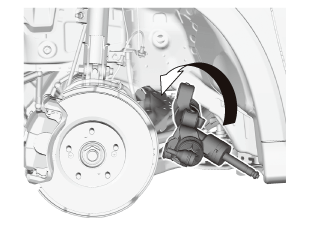

  1. Carefully move the steering gearbox so that the pinion shaft (A) turns towards the rear.

Steering System - Service Information

  1. Remove the steering gearbox (A) through the wheelwell opening on the driver's side.

    NOTE: Be careful not to damage the steering gearbox boot and the pinion shaft.

Installation

NOTE: Using clean solvent and a brush, wash any oil and dirt off the end of the steering gearbox. Blow dry with compressed air.

1. Steering Gearbox - Install

Steering System - Service Information

  1. Slide the steering gearbox (A) between the front subframe and the body from the driver's side.

    NOTE: Be careful not to damage the steering gearbox boot and the pinion shaft.

Steering System - Service Information

  1. Install the steering gearbox until the steering gearbox is in position.

Steering System - Service Information

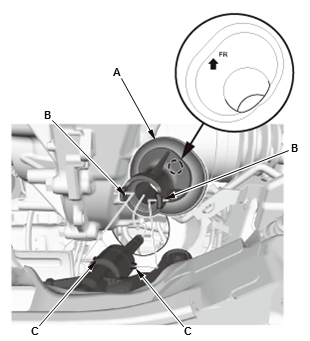

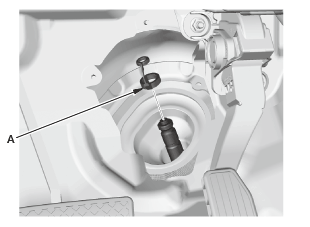

  1. Install the pinion shaft grommet (A).

    NOTE: Align the cutout portions (B) with the lug portions (C).

Steering System - Service Information

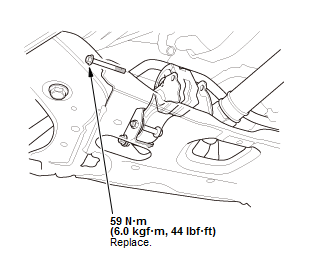

Fig. 8: Steering Box Mounting With Torque Specifications

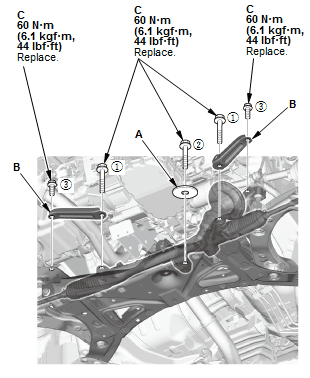

  1. Install the gearbox washer (A)

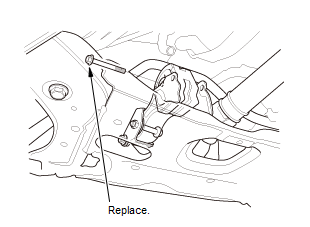

  2. Install the steering gearbox stays (B), and loosely install the new gearbox mounting bolts (C)
  3. Tighten the bolts to the specified torque in the numbered sequence shown.

2. Front Subframe - Lift Up

Steering System - Service Information

  1. Carefully raise the front subframe (A) with the transmission jack (B), and pass the pinion shaft into the driver's compartment.

    NOTE:

    • Make sure the pinion shaft grommet (C) is securely in place.
    • Incorrect installation can cause leakage of water or mud, and noise.
  2. Loosely install the new front subframe mounting bolts (D) and the new subframe rear stay mounting bolts (E).

3. Front Subframe - Tighten

4. Torque Rod - Install (With 2WD)

5. Torque Rod Mounting Bolt - Tighten (With AWD)

Steering System - Service Information
Fig. 9: Torque Rod Mounting Bolt With Torque Specifications

6. Under-Floor TWC - Install (USA and Canada models) - Refer to: Warm Up TWC Removal and Installation (KA/KC)

7. Exhaust Pipe B - Install (Mexico models)

8. Engine Undercover - Install (With 2WD)

9. Stabilizer Link - Connect

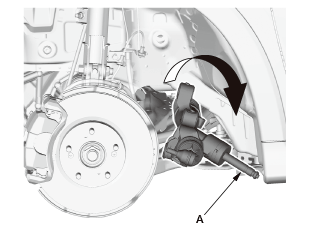

  1. Connect both sides of the stabilizer link to the stabilizer bar.

10.Tie-Rod End Ball Joint - Connect

Steering System - Service Information

  1. Wipe off any grease contamination from the ball joint tapered section and threads

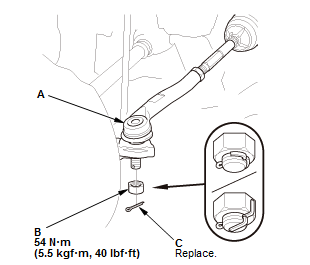

  2. Connect the tie-rod ball joint (A) to the knuckle
  3. Install the nut (B) and tighten to the specified torque
  4. Install a new cotter pin (C).

    NOTE : Bend the cotter pin as shown.

11.Steering Joint - Connect

Steering System - Service Information
Fig. 10: Steering Joint With Torque Specifications

  1. Cut the wire (A)
  2. Set the rack in the straight ahead driving position

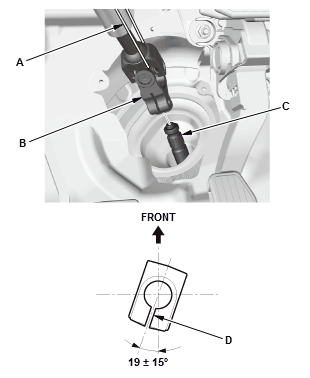

  3. Slip the lower end of the steering joint (B) onto the pinion shaft (C) taking care to align the gap (D) within the angle shown.

Steering System - Service Information
Fig. 11: Steering Joint With Torque Specifications

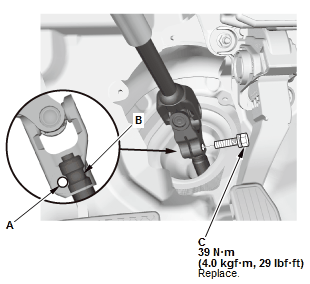

  1. Align the bolt hole (A) on the steering joint with the groove (B) around the pinion shaft

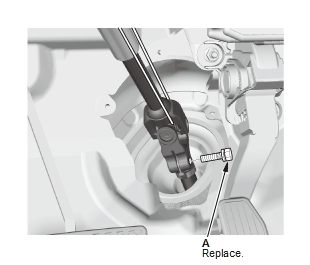

  2. Loosely install a new steering joint bolt (C)
  3. Be sure that the joint bolt is securely in the groove in the pinion shaft
  4. Tighten the joint bolt to the specified torque
  5. Pull on the steering joint to make sure that the steering joint is fully seated.

12.Steering Joint Cover - Install

Steering System - Service Information

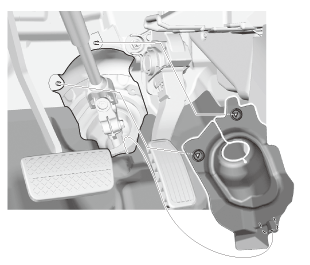

  1. Install the clip (A) and the push nuts (B) in the numbered sequence shown.

    NOTE: Check the steering joint cover for damage and cracks. If the steering joint cover is cracked, replace the steering joint cover.

13.Steering Wheel Holder - Remove

Steering System - Service Information

14.Front Wheels - Install

15.Steering Gearbox - Symptom Check

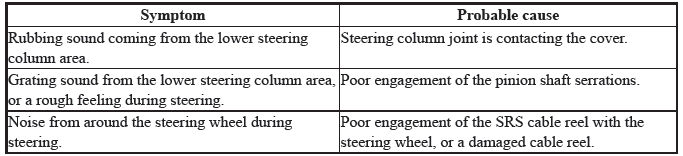

  1. With the tires raised off the ground, check for the following symptoms by turning the steering wheel fully to the right and left several times.

Steering System - Service Information

16.Steering Gearbox - Check

  1. After installation, check these items:
    • Start the engine, allow it to idle, and turn the steering wheel from lock to lock several times.
    • Check the steering wheel spoke angle. If steering spoke angles to the right and left are not equal (steering wheel and rack are not centered), correct the engagement of the joint/pinion shaft splines.

17.Power Steering Assist - Check

18.Wheel Alignment - Check

19.VSA Sensor Neutral Position - Memorize
