Honda HR-V: Tailgate Dynamic Damper Removal and Installation

Removal & Installation

1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

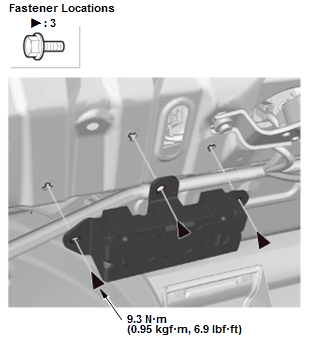

2. Tailgate Dynamic Damper - Remove

Exterior Trim - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

TAILGATE HANDLE REMOVAL AND INSTALLATION

Removal & Installation

1. Rear Window Wiper Arm - Remove

2. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

3. Rear License Trim - Remove

4. Rear Window Wiper Motor - Remove

5. Tailgate Handle - Remove

Exterior Trim - Service Information

  1. Disconnect the connector (A). (for some models)

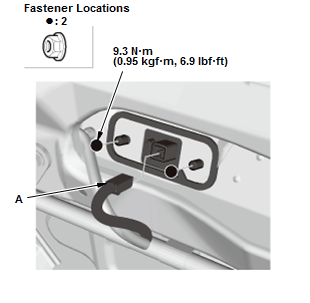

  2. Remove the nuts.

Exterior Trim - Service Information

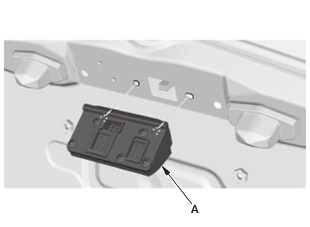

  1. Remove the tailgate handle (A).

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

TAILGATE LATCH REMOVAL AND INSTALLATION

Removal & Installation

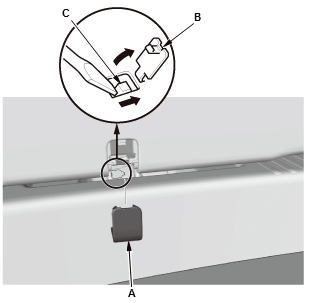

NOTE : If the tailgate latch cannot be unlocked by using the tailgate outer handle switch or the keyless entry transmitter or by unlocking the driver's door lock, remove the maintenance cap (A) from the tailgate lower trim panel and open the maintenance lid (B), then push the emergency lever (C) as shown.

Exterior Trim - Service Information

1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

2. Tailgate Latch - Remove

Exterior Trim - Service Information

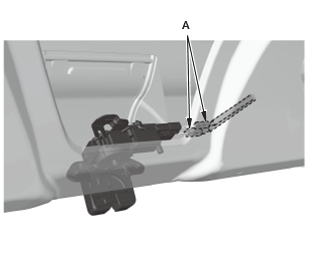

  1. Disconnect the connectors (A).

Exterior Trim - Service Information

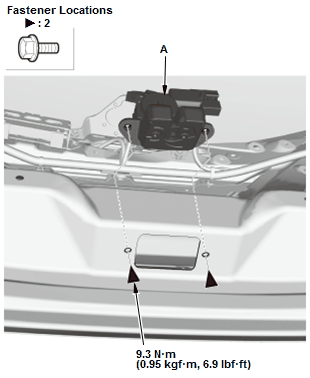

  1. Remove the tailgate latch (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
