Honda HR-V: Torque Converter Housing Bearing Replacement (CVT)
Special Tools Required

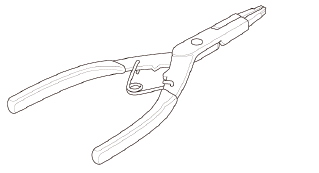

Snap Ring Pliers 07LGC-
0010100
.png)
Replacement
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.
1. Torque Converter Housing Bearing - Remove
.png)

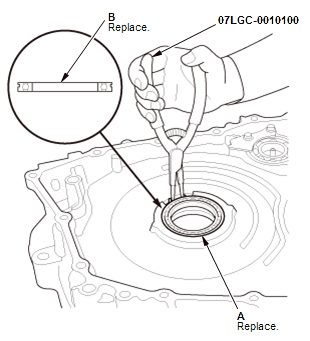

- While expanding the snap ring (A) using the snap ring pliers, remove
the torque converter housing bearing (B).
- Remove the snap ring.
2. Torque Converter Housing Bearing - Install
.png)

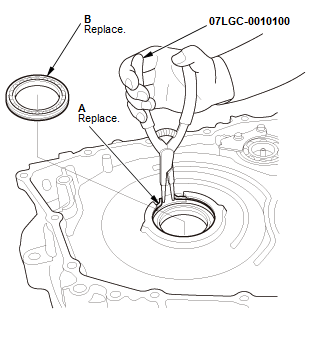

- Install a new snap ring (A).
NOTE:
- Be careful not to deform the snap ring by opening/closing it
excessively.
- Make sure the snap ring is firmly installed in the groove.
- While expanding the snap ring using the snap ring pliers, install the
torque
converter housing bearing (B) as shown.
NOTE: Make sure the snap ring is firmly installed in the groove.
TORQUE CONVERTER HOUSING OIL SEAL REPLACEMENT (CVT)
Special Tools Required
Driver Handle, 15 x 135L 07749-0010000
.png)
Oil Seal Driver Attachment, 71.5 mm
07GAD-SE00100
.png)
Replacement
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.
1. Torque Converter Housing Bearing - Remove
2. Torque Converter Housing Oil Seal - Remove

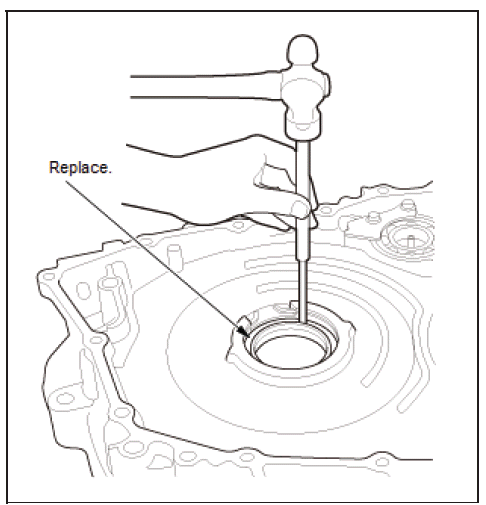

.png)
3. Torque Converter Housing Oil Seal - Install
.png)
4. Torque Converter Housing Bearing - Install
TORQUE CONVERTER TURBINE SPEED SENSOR REMOVAL AND INSTALLATION (CVT)
Removal and Installation
NOTE: Keep all foreign particles out of the transmission.
1. Vehicle - Lift
2. Engine Undercover - Remove (With 2WD)
3. Torque Converter Turbine Speed Sensor - Remove
.png)

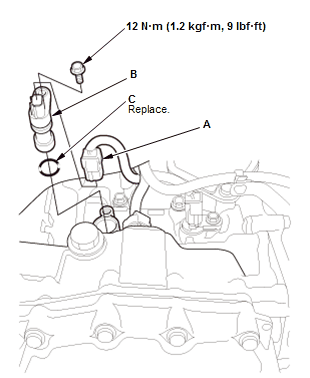

Fig. 27: Torque Converter Turbine Speed Sensor With Torque Specifications
- Disconnect the connector (A).
NOTE: Check the connector for corrosion, dirt, or oil, and clean or
repair if necessary.
- Remove the torque converter turbine speed sensor (B) with the O-ring
(C).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE:
- When installing the torque converter turbine speed sensor, be sure
to use a new O-ring which
should be applied a light coat of clean transmission fluid before
installation.
- If necessary, add transmission fluid to the proper level.
