Honda HR-V: Transmission Fluid (HCF-2) Replacement (CVT)

Replacement

NOTE: Keep all foreign particles out of the transmission.

1. Vehicle - Lift Set

2. Engine Undercover - Remove (With 2WD)

3. Engine - Warm Up

  1. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on twice).
  2. Turn the engine off.

4. Transmission Fluid - Drain

Continuously Variable Transmission (CVT) - Service Information

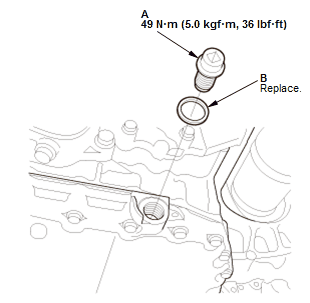

  1. Remove the drain plug (A) with the sealing washer (B), and drain the transmission fluid for at least 5 minutes.
    NOTE:
    • Remove metal particles from the magnetic surface of the drain plug.
    • Be careful not to burn yourself by the hot part.
  2. Reinstall the drain plug with a new sealing washer.

5. Transmission Fluid - Refill

Continuously Variable Transmission (CVT) - Service Information

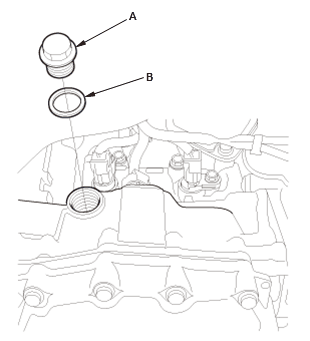

  1. Remove the filler plug (A) and the sealing washer (B).

    NOTE: Be careful not to burn yourself by the hot part.

  2. Refill the transmission with the recommended fluid into the filler plug hole (A) until transmission fluid overflows. Always use Honda HCF-2 Continuously Variable Transmission Fluid.

Continuously Variable Transmission (CVT) - Service Information

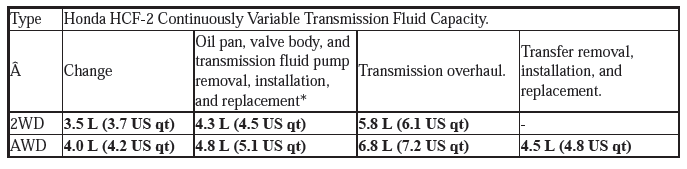

NOTE: *Reference transmission fluid (HCF-2) capacity when working time is 30 minutes. The actual transmission fluid (HCF-2) capacity will vary from the specified capacity based on the length of time the transmission fluid pan is off the transmission. Avoid leaving the transmission fluid pan off for extend periods of time.

Continuously Variable Transmission (CVT) - Service Information

  1. Temporarily install the filler plug with the sealing washer.

6. Transmission Fluid - Add

Continuously Variable Transmission (CVT) - Service Information

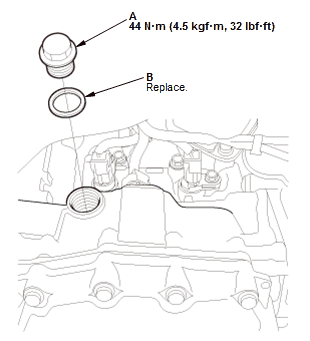

Fig. 30: Transmission Filler Plug With Torque Specifications

NOTE: Add transmission fluid after the shift lever operation without spending too much time.

  1. Lower the vehicle.

  2. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on twice).

  3. While pressing the brake pedal firmly, shift in turn the transmission to P→R→N→D→S→L→S→D→N→R→P (without paddle shifter) or P→R→N→D→S→D→N→R→P (with paddle shifter) position/mode, and wait for at least 3 seconds to each position.

  4. Turn the engine off.

  5. Raise the vehicle, and make sure it is securely supported.

  6. Remove the filler plug (A) and the sealing washer (B).

NOTE: Be careful not to burn yourself by the hot part.

Continuously Variable Transmission (CVT) - Service Information

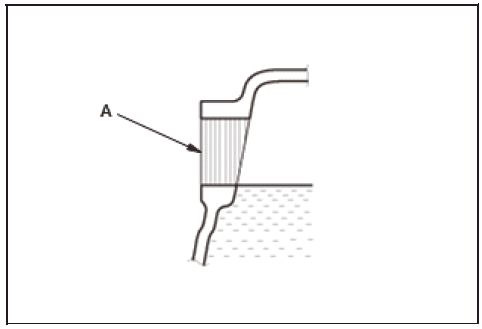

  1. Add the transmission with the recommended fluid into the filler plug hole (A) until transmission fluid overflows. Always use Honda HCF-2 Continuously Variable Transmission Fluid
  2. Reinstall the filler plug with a new sealing washer.

7. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

8. HDS - Connect

9. Maintenance Minder - Reset (With Maintenance Minder System)

  1. If the Maintenance Minder required to replace the transmission fluid, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require to replace the transmission fluid, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items").
