Honda HR-V: Under-Hood Fuse/Relay Box Removal and Installation

Honda HR-V (2015-2021) Service Manual / Electrical / Electrical System - Service Information / Under-Hood Fuse/Relay Box Removal and Installation

Special Tools Required

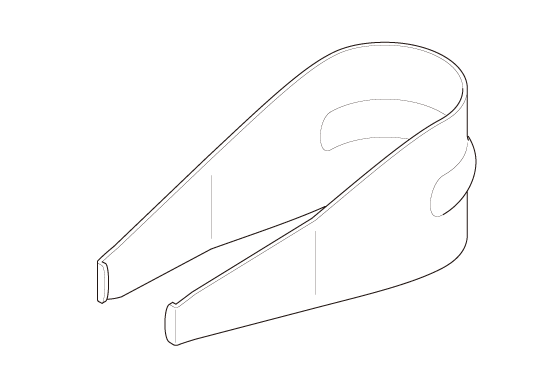

Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

Electrical System - Service Information

Removal & Installation

NOTE: The under-hood fuse/relay box is a part of the left engine compartment wire harness, and it cannot be replaced by itself.

1. 12 Volt Battery Terminal - Disconnect

2. PCM - Remove

3. Under-Hood Fuse/Relay Box - Remove

Electrical System - Service Information

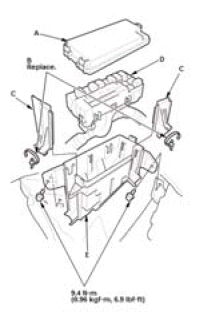

  1. Remove the upper cover (A)
  2. Cut the bands (B)
  3. Remove the covers (C)
  4. Remove the under-hood fuse/relay box (D) from the bottom cover (E)
  5. Remove the bottom cover
  6. Carefully remove the relays by prying under the base of the relay.
    NOTE :     Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: Confirm that all systems work properly.
