Honda HR-V: Front Impact Sensor Removal and Installation

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Front Inner Fender - Remove - Refer to: Front Inner Fender Removal and Installation, or Rear Inner Fender Removal and Installation

3. Front Impact Sensor - Remove

Supplemental Restraint System - Service Information

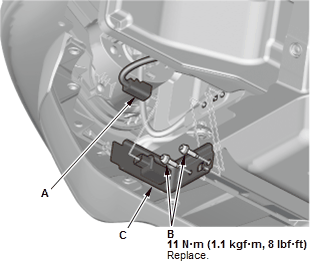

Fig. 1: Front Impact Sensor With Torque Specifications

  1. Disconnect the connector (A)
  2. Remove the bolts (B), then remove the front impact sensor (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • During installation, install the new bolt to the specified torque.
    • Before installing the front inner fender, make sure the SRS indicator works normally.

5. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

FRONT PASSENGER'S AIRBAG CUTOFF INDICATOR REMOVAL AND INSTALLATION

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Center Console Switch Trim - Remove

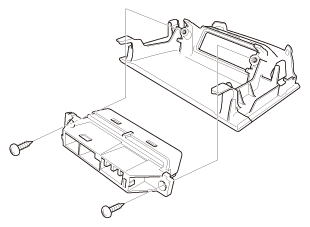

3. Front Passenger's Airbag Cutoff Indicator - Remove

Supplemental Restraint System - Service Information

4. All Removed Parts - Install

  1. Install the all removed parts in the reverse order of removal.

5. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
