Honda HR-V: Keyless/Power Door Locks/Security System Description - Control/Function

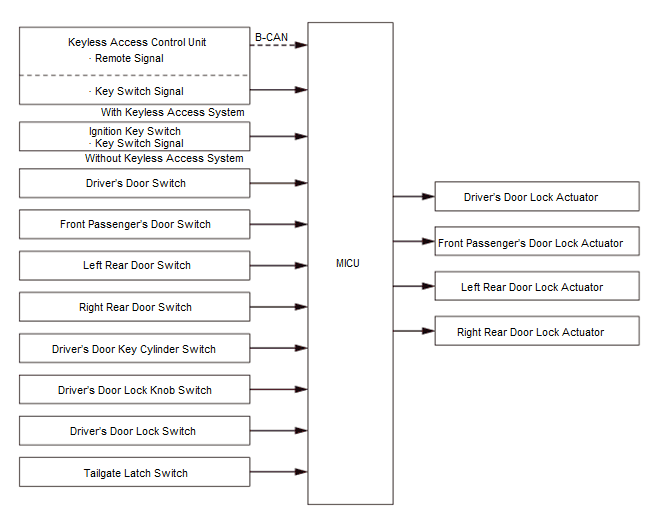

Door Lock Control

The door lock control function allows the MICU to detect the status of various switch signals and control each actuator in order to lock and unlock doors.

Security System Keyless Entry System - Testing & Troubleshooting

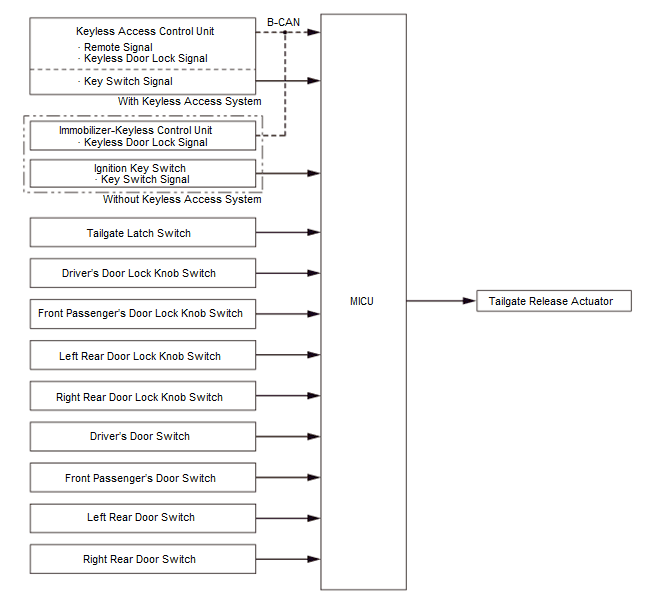

Tailgate Control

The tailgate control function allows the MICU to detect the status of various switch signals and control tailgate release actuator in order to lock and unlock tailgate.

Security System Keyless Entry System - Testing & Troubleshooting

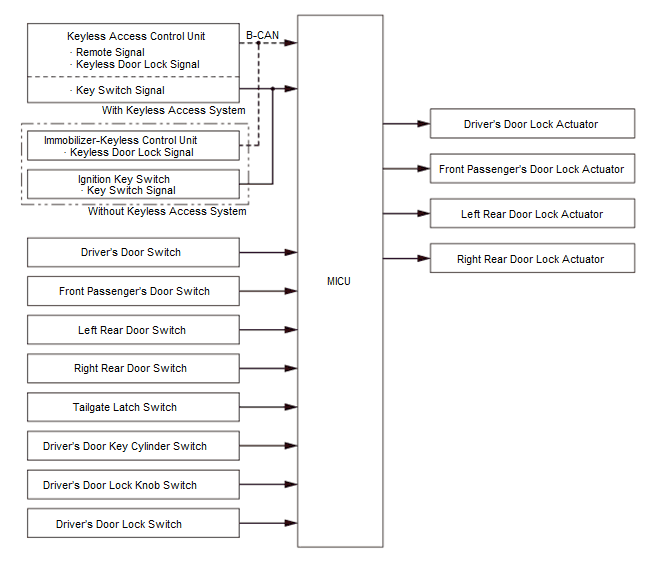

Keyless Door Lock Control

The keyless transmitter*1 or the remote*2 can transmit a lock or unlock signal to the immobilizer-keyless control unit*1 or the keyless access control unit*2, which sends the keyless request to the MICU using the B-CAN network, the MICU then controls the door lock actuator by B-CAN signal and various switch signals.

The customization menu can also set the timer value.

*1: Without keyless access system
*2: With keyless access system

Security System Keyless Entry System - Testing & Troubleshooting

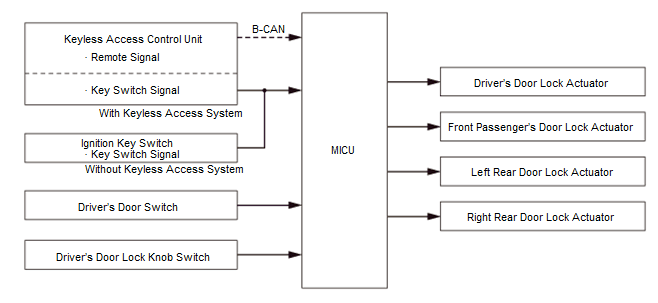

Key Lockout Prevent Function

The lockout prevent function observes the key switch signal input. If the input is "ON" (key insert to the ignition switch*1 or key present in the vehicle*2 ), the system will not lock the doors. If the driver manually locks and closes the doors with a key in the ignition switch*1 or remote in the vehicle*2 (input ON), the MICU energizes the driver's door lock actuator and unlocks the driver's door.

*1: Without keyless access system
*2: With keyless access system

Security System Keyless Entry System - Testing & Troubleshooting

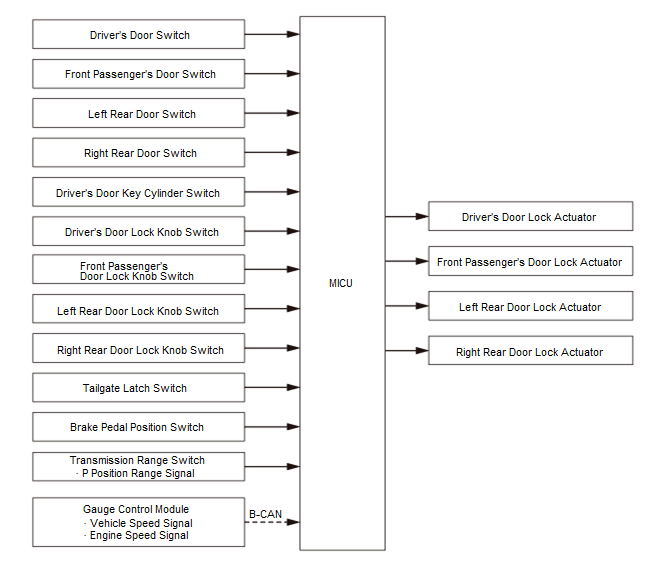

Automatic Door Lock/Unlock Control

The automatic door lock/unlock control function allows the MICU to detect the status of B-CAN signals and various switch signals and controls each actuator in order to automatically lock/unlock the doors.

Security System Keyless Entry System - Testing & Troubleshooting

Automatic Door Lock Function:

  • When the vehicle speed exceeds 9 mph (15 km/h). (Default setting)
  • When the shift position/mode is out of the P position/mode.

Automatic Door Unlock Function:

  • When the shift position/mode is moved to the P position/mode from other than P position/mode. (Default setting)
  • When the vehicle mode is changed to the OFF (LOCK) mode from the ON mode.

Customizing Function:

The locking method can be set as non-link, link to vehicle speed, link to shift position/mode, or link to ignition switch or engine start/stop switch by the customizing function. For more information about customize options, refer to the Owner's manual.

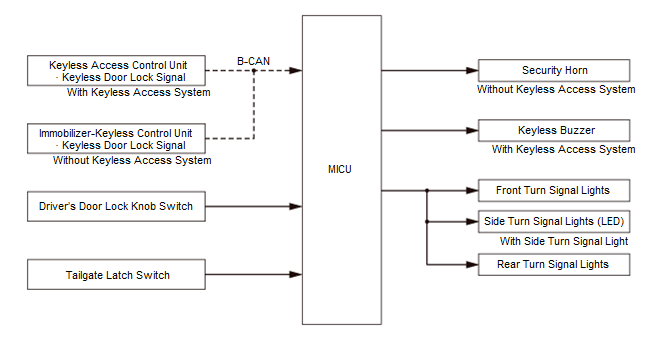

Answer Back Control

When using the keyless transmitter*1 or the remote*2, the MICU provides an answer back function to alert the operator that the MICU received a lock or unlock command from the keyless transmitter*1 or the remote*2.

When the MICU receives a lock signal, it sends the turn signal light signals once. When the MICU receives an unlock signal, the MICU sends the turn signal light signal two times.

*1: Without keyless access system
*2: With keyless access system

Security System Keyless Entry System - Testing & Troubleshooting

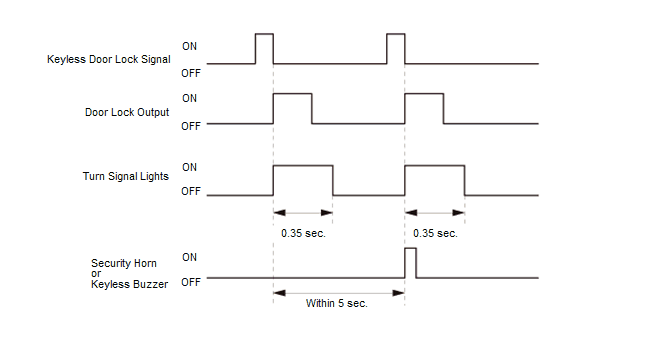

When the MICU receives a lock signal, the MICU sends signals once to the turn signal lights, and the security horn*1 or the keyless buzzer*2 will sound once when you press the LOCK button again within 5 seconds.

*1: Without keyless access system
*2: With keyless access system

Security System Keyless Entry System - Testing & Troubleshooting

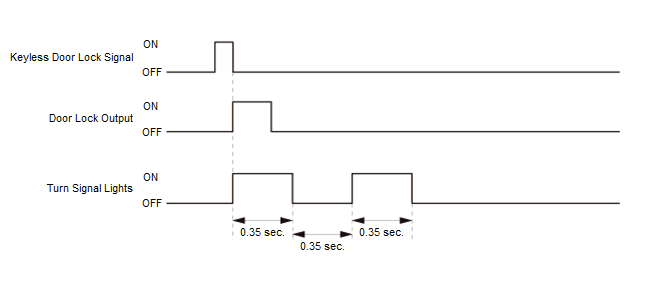

When the MICU receives an unlock signal, the MICU sends signals two times to the turn signal lights.

Security System Keyless Entry System - Testing & Troubleshooting

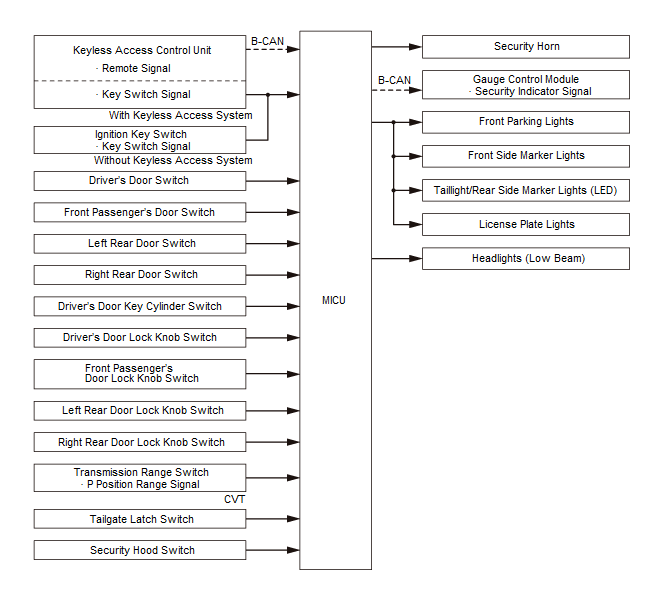

Security Control

When the security alarm is set, the MICU sends the security set signal using the B-CAN.

Security System Keyless Entry System - Testing & Troubleshooting

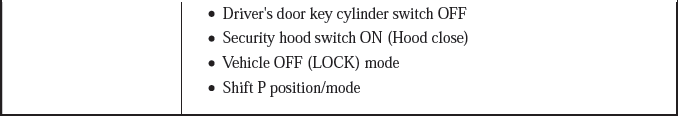

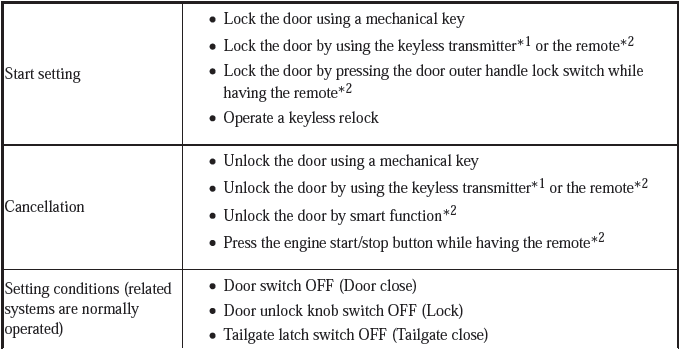

Security system operating term

Security System Keyless Entry System - Testing & Troubleshooting

Security System Keyless Entry System - Testing & Troubleshooting

*1: Without keyless access system
*2: With keyless access system

Security System Keyless Entry System - Testing & Troubleshooting

*1: Without keyless access system
*2: With keyless access system

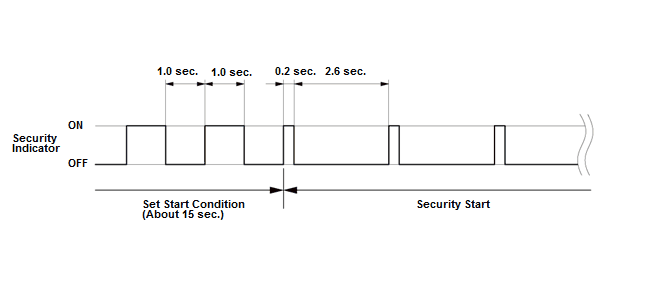

Security Setting

When the security alarm is set, the MICU sends the security set signal using the B-CAN. When the gauge control module receives a security set signal from the MICU, the security indicator flashes at a slower pace to indicate the system has armed.

Security System Keyless Entry System - Testing & Troubleshooting

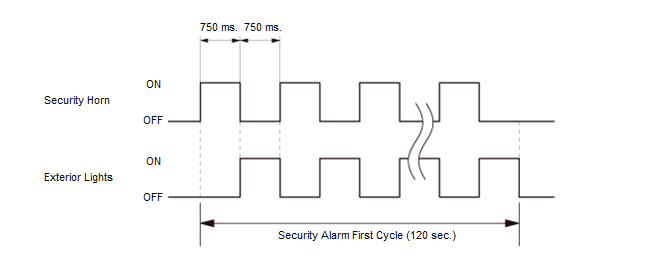

Security Alarm

With the security system armed, manually opening the hood or the tailgate or moving the door lock knob to the unlock position activates the security alarm. Simultaneously, the security alarm sounds, the headlights low beam, the parking lights, the taillights, the license plate lights, and the side marker lights blink, repeating this alarm (one cycle is 120 seconds). Even if you remove the 12 volt battery, the alarming state cannot be changed.

The alarm starts again when reinstalling the 12 volt battery.

Security System Keyless Entry System - Testing & Troubleshooting
