Honda HR-V: Advanced Diagnostics

DTC ADVANCED DIAGNOSTICS: SRS RELATED DTCS

NOTE

  • Always check "How to troubleshoot the SRS system" and proceed along each "DTC Troubleshooting" procedure.
  • Make sure the 12 volt battery is fully charged. If not, the results of tests may not be accurate.
  • The SRS indicator will turn on when the battery voltage becomes below 10 volts.
  • The possible causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

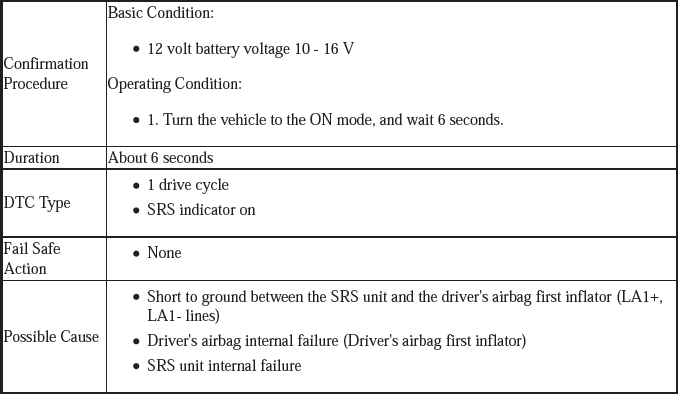

DTC B0001-11: Short to Ground in the Driver's Airbag First Inflator

Supplemental Restraint System - Diagnostics

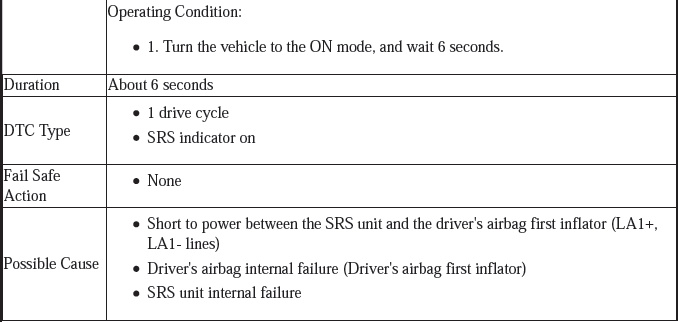

DTC B0001-12: Short to Power in the Driver's Airbag First Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

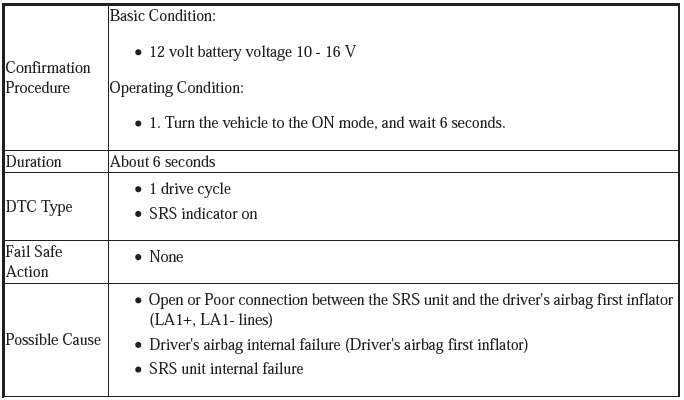

DTC B0001-13: Open or Increased Resistance in the Driver's Airbag First Inflator

Supplemental Restraint System - Diagnostics

DTC B0001-1A: Decreased Resistance in the Driver's Airbag First Inflator

Supplemental Restraint System - Diagnostics

DTC B0002-11: Short to Ground in the Driver's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

DTC B0002-12: Short to Power in the Driver's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

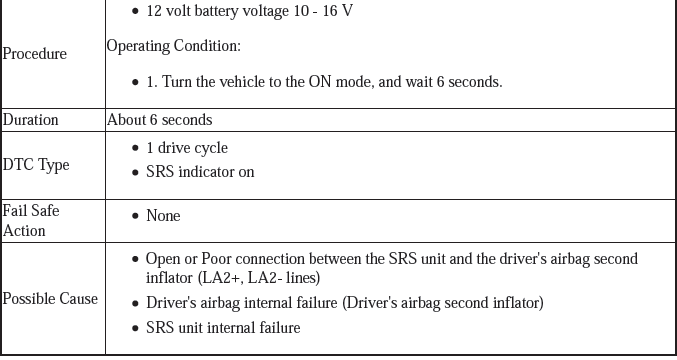

DTC B0002-13: Open or Increased Resistance in the Driver's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0002-1A: Decreased Resistance in the Driver's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

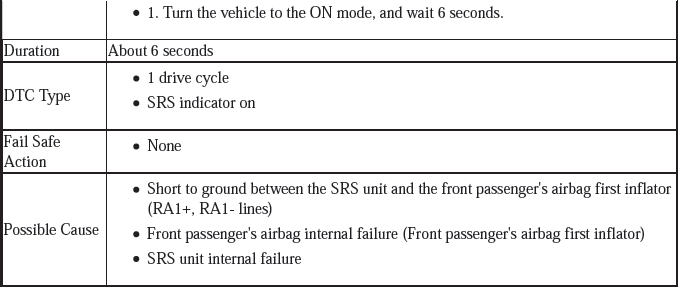

DTC B0010-11: Short to Ground in the Front Passenger's Airbag First Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0010-12: Short to Power in the Front Passenger's Airbag First Inflator

Supplemental Restraint System - Diagnostics

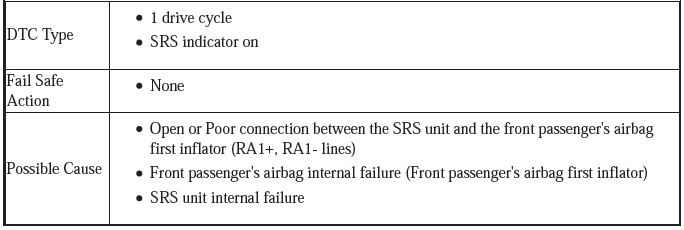

DTC B0010-13: Open or Increased Resistance in the Front Passenger's Airbag First Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0010-1A: Decreased Resistance in the Front Passenger's Airbag First Inflator

Supplemental Restraint System - Diagnostics

DTC B0011-11: Short to Ground in the Front Passenger's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

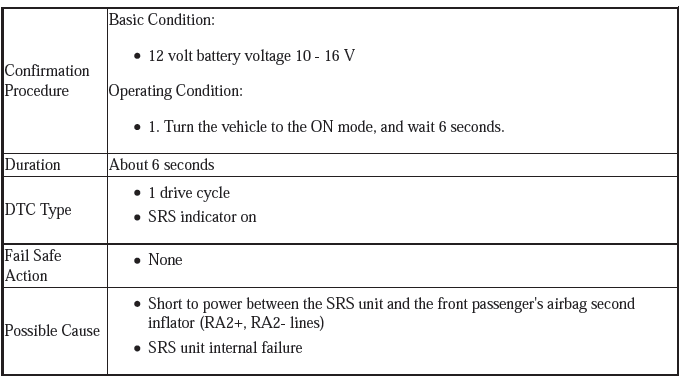

DTC B0011-12: Short to Power in the Front Passenger's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

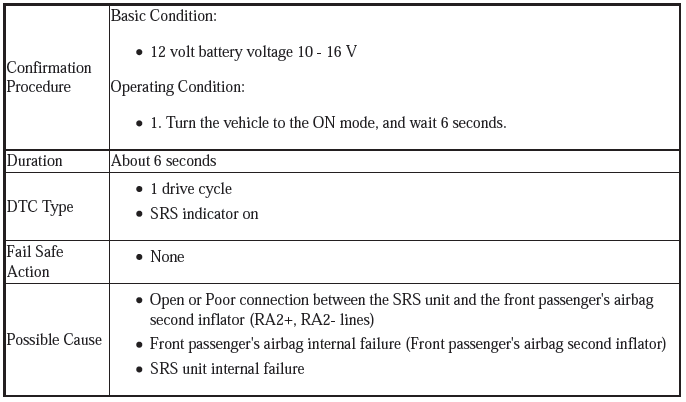

DTC B0011-13: Open or Increased Resistance in the Front Passenger's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

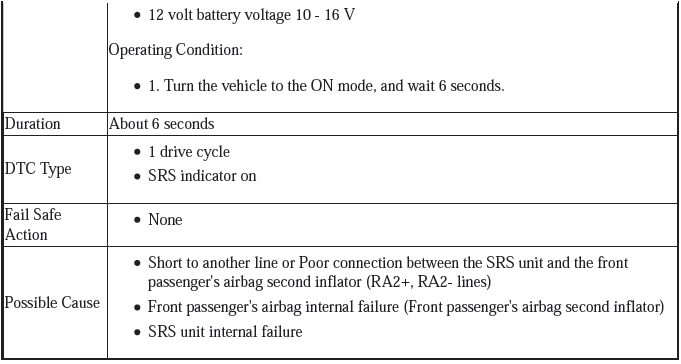

DTC B0011-1A: Decreased Resistance in the Front Passenger's Airbag Second Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

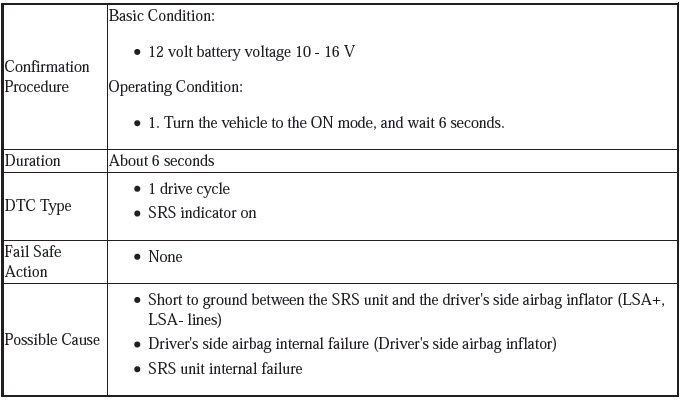

DTC B0020-11: Short to Ground in the Driver's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

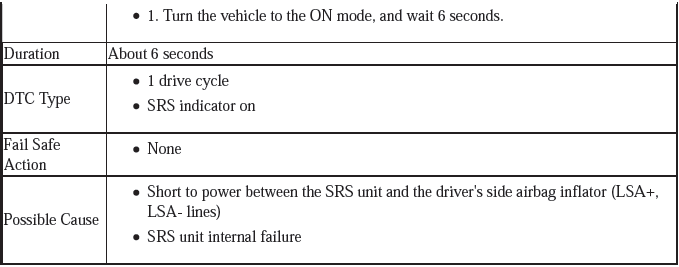

DTC B0020-12: Short to Power in the Driver's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

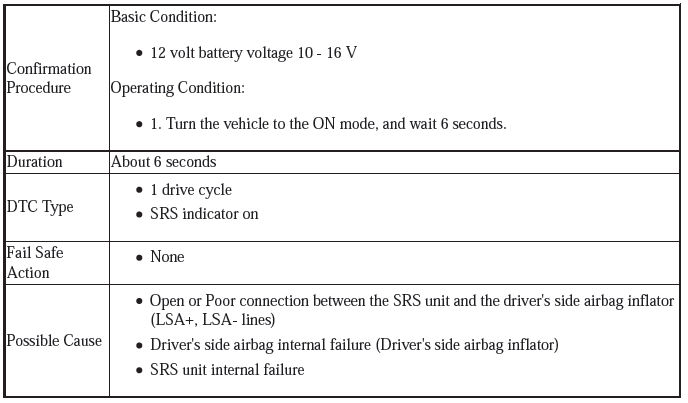

DTC B0020-13: Open or Increased Resistance in the Driver's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

DTC B0020-1A: Decreased Resistance in the Driver's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

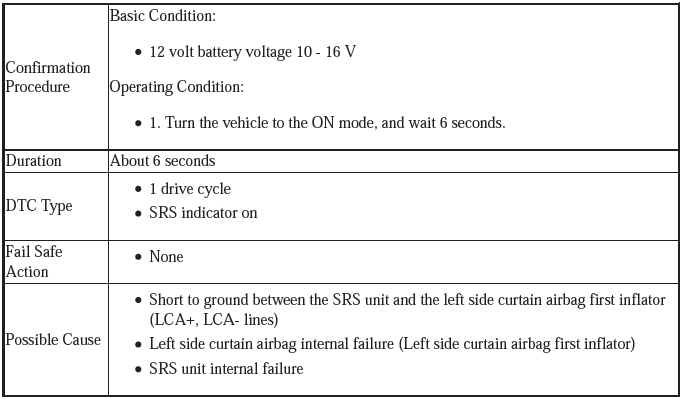

DTC B0021-11: Short to Ground in the Left Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

DTC B0021-12: Short to Power in the Left Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

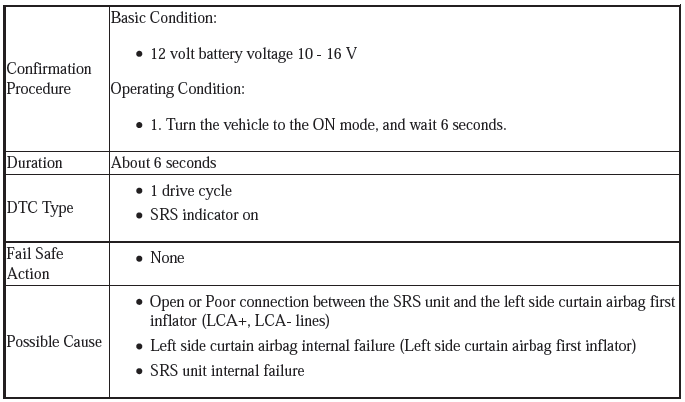

DTC B0021-13: Open or Increased Resistance in the Left Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

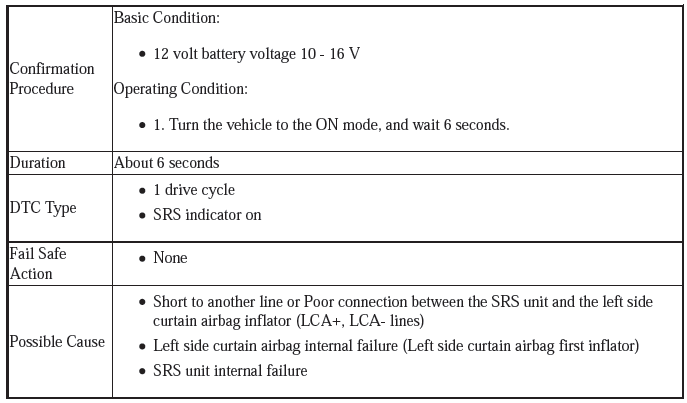

DTC B0021-1A: Decreased Resistance in the Left Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

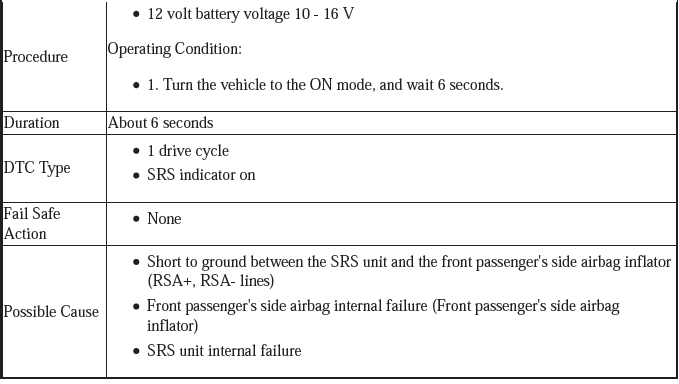

DTC B0028-11: Short to Ground in the Front Passenger's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

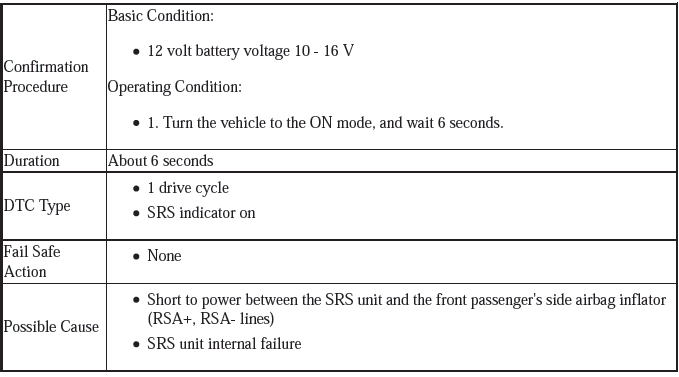

DTC B0028-12: Short to Power in the Front Passenger's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

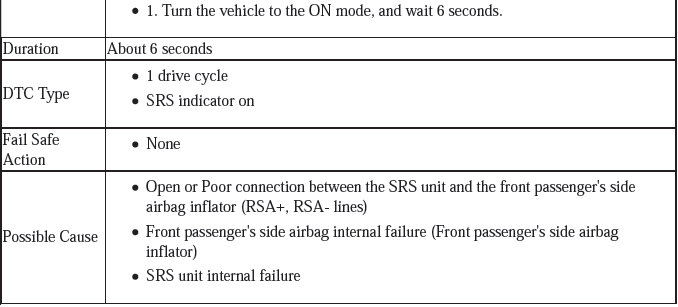

DTC B0028-13: Open or Increased Resistance in the Front Passenger's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0028-1A: Decreased Resistance in the Front Passenger's Side Airbag Inflator

Supplemental Restraint System - Diagnostics

DTC B0029-11: Short to Ground in the Right Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

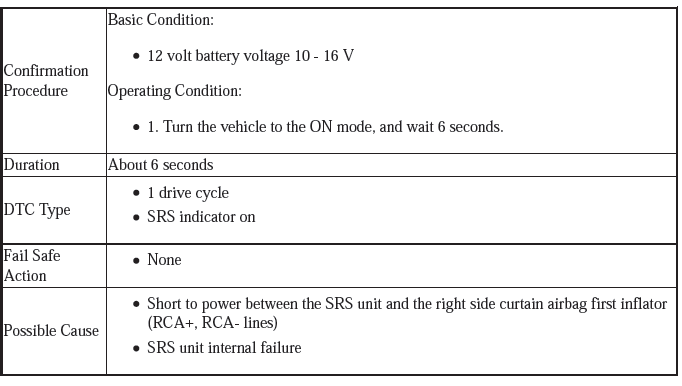

DTC B0029-12: Short to Power in the Right Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

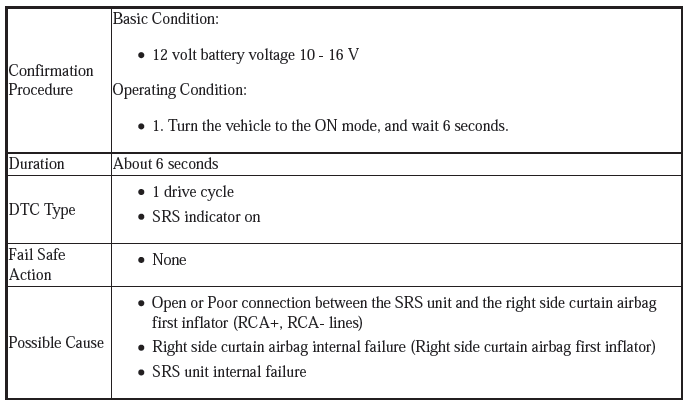

DTC B0029-13: Open or Increased Resistance in the Right Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

DTC B0029-1A: Decreased Resistance in the Right Side Curtain Airbag First Inflator

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

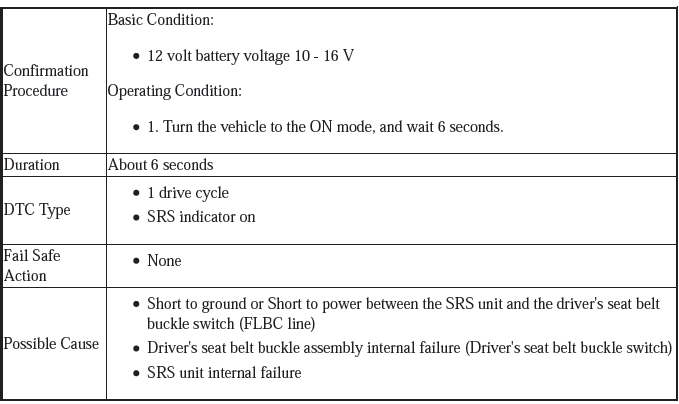

DTC B0050-11: Short or Decreased Resistance in the Driver's Seat Belt Buckle Switch

Supplemental Restraint System - Diagnostics

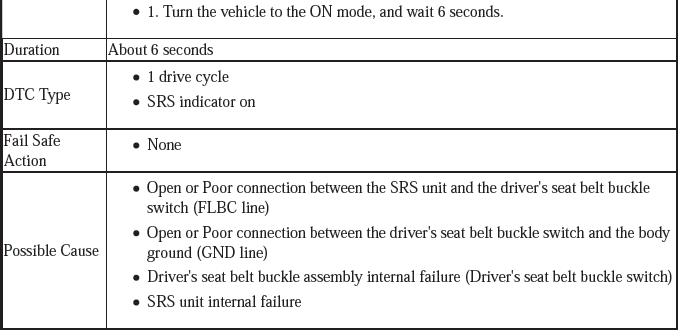

DTC B0050-13: Open or Increased Resistance in the Driver's Seat Belt Buckle Switch

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

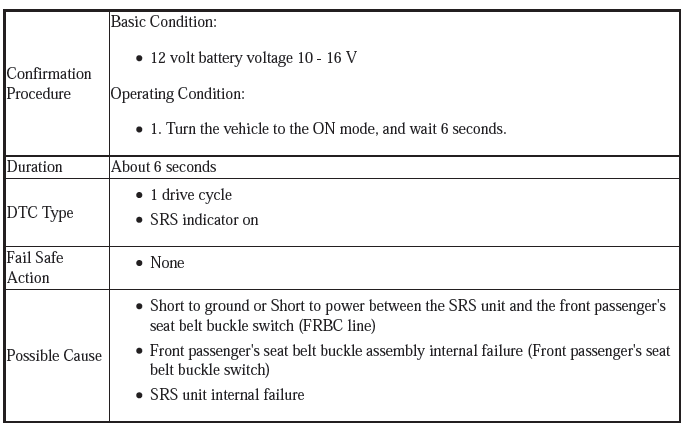

DTC B0052-11: Short or Decreased Resistance in the Front Passenger's Seat Belt Buckle Switch

Supplemental Restraint System - Diagnostics

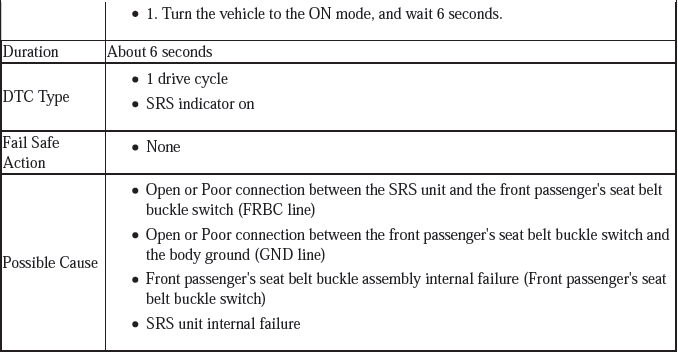

DTC B0052-13: Open or Increased Resistance in the Front Passenger's Seat Belt Buckle Switch

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

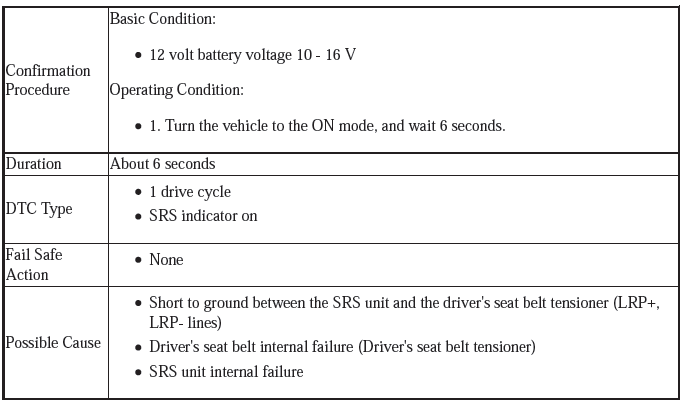

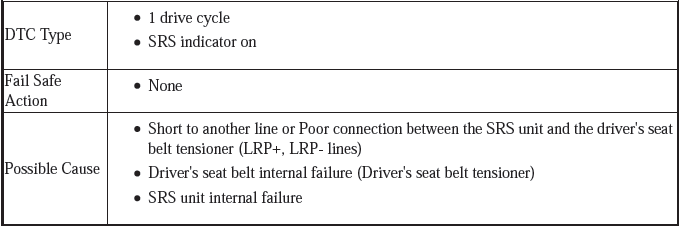

DTC B0070-11: Short to Ground in the Driver's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

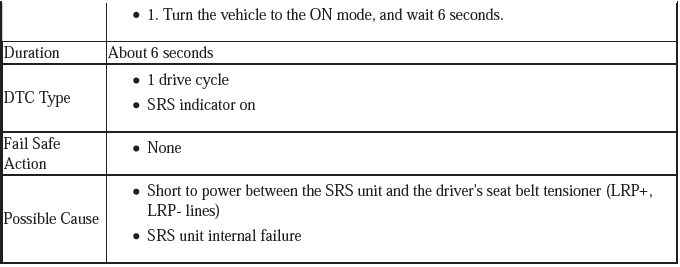

DTC B0070-12: Short to Power in the Driver's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

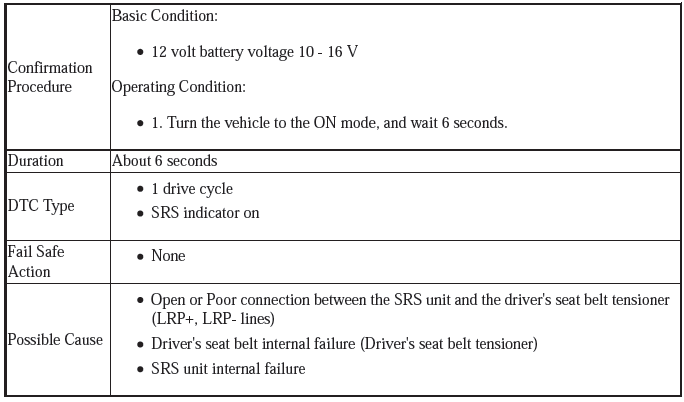

DTC B0070-13: Open or Increased Resistance in the Driver's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

DTC B0070-1A: Decreased Resistance in the Driver's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

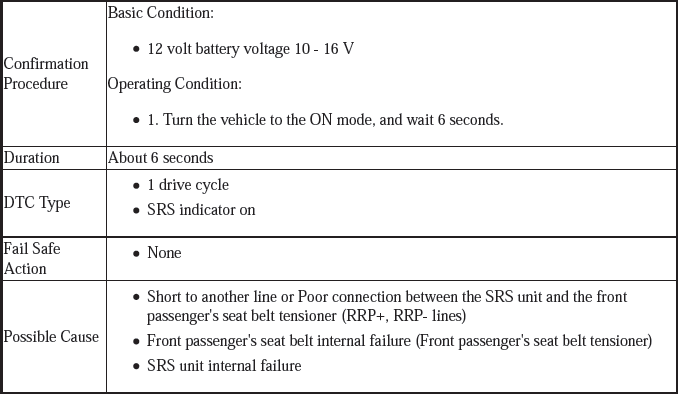

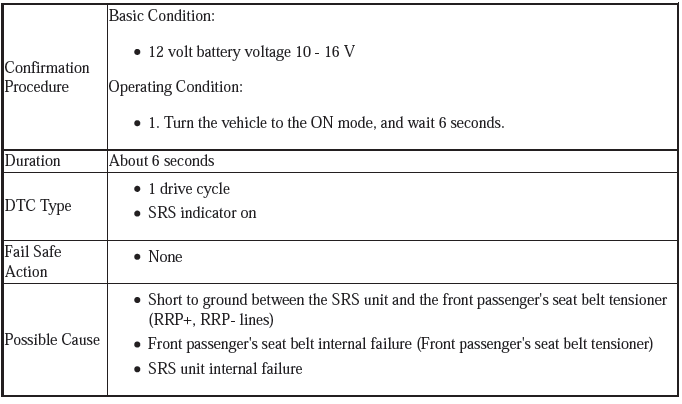

DTC B0072-11: Short to Ground in the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

DTC B0072-12: Short to Power in the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

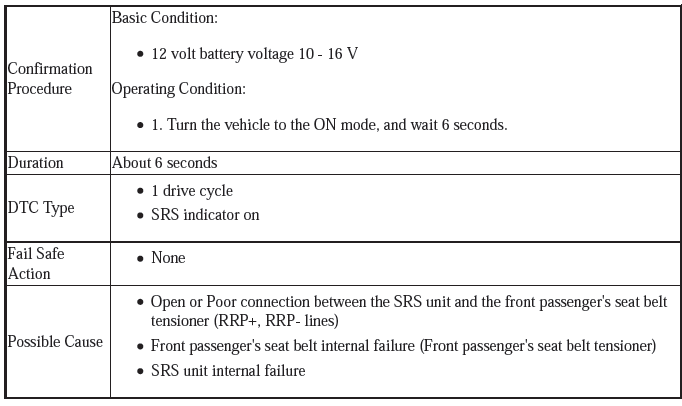

DTC B0072-13: Open or Increased Resistance in the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

DTC B0072-1A: Decreased Resistance in the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

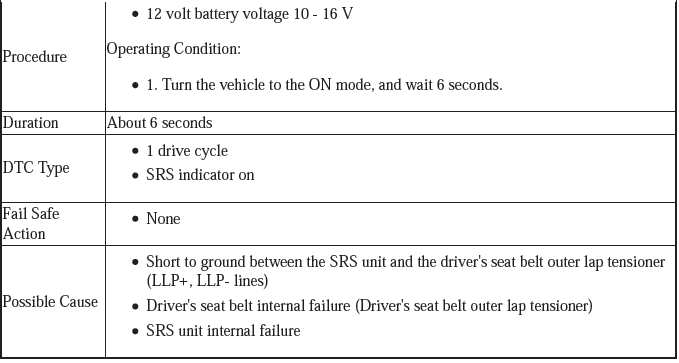

DTC B0079-11: Short to Ground in the Driver's Seat Belt Outer Lap Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

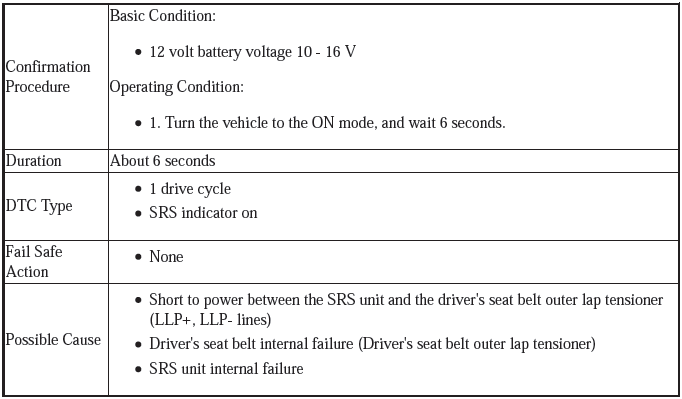

DTC B0079-12: Short to Power in the Driver's Seat Belt Outer Lap Tensioner

Supplemental Restraint System - Diagnostics

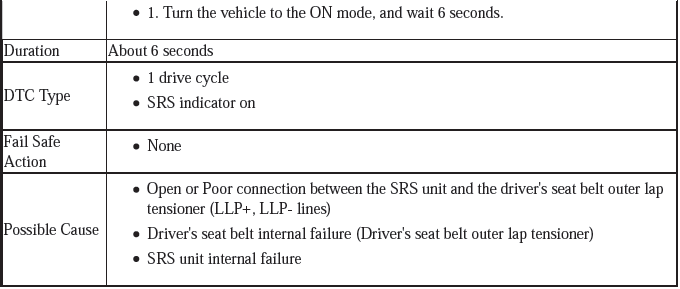

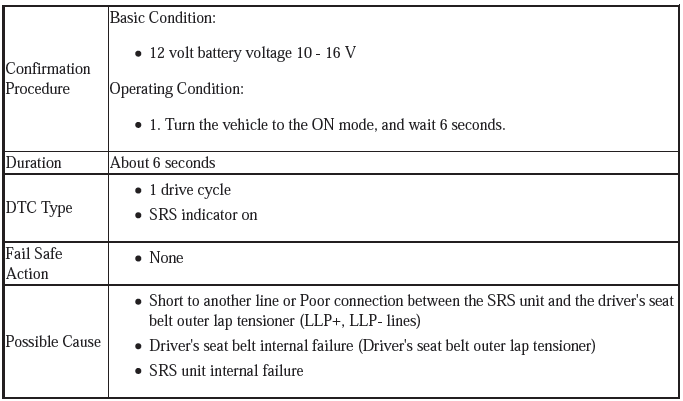

DTC B0079-13: Open or Increased Resistance in the Driver's Seat Belt Outer Lap Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0079-1A: Decreased Resistance in the Driver's Seat Belt Outer Lap Tensioner

Supplemental Restraint System - Diagnostics

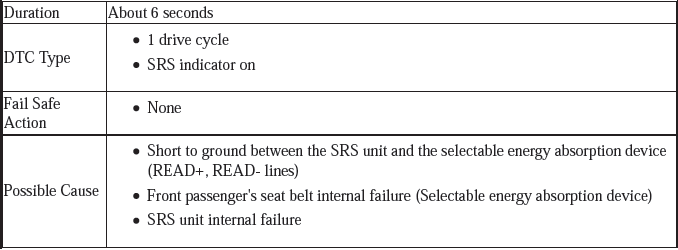

DTC B0082-11: Short to Ground in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

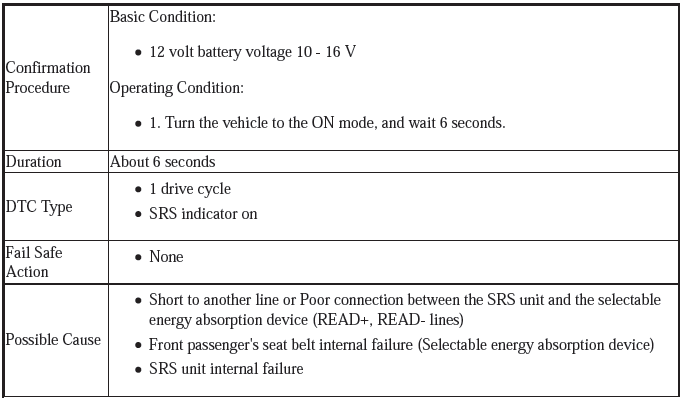

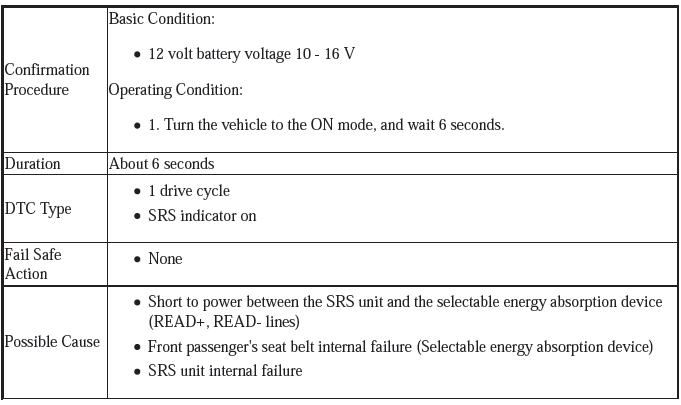

DTC B0082-12: Short to Power in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

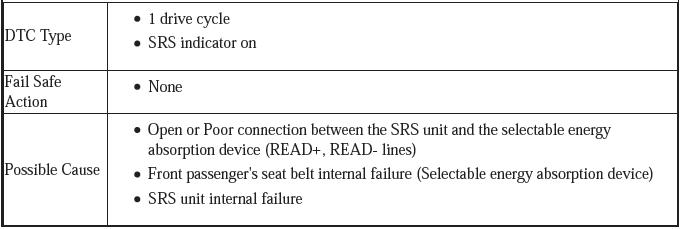

DTC B0082-13: Open or Increased Resistance in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

DTC B0082-1A: Decreased Resistance in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner

Supplemental Restraint System - Diagnostics

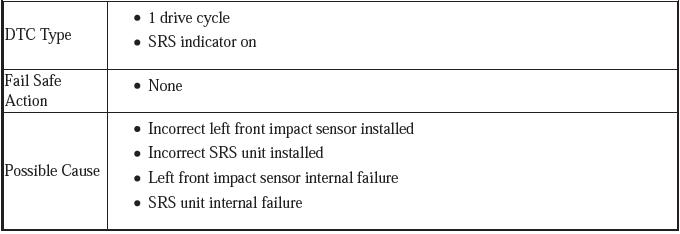

DTC B0090-4A: Internal Failure of the Left Front Impact Sensor

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

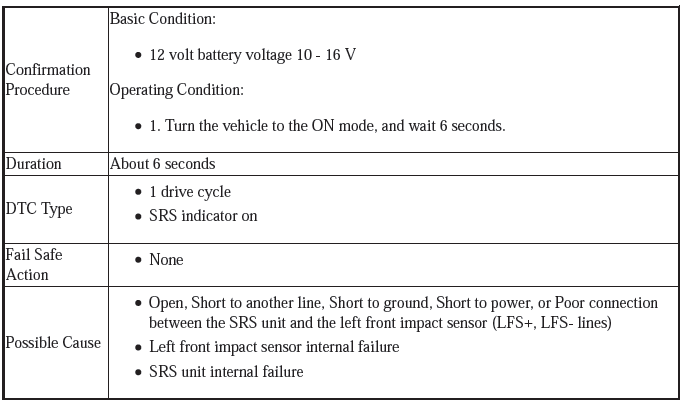

DTC B0090-87: No Signal From the Left Front Impact Sensor

Supplemental Restraint System - Diagnostics

DTC B0090-92: Internal Failure of the Left Front Impact Sensor

Supplemental Restraint System - Diagnostics

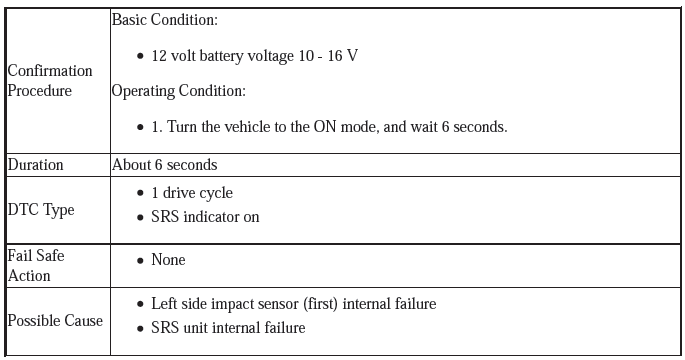

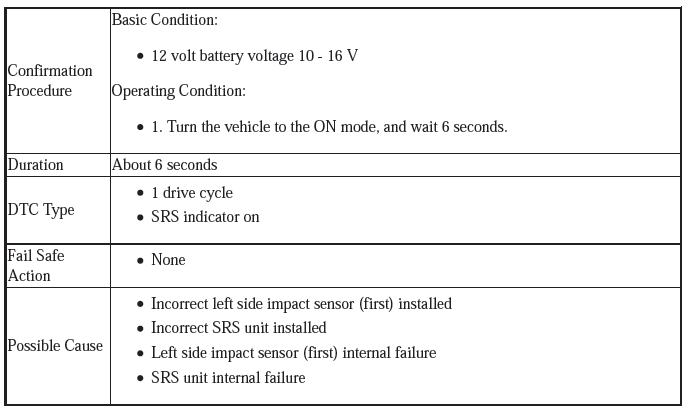

DTC B0091-4A: Internal Failure of the Left Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

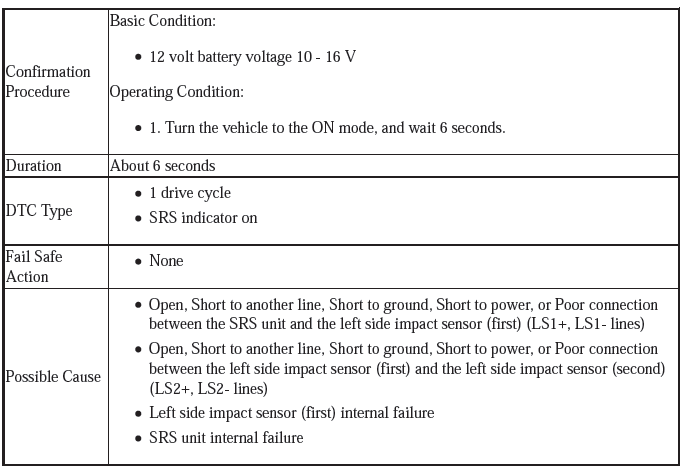

DTC B0091-87: No Signal From the Left Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

DTC B0091-92: Internal Failure of the Left Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

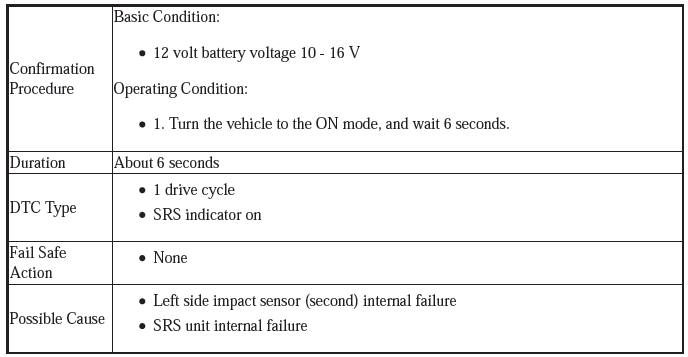

DTC B0092-4A: Internal Failure of the Left Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

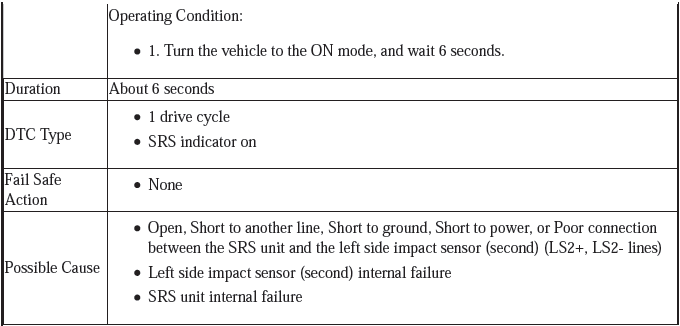

DTC B0092-87: No Signal From the Left Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

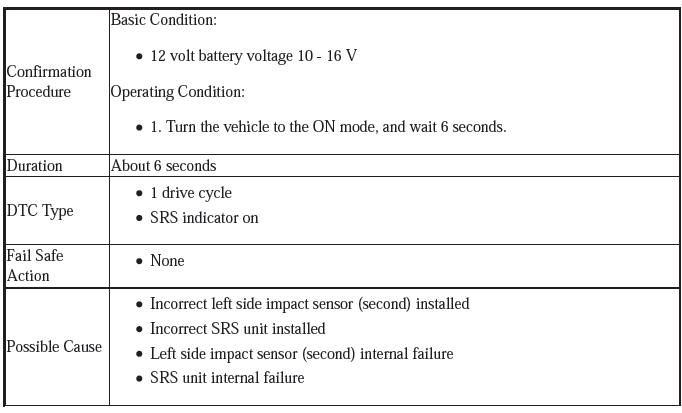

DTC B0092-92: Internal Failure of the Left Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

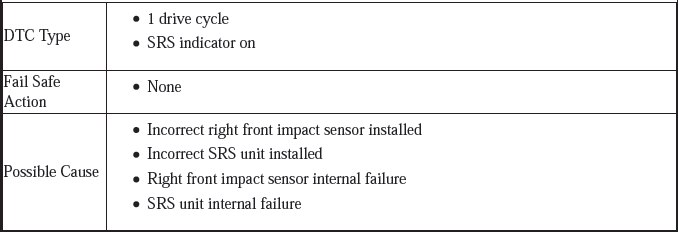

DTC B0095-4A: Internal Failure of the Right Front Impact Sensor

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

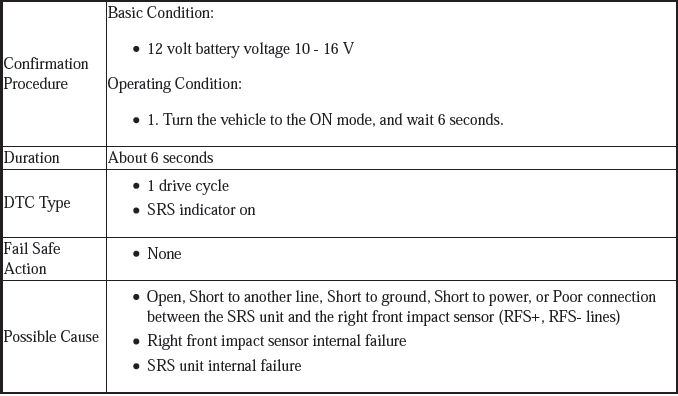

DTC B0095-87: No Signal From the Right Front Impact Sensor

Supplemental Restraint System - Diagnostics

DTC B0095-92: Internal Failure of the Right Front Impact Sensor

Supplemental Restraint System - Diagnostics

DTC B0096-4A: Internal Failure of the Right Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

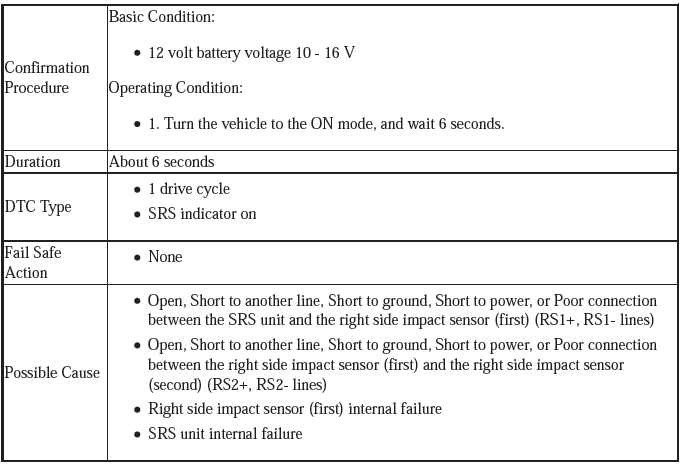

DTC B0096-87: No Signal From the Right Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

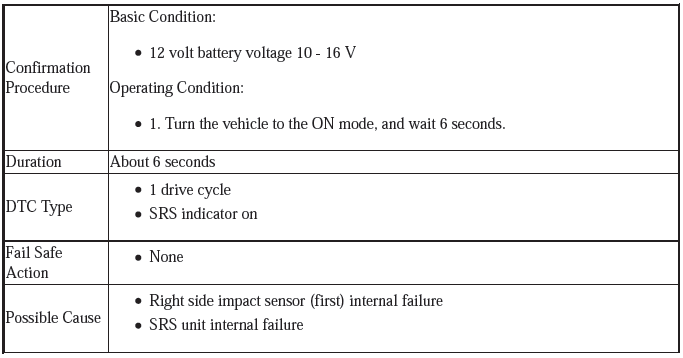

DTC B0096-92: Internal Failure of the Right Side Impact Sensor (first)

Supplemental Restraint System - Diagnostics

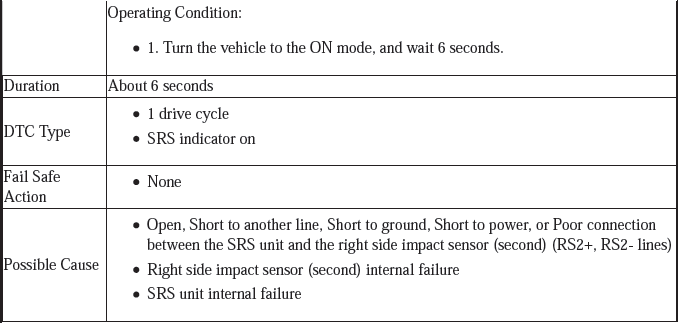

DTC B0097-4A: Internal Failure of the Right Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

DTC B0097-87: No Signal from the Right Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

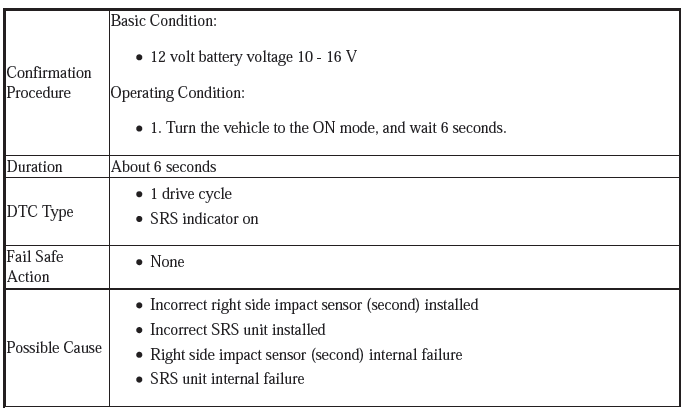

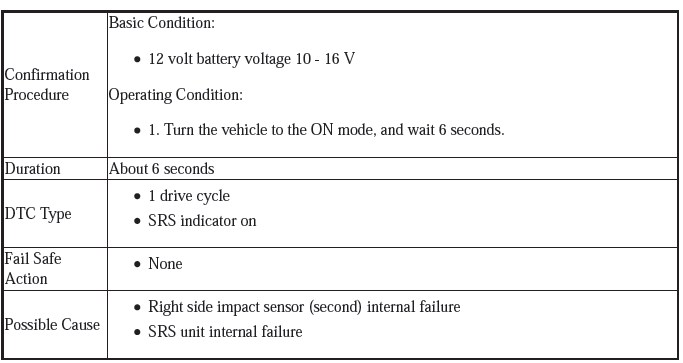

DTC B0097-92: Internal Failure of the Right Side Impact Sensor (second)

Supplemental Restraint System - Diagnostics

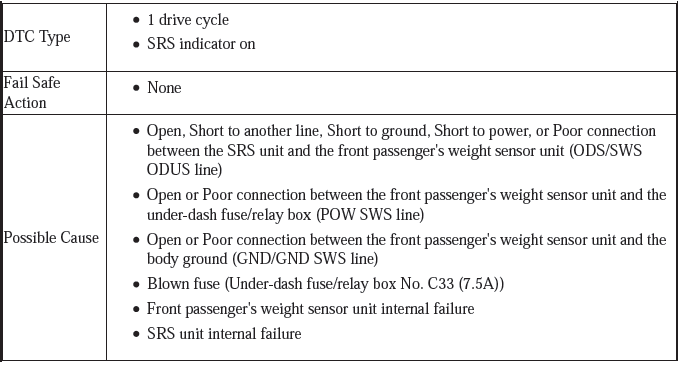

DTC B00A0-87: Lost communication with the Front Passenger's Weight Sensor Unit

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

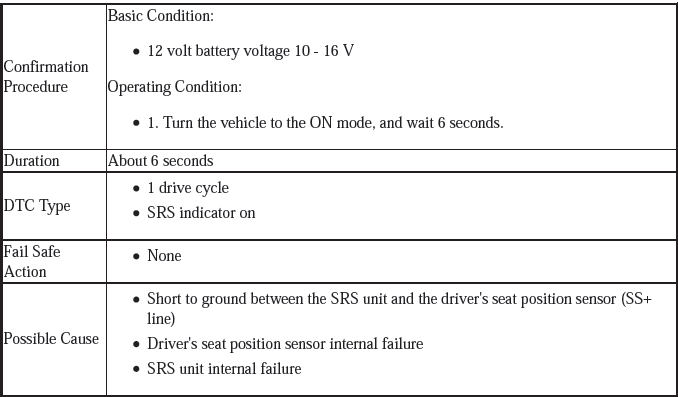

DTC B00B5-11: Short or Decreased Resistance in the Driver's Seat Position Sensor

Supplemental Restraint System - Diagnostics

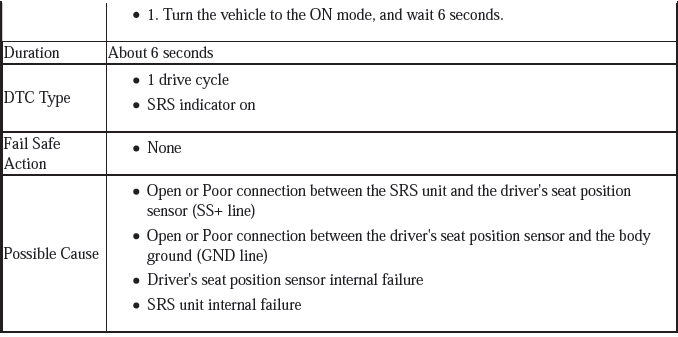

DTC B00B5-13: Open or Increased Resistance in the Driver's Seat Position Sensor

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

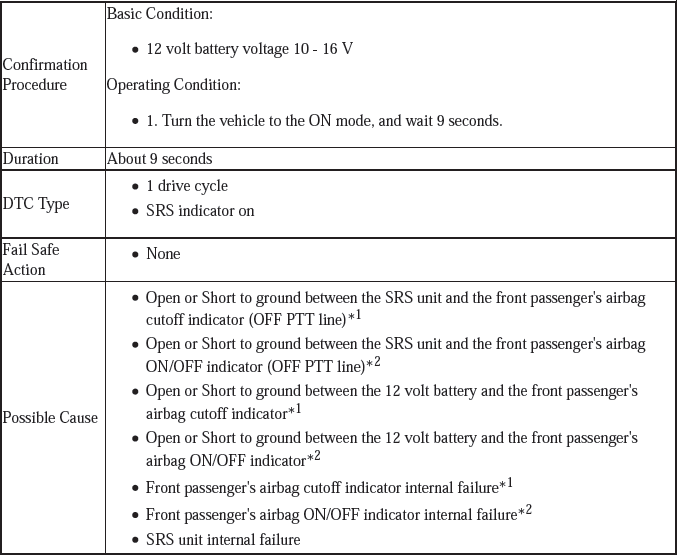

DTC B00D5-14: Open or Short to Ground in the Front Passenger's Airbag Cutoff Indicator, DTC B00D5-14: Open or Short to Ground in the Front Passenger's Airbag ON/OFF Indicator

Supplemental Restraint System - Diagnostics

*1: With front passenger's airbag cutoff Indicator
*2: With front passenger's airbag ON/OFF switch

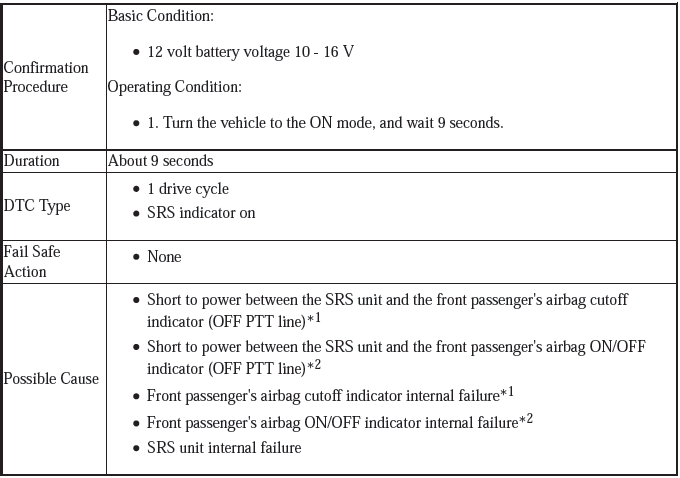

DTC B00D5-17: Short to Power in the Front Passenger's Airbag Cutoff Indicator, DTC B00D5-17: Short to Power in the Front Passenger's Airbag ON/OFF Indicator

Supplemental Restraint System - Diagnostics

*1: With front passenger's airbag cutoff Indicator
*2: With front passenger's airbag ON/OFF switch

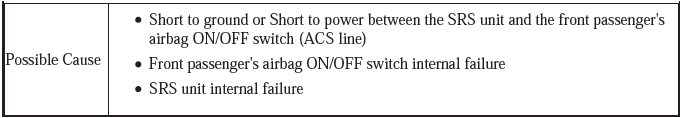

DTC B00DF-11: Short in the Front Passenger's Airbag ON/OFF Switch*

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

*: With front passenger's airbag ON/OFF switch

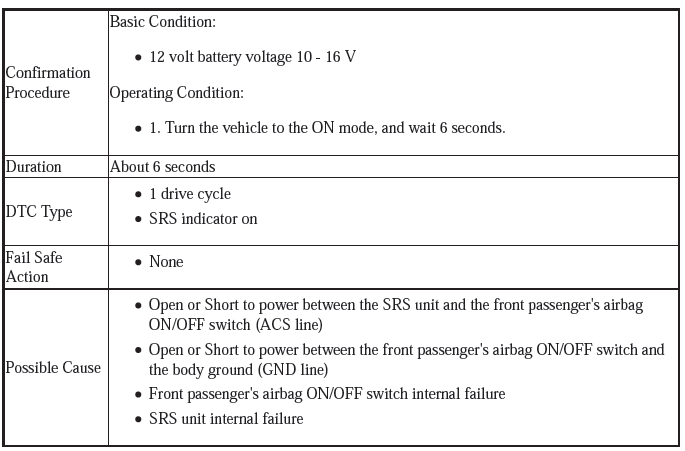

DTC B00DF-13: Open in the Front Passenger's Airbag ON/OFF Switch*

Supplemental Restraint System - Diagnostics

*: With front passenger's airbag ON/OFF switch

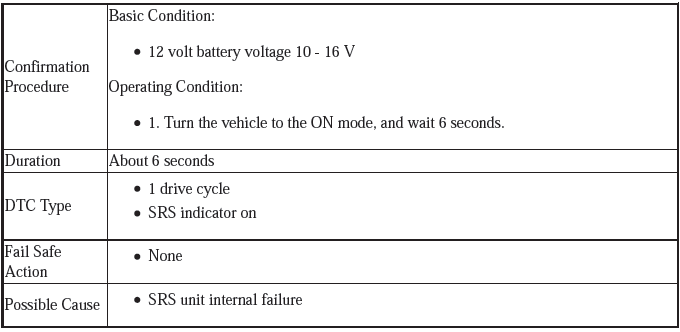

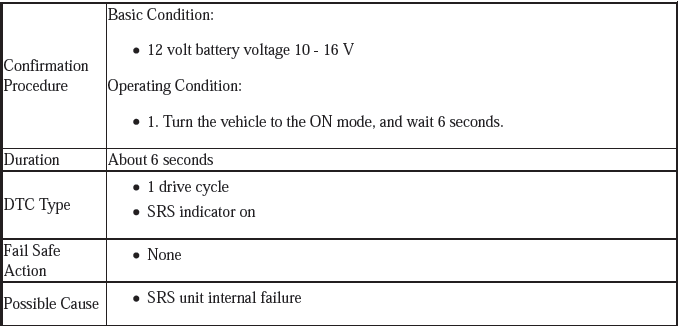

DTC B2800-49: Internal Failure of the SRS Unit

Supplemental Restraint System - Diagnostics

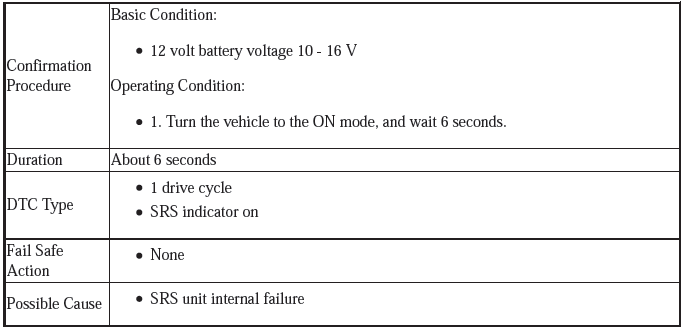

DTC B2801-49: Internal Failure of the SRS Unit

Supplemental Restraint System - Diagnostics

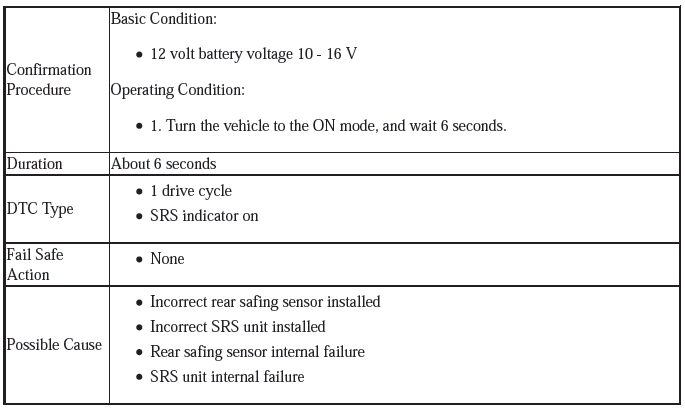

DTC B280A-4A: Internal Failure of the Rear Safing Sensor

Supplemental Restraint System - Diagnostics

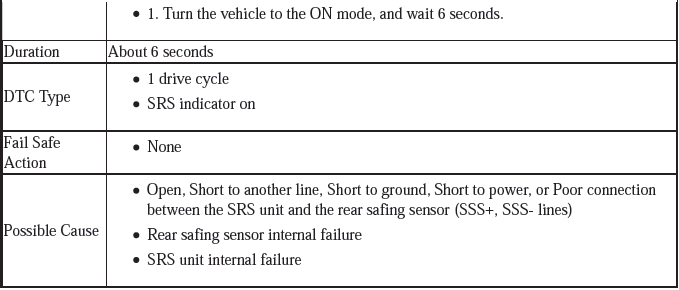

DTC B280A-87: No Signal from the Rear Safing Sensor

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

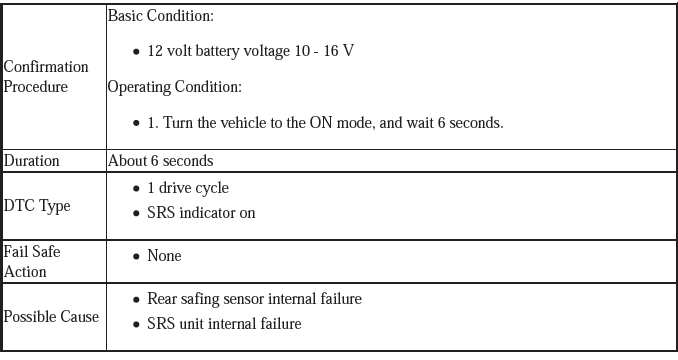

DTC B280A-92: Internal Failure of the Rear Safing Sensor

Supplemental Restraint System - Diagnostics

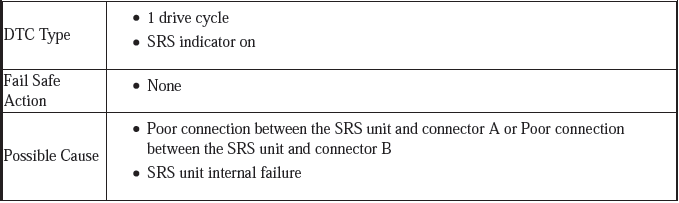

DTC B2840-13: SRS Unit Connector A Not Properly Installed, DTC B2841-13: SRS Unit Connector B Not Properly Installed

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

NOTE: If a loose connection failure occurs, DTC B2840-13 and B2841-13 are stored at same time to the SRS unit.

DTC U0101-00: Lost Communication with the PCM (PGM-FI system)

Supplemental Restraint System - Diagnostics

DTC U0155-00: Lost Communication with the Gauge Control Module

Supplemental Restraint System - Diagnostics

DTC U3000-49: Internal Failure of the SRS Unit

Supplemental Restraint System - Diagnostics

DTC U3000-51: SRS Unit Programming Error

Supplemental Restraint System - Diagnostics

    READ NEXT:

     Electrical

     Battery Management System - Service Information

    REMOVAL & INSTALLATION 12 VOLT BATTERY SENSOR REMOVAL AND INSTALLATION Removal 1. 12 Volt Battery Sensor - Remove Make sure the vehicle to the OFF (LOCK) mode. Disconnect the connector (A). R

     Battery Management System - General Information

    DESCRIPTION 12 VOLT BATTERY MANAGEMENT SYSTEM DESCRIPTION - COMPONENTS 12 Volt Battery Sensor The 12 volt battery sensor is located between the 12 volt battery negative pole and the 12 volt battery g

    SEE MORE:

     DTC Troubleshooting 71-11, 71-12, 71-13, 71-14, 71-15, 71-16: Different Diameter Tire Malfunction

    NOTE: The DTC will be indicated when the vehicle has a different diameter tire(s) compared to the other tires. Before you troubleshoot, review the general troubleshooting information. 1. Problem verification: Check the tires for proper inflation and the correct size. Turn the vehicle to t

     Keyless Access System Symptom Troubleshooting - The Engine Starts But Stalls Immediately

    1. Keyless access system check 1. Turn the vehicle to the ON mode. Check the immobilizer indicator. Is the immobilizer indicator come on? YES Go to step 2. NO Go to step 6. 2. Keyless access system check 2. Check the immobilizer indicator. Is the immobilizer indicator blinking? YES Go to step

    © 2019-2024 Copyright www.hohrv2.com
