Honda HR-V: AWD System Symptom Troubleshooting - Will Not Go Into AWD Mode, Poor Traction, Poor Acceleration (AT Start), Poor Climbing Ability (AWD)

Honda HR-V (2015-2021) Service Manual / Driveline & Axles / Differential - Testing & Troubleshooting / Symptom Troubleshooting / AWD System Symptom Troubleshooting - Will Not Go Into AWD Mode, Poor Traction, Poor Acceleration (AT Start), Poor Climbing Ability (AWD)

1. Rear differential clutch check.

  1. Do the rear differential clutch test.

Is the test result OK?

YES

Check the following items.

  • Check the rear differential fluid level and the fluid condition.
  • Check for rear differential fluid leaks.
  • Do the OIL PRESSURE CONTROL TEST in the FUNCTIONAL TEST with the HDS.
  • Do the rear differential fluid pressure sensor test.

NO

Do the repair depending on the test result.

AWD SYSTEM INDICATOR DOES NOT COME ON (AWD)

Remedy

AWD System Symptom Troubleshooting - AWD system indicator does not come on (AWD)

AWD SYSTEM INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED (AWD)

Remedy

AWD System Symptom Troubleshooting - AWD system indicator does not go off, and no DTCs are stored (AWD)

AWD SYSTEM IS STUCK IN AWD MODE (AWD)

Remedy

AWD System Symptom Troubleshooting - AWD system is stuck in AWD mode (AWD)

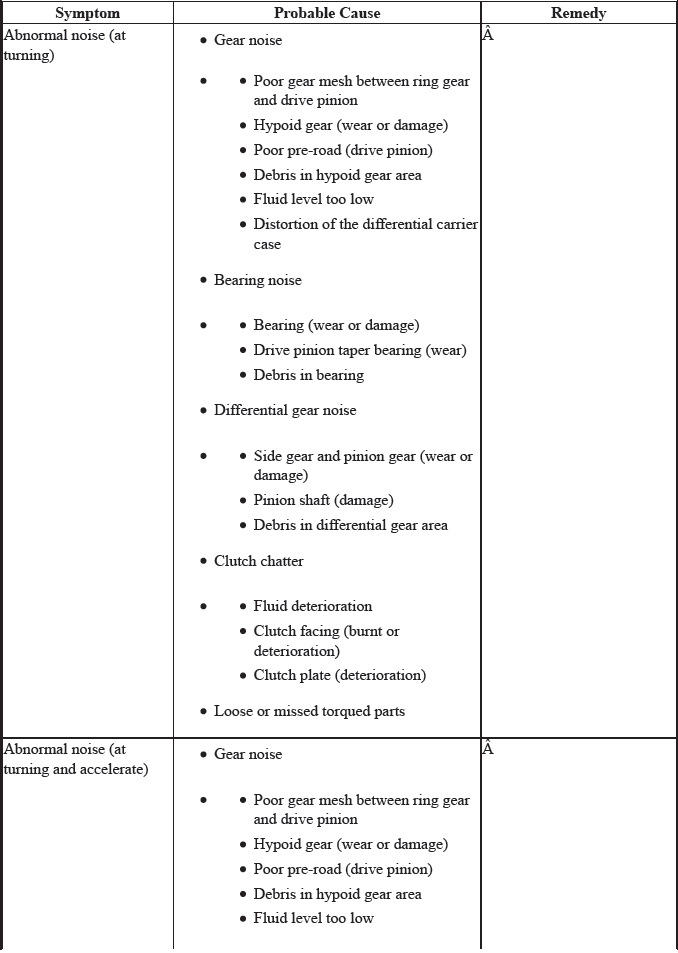

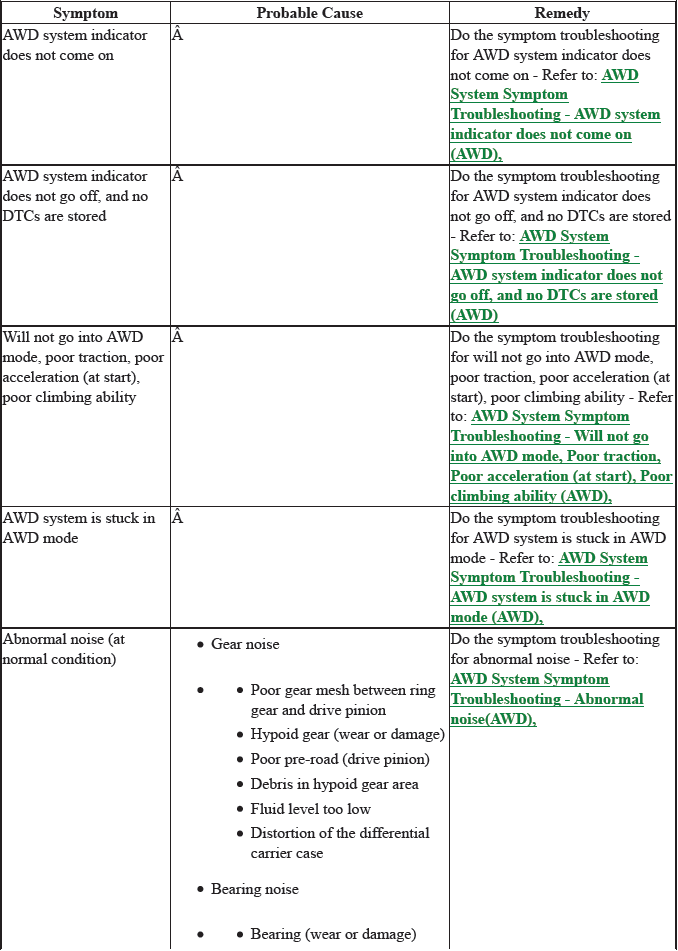

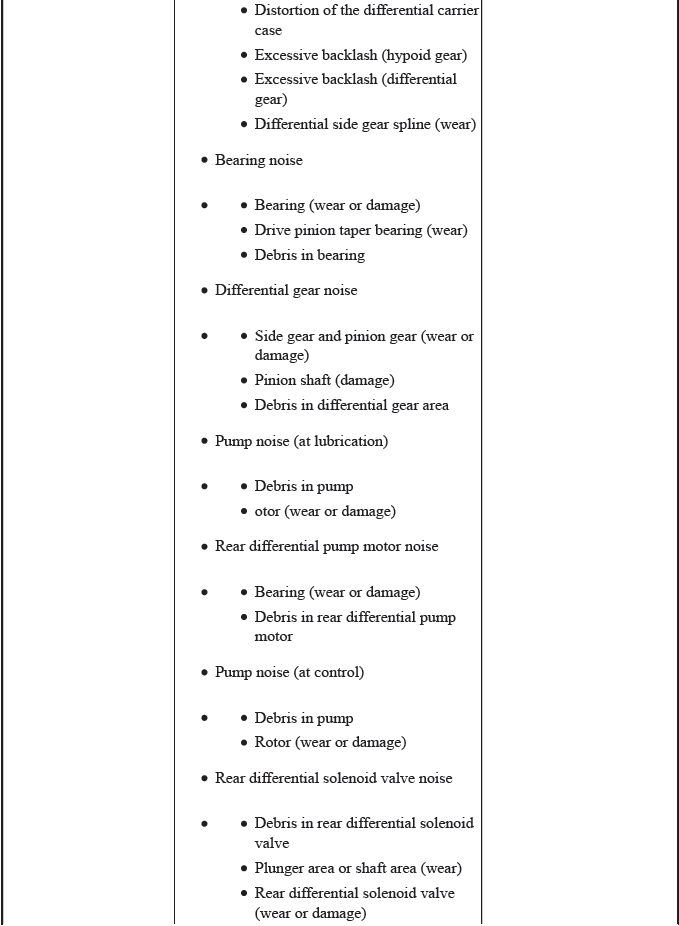

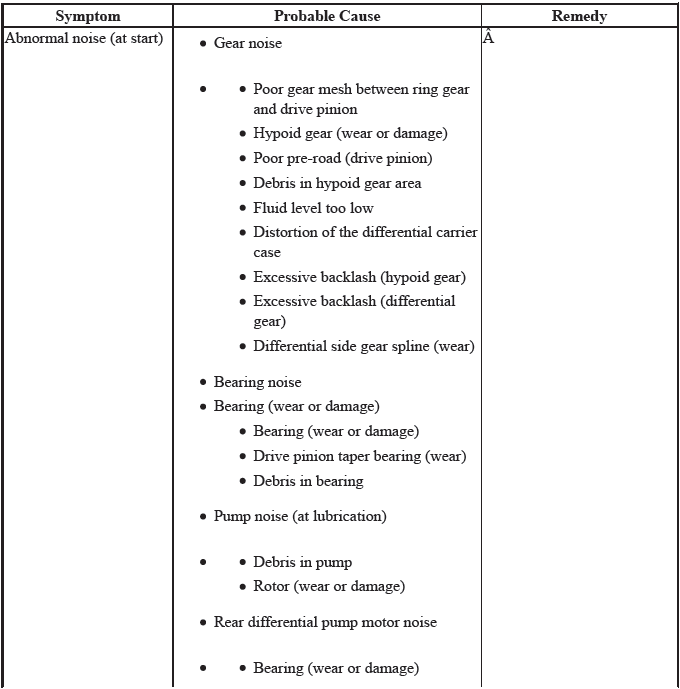

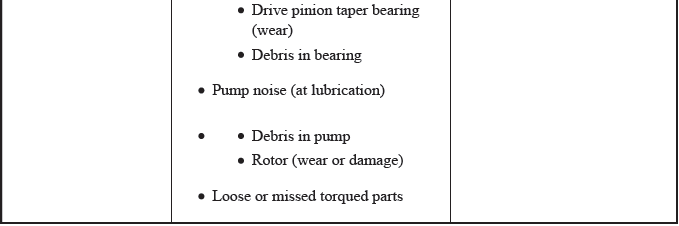

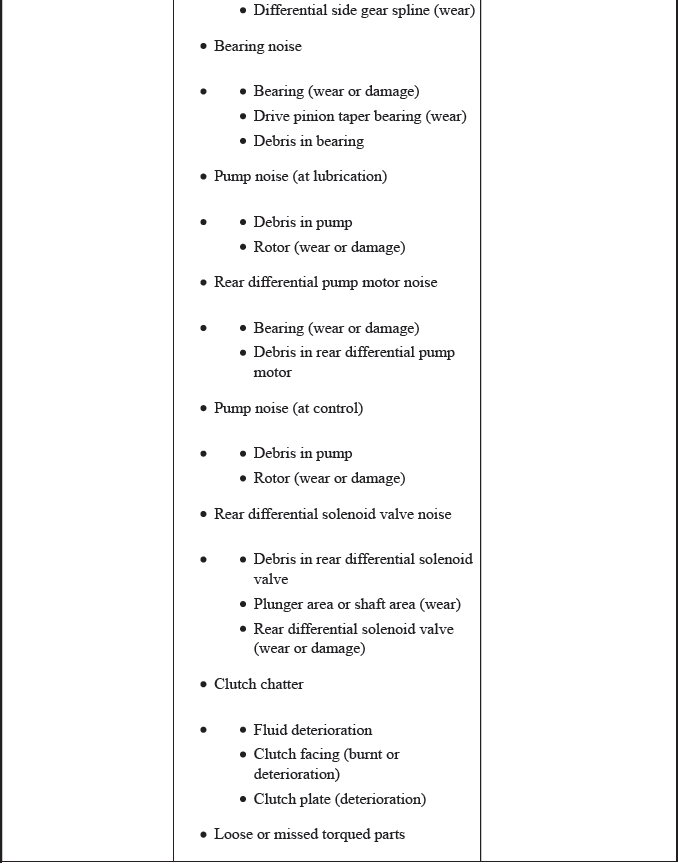

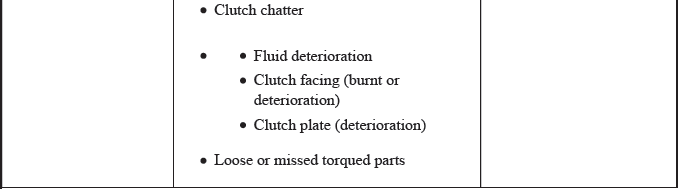

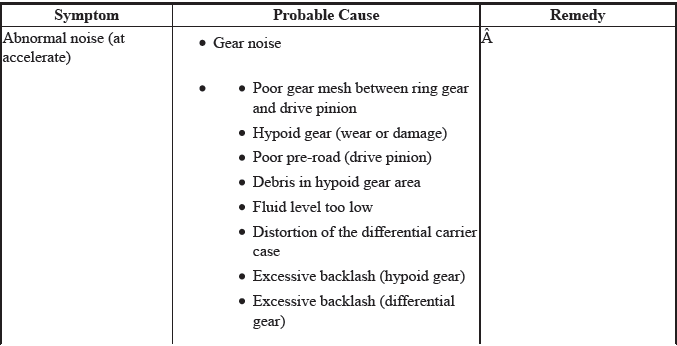

AWD WITH INTELLIGENT CONTROL SYSTEM SYMPTOM TROUBLESHOOTING INDEX (AWD)

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

Differential - Testing & Troubleshooting

    READ NEXT:

     Abnormal Noise (AT Accelerate) (AWD)

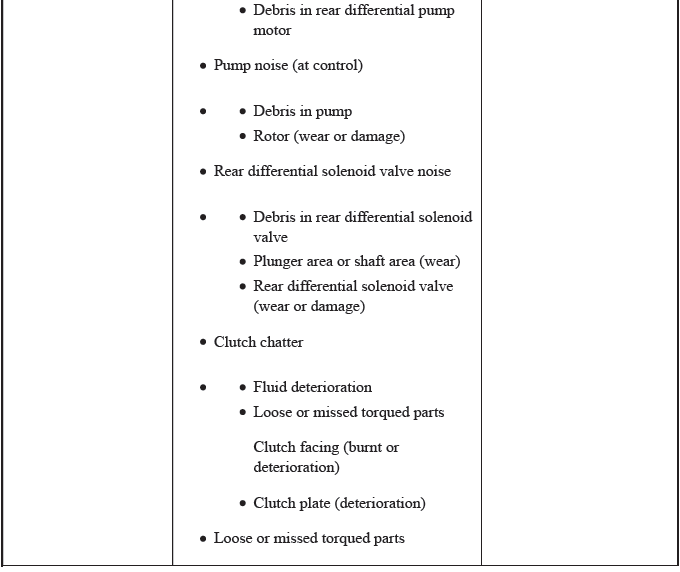

    Probable Cause Gear noise Poor gear mesh between ring gear and drive pinion Hypoid gear (wear or damage) Poor pre-road (drive pinion) Debris in hypoid gear area Fluid level too low Distortion o
