Honda HR-V: Circuit Diagram

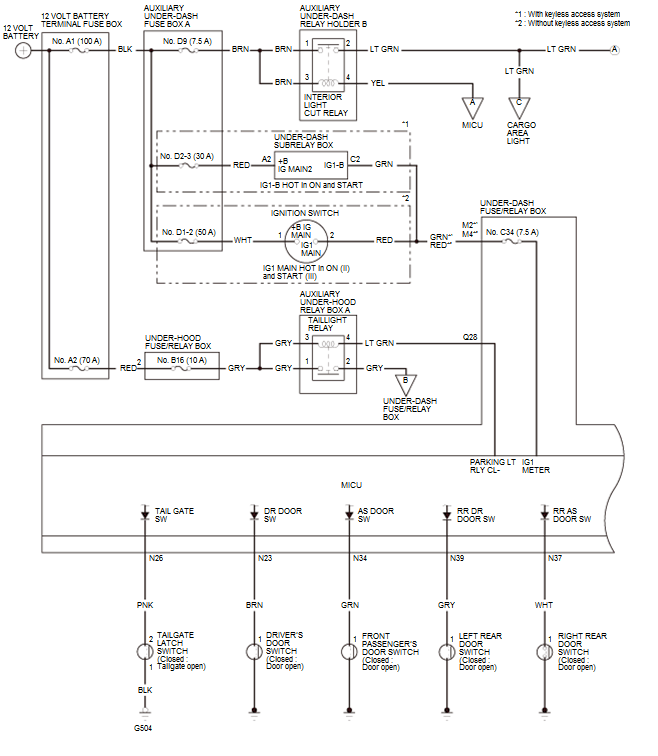

ENTRY LIGHTS CONTROL SYSTEM CIRCUIT DIAGRAM

Interior Lighting - Testing & Troubleshooting

Interior Lighting - Testing & Troubleshooting

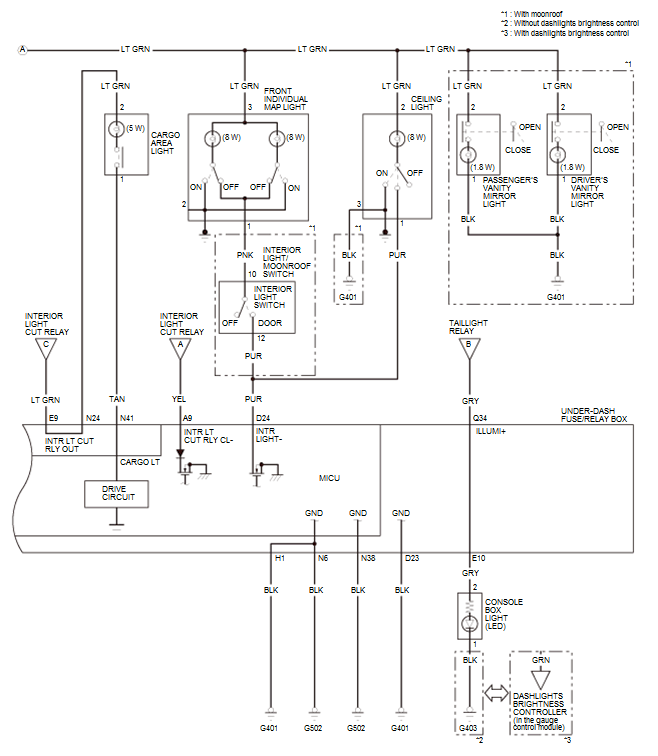

INTERIOR LIGHTS CIRCUIT DIAGRAM

Interior Lighting - Testing & Troubleshooting

Interior Lighting - Testing & Troubleshooting

WIRING DIAGRAM

AMBIENT LIGHT, CARGO AREA LIGHT, CEILING LIGHT, GLOVE BOX LIGHT, INDIVIDUAL MAP LIGHTS AND VANITY MIRROR LIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Interior Lights

DASHLIGHTS ELECTRONIC WIRING DIAGRAM

Refer to: Instrument Cluster

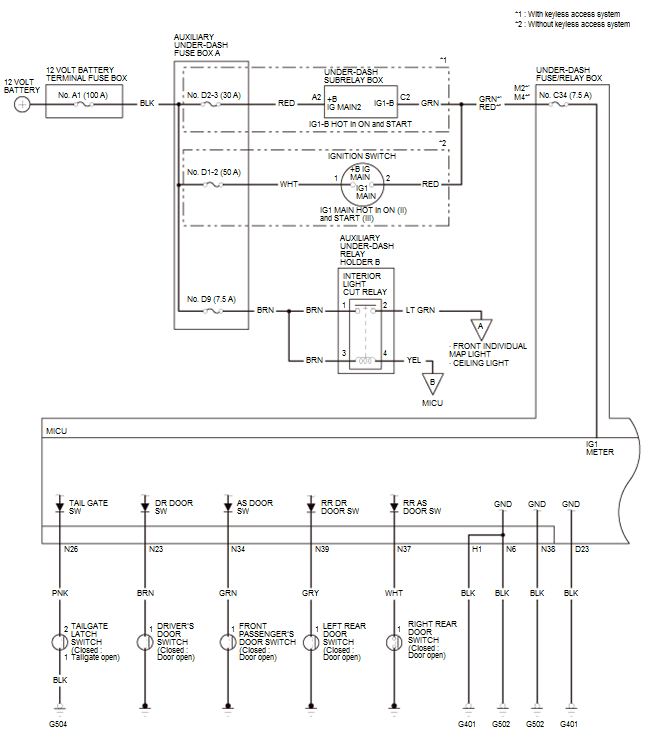

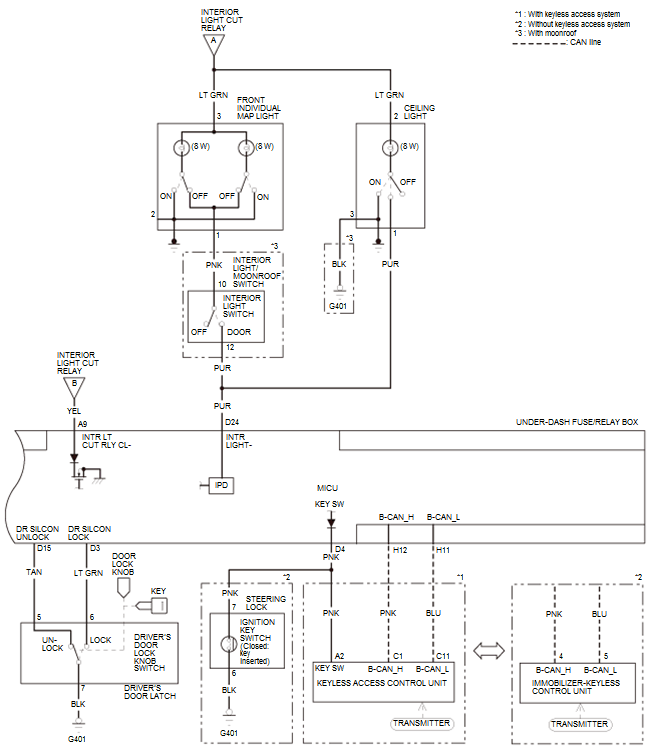

ENTRY LIGHT CONTROL SYSTEM ELECTRONIC WIRING DIAGRAM

Refer to: Interior Lights

COMPONENT LOCATION INDEX

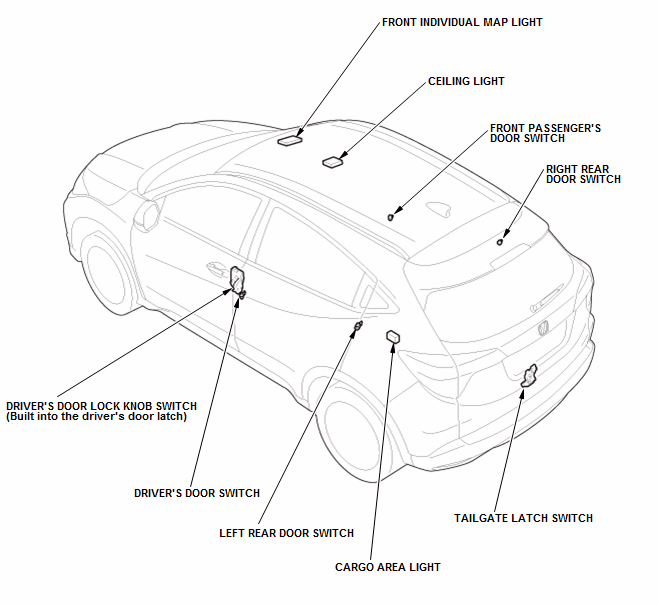

ENTRY LIGHTS CONTROL SYSTEM COMPONENT LOCATION INDEX

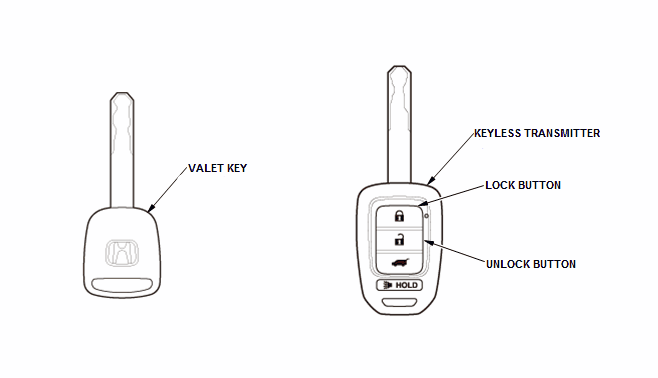

Without Keyless Access System

Interior Lighting - Testing & Troubleshooting

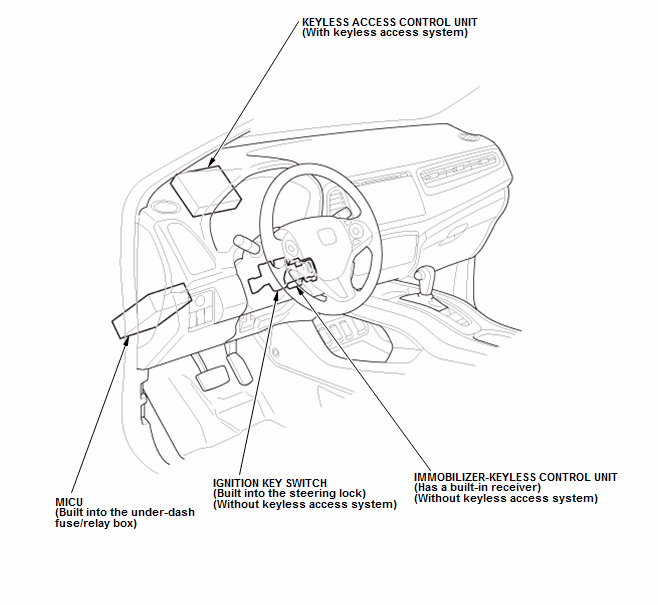

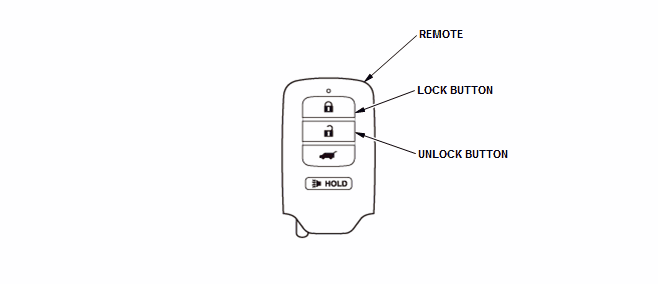

With Keyless Access System

Interior Lighting - Testing & Troubleshooting

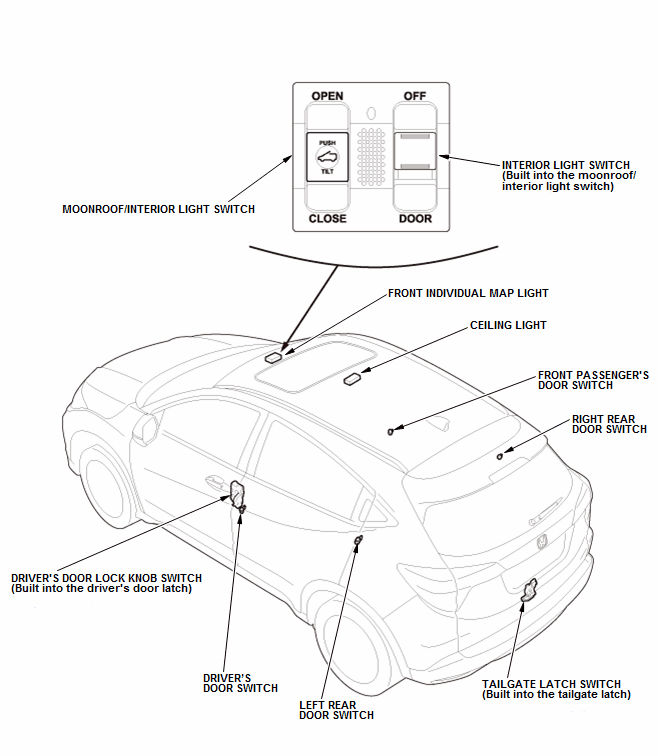

With Moonroof

Interior Lighting - Testing & Troubleshooting

Without Moonroof

Interior Lighting - Testing & Troubleshooting

Interior Lighting - Testing & Troubleshooting

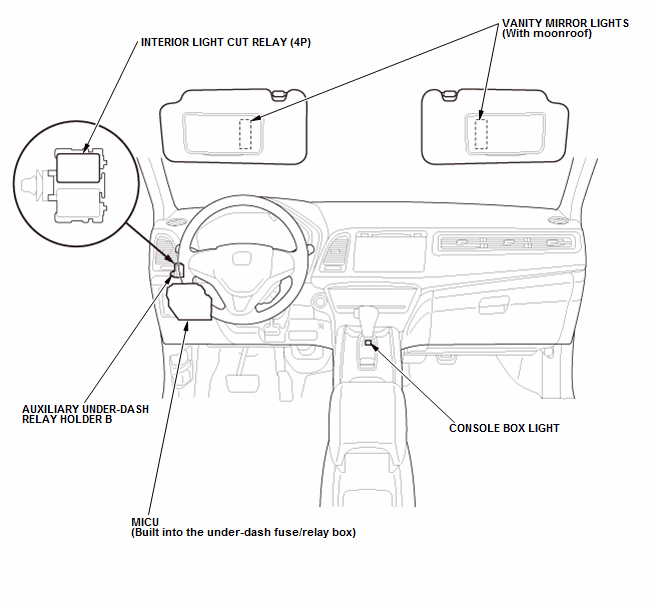

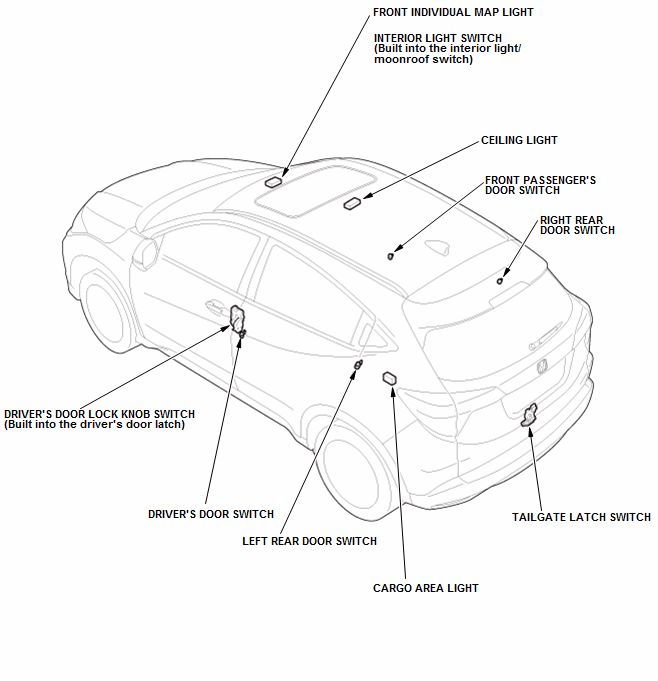

INTERIOR LIGHTS COMPONENT LOCATION INDEX

With moonroof

Interior Lighting - Testing & Troubleshooting

Without moonroof

Interior Lighting - Testing & Troubleshooting

Interior Lighting - Testing & Troubleshooting
