Honda HR-V: CVT Differential Carrier Disassembly and Reassembly (CVT)
Special Tools Required
Installer Attachment 40 mm 07LAD-PW50601
.png)
Exploded View

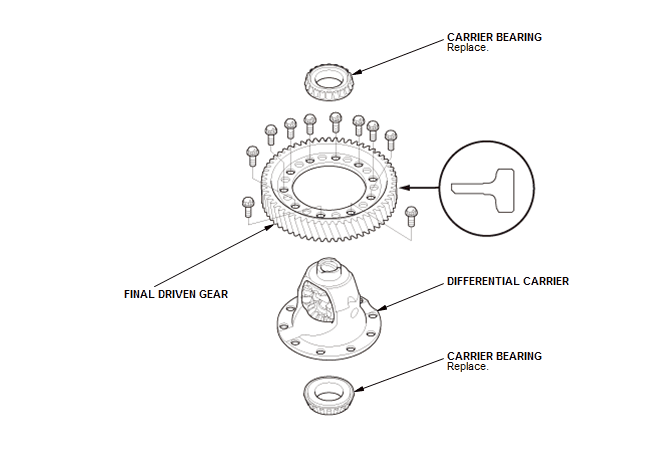

1. Differential - Exploded View
.png)
Fig. 32: Exploded View Of Differential
Disassembly
NOTE: The carrier bearing and the carrier bearing outer race should be
replaced as a set.
1. Differential Carrier Bearing - Remove
Transmission housing side
.png)
Torque converter housing side
.png)

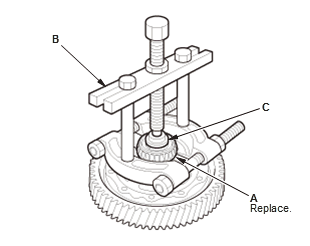

- Remove the carrier bearings (A) using a commercially available bearing
puller (B)
and a spacer (C).

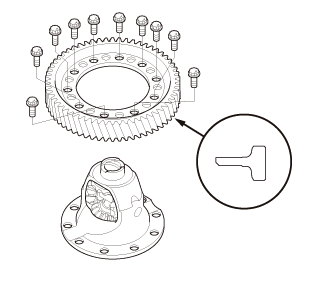

2. Final Driven Gear - Remove
.png)
NOTE: The final driven gear bolts have left-hand threads.
Reassembly
NOTE:
- The carrier bearing and the carrier bearing outer race should be
replaced as a set.
- Adjust the carrier bearing preload after replacing the carrier bearing
and the carrier bearing outer race.
- Apply a light coat of clean transmission fluid on all parts before
installation.
1. Final Driven Gear - Install
.png)

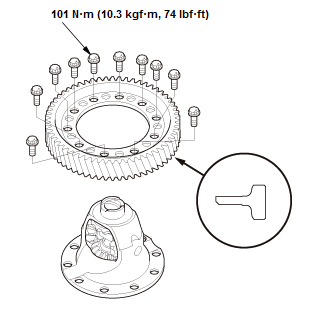

Fig. 33: Final Driven Gear With Torque Specifications
NOTE:
- The final driven gear bolts have left-hand threads.
- Tighten the bolts to the specified torque in a crisscross pattern in at
least two steps.
2. Differential Carrier Bearing - Install
Transmission housing side
.png)
Torque converter housing side
.png)

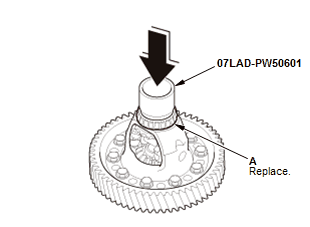

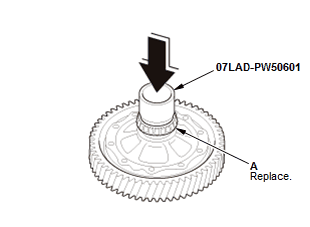

- Install the carrier bearing (A) until it bottoms using the 40 mm
installer attachment
and a press.
