Honda HR-V: CVT Differential Oil Seal Replacement (CVT)
Special Tools Required
Driver Handle, 15 x 135L 07749-0010000
.png)
Oil Seal Driver, 65 mm 07JAD-PL90100
.png)
Oil Seal Driver Attachment, 58 mm
07JAD-PH80101
.png)
Replacement
NOTE: Apply a light coat of clean transmission fluid on all parts before
installation.
Transmission Housing Side
1. Differential Oil Seal - Remove
.png)

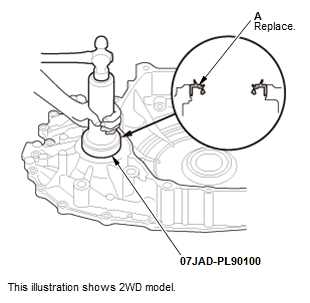

2. Differential Oil Seal - Install
.png)
- Install the differential oil seal (A) flush with the transmission
housing using
the 15 x 135L driver handle and the 58 mm oil seal driver attachment.
Torque Converter Housing Side

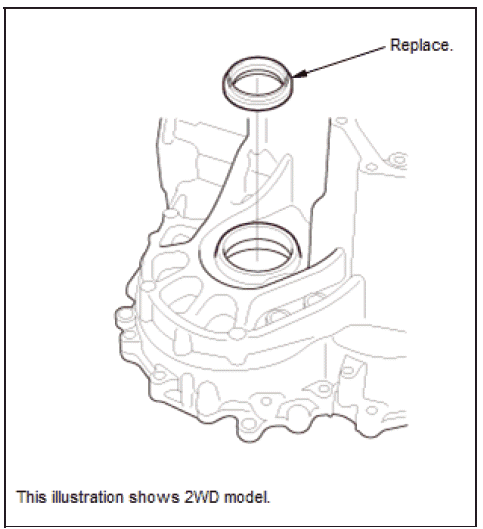

3. Differential Oil Seal - Remove
.png)

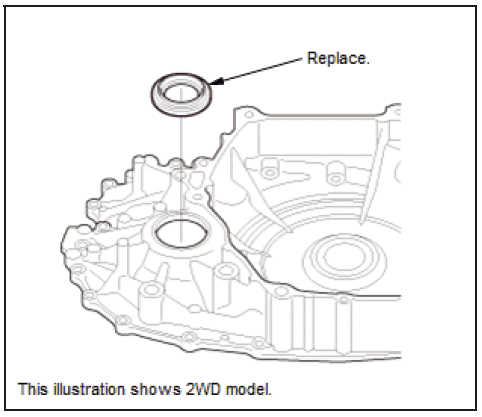

4. Differential Oil Seal - Install
.png)
- Install the differential oil seal (A) flush with the torque converter
housing using the 65 mm oil seal driver.
CVT DRIVE PULLEY SPEED SENSOR REMOVAL AND INSTALLATION (CVT)
Removal and Installation
NOTE: Keep all foreign particles out of the transmission.
1. Vehicle - Lift
2. Engine Undercover - Remove (With 2WD)
3. CVT Drive Pulley Speed Sensor - Remove
.png)

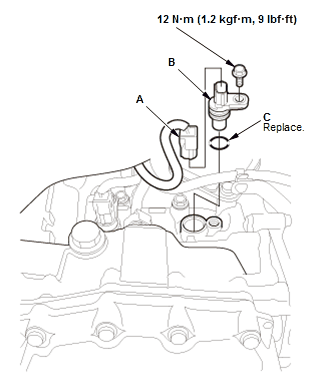

Fig. 1: CVT Drive Pulley Speed Sensor With Torque Specifications
- Disconnect the connector (A).
NOTE: Check the connector for corrosion, dirt, or oil, and clean or
repair if necessary.
- Remove the CVT drive pulley speed sensor (B) with the O-ring (C).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE:
