Honda HR-V: Driver's Airbag Removal and Installation (KA/KC)
Removal and Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE: If replacing the driver's airbag after deployment, refer to Component
Replacement/Inspection After
Deployment for a complete list of other parts that must also be replaced.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.

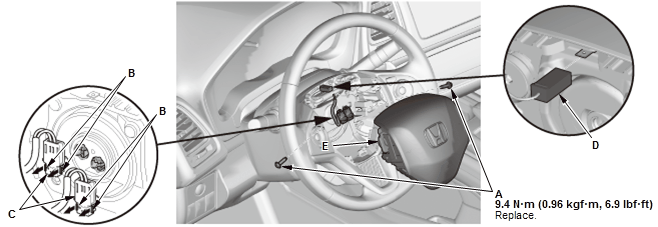

2. Driver's Airbag - Remove
- Remove the bolts (A).
- Pull up on both locking tabs (B) to disconnect the connectors (C).
NOTE: Be careful not to damage the connectors
- Disconnect the connector (D)
- Remove the driver's airbag (E).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE:
- During installation, install the new bolts to the specified torque.

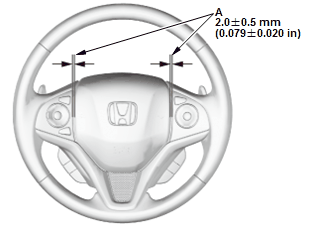

- Make sure the clearance (A) between the steering wheel and horn
pad is the specified value.
- After connecting the negative cable to the 12 volt battery, make
sure the horn works properly.
4. SRS Operation - Confirm
- Do the 12 volt battery terminal reconnection procedure, turn the vehicle
to the ON mode, and check
that the SRS indicator comes on for about 6 seconds and then goes off.
