Honda HR-V: Driver's Seat Position Sensor Removal and Installation

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

NOTE: Do not turn the vehicle to the ON mode, while removing or installing the driver's seat position sensor.

1. Front Seat - Remove

2. Driver's Seat Position Sensor - Remove

Supplemental Restraint System - Service Information

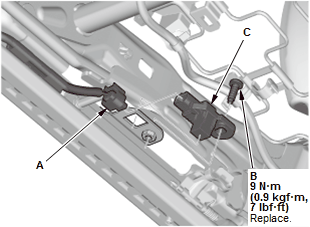

  1. Disconnect the connector (A)
  2. Remove the bolt (B), then remove the driver's seat position sensor (C).

3. All Removed Parts - Install

  1. Install the all removed parts in the reverse order of removal.

    NOTE:

    • During installation, install the new bolt to the specified torque.
    • Be sure to install the harness so it is not pinched or interferes with other parts.
    • After replacing the driver's seat position sensor with a new one, check the driver's seat position sensor operation.

4. SRS Operation - Confirm

  1. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
