1. Problem verification.

  1. Start the engine.
  2. Check the electric parking brake system indicator.

Does the electric parking brake system indicator come on, then go off?

YES

Intermittent failure, the system is OK at this time.

NO

Go to step 2.

2. DTC check.

  1. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
  2. Check for DTCs with the HDS.

Parking Brake System - Testing & Troubleshooting

Are there DTCs indicated?

YES

Go to indicated DTC's troubleshooting.

NO

Go to step 3.

3. Gauge control module operation check.

  1. Do the gauge control module self-diagnostic function.

Is the gauge control module OK?

YES

Go to step 4.

NO

Replace the gauge control module.

4. Body electrical system DTC check.

  1. Check for DTCs in the gauge control module with the HDS.

Parking Brake System - Testing & Troubleshooting

Is DTC indicated?

YES

Go to indicated DTC's troubleshooting.

NO

Go to step 5.

5. Fuse check.

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Check the following fuse.

Parking Brake System - Testing & Troubleshooting

Is the fuse OK?

YES

The fuse is OK. Reinstall the fuse, then go to step 6.

NO

Replace the fuse. Turn the vehicle to the ON mode, then to the OFF (LOCK) mode. If the fuse blows again, repair a short to ground in the No. C27 (7.5 A) fuse circuit.

6. Open wire check (IG1 VSA/EPS line).

  1. Disconnect the following connector.

Electric parking brake control unit 30P connector

  1. Turn the vehicle to the ON mode.

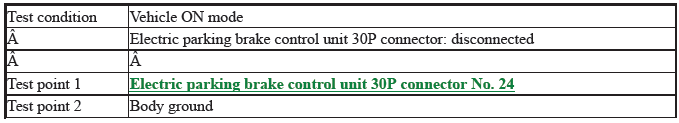

  2. Measure the voltage between test points 1 and 2.

Parking Brake System - Testing & Troubleshooting

Is there battery voltage?

YES

The IG1 VSA/EPS wire is OK. Go to step 7.

NO

Repair an open in the IG1 VSA/EPS wire between the No. C27 (7.5 A) fuse in the under-dash fuse/relay box and the electric parking brake control unit.

7. Open wire check (GND lines).

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Reconnect the following connector.

Electric parking brake control unit 30P connector

  1. Turn the vehicle to the ON mode.

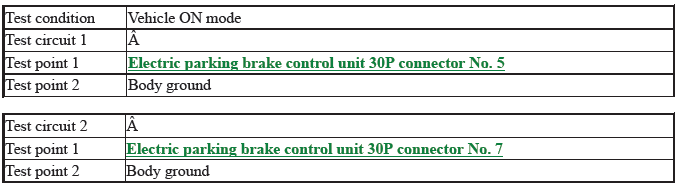

  2. Measure the voltage between test points 1 and 2.

Parking Brake System - Testing & Troubleshooting

Is there 0.1 V or more?

YES

Repair an open or high resistance in the GND wires between the electric parking brake control unit and body ground (G503) or loose the ground bolt.

NO

The GND wires are OK. Go to step 8.

8. Open wire check (F-CAN_H, F-CAN_L lines).

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the following connectors.

Electric parking brake control unit 30P connector

Gauge control module connector A (32P)

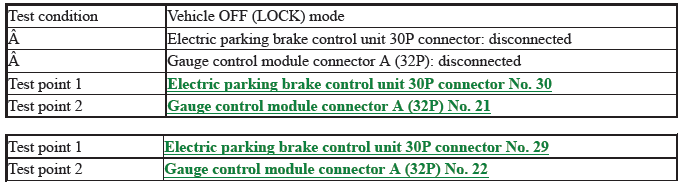

  1. Check for continuity between test points 1 and 2.

Parking Brake System - Testing & Troubleshooting

Is there continuity?

YES

The F-CAN_H and F-CAN_L wires are OK. Go to step 9.

NO

Repair an open in the F-CAN_H and/or F-CAN_L wires between the gauge control module and the electric parking brake control unit.

9. Electric parking brake control unit check (update or substitution).

  1. Reconnect the following connectors.

Electric parking brake control unit 30P connector

Gauge control module connector A (32P)

  1. Update the electric parking brake control unit if it does not have the latest software. If the unit already has the latest software, substitute a known-good electric parking brake control unit.
  2. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
  3. Check the electric parking brake system indicator.

Does the electric parking brake system indicator come on, then go off?

YES

If the electric parking brake control unit was updated, troubleshooting is complete. If the electric parking brake control unit was substituted, replace the original electric parking brake control unit.

NO

Check for loose terminals and poor connections in the electric parking brake control unit 30P connector.

If the electric parking brake control unit was updated, substitute a known-good electric parking brake control unit and recheck. If the electric parking brake control unit was substituted and the symptom/indication is still present, replace the original electric parking brake control unit.

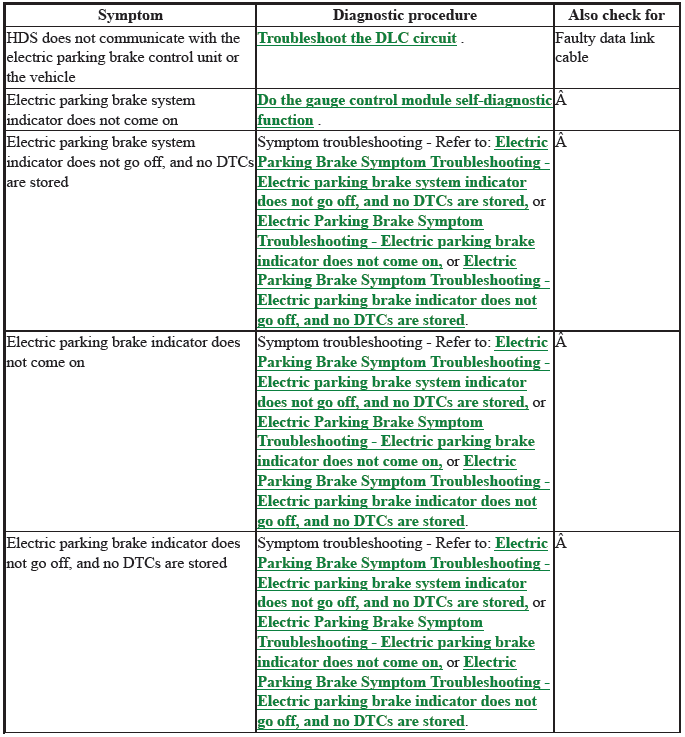

ELECTRIC PARKING BRAKE SYMPTOM TROUBLESHOOTING INDEX

Parking Brake System - Testing & Troubleshooting

ELECTRIC PARKING BRAKE INDICATOR DOES NOT COME ON

Refer to: Electric Parking Brake Symptom Troubleshooting - Electric parking brake indicator does not come on

ELECTRIC PARKING BRAKE INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED

Refer to: Electric Parking Brake Symptom Troubleshooting - Electric parking brake indicator does not go off, and no DTCs are stored

ELECTRIC PARKING BRAKE SYSTEM INDICATOR DOES NOT COME ON

Refer to: Gauges Self-Diagnostic Function

ELECTRIC PARKING BRAKE SYSTEM INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED

Refer to: Electric Parking Brake Symptom Troubleshooting - Electric parking brake indicator does not come on or Electric Parking Brake Symptom Troubleshooting - Electric parking brake indicator does not go off, and no DTCs are stored or Electric Parking Brake Symptom Troubleshooting - Electric parking brake system indicator does not go off, and no DTCs are stored

HDS DOES NOT COMMUNICATE WITH THE ELECTRIC PARKING BRAKE CONTROL UNIT OR THE VEHICLE

Refer to: DLC Circuit Troubleshooting

CIRCUIT DIAGRAM

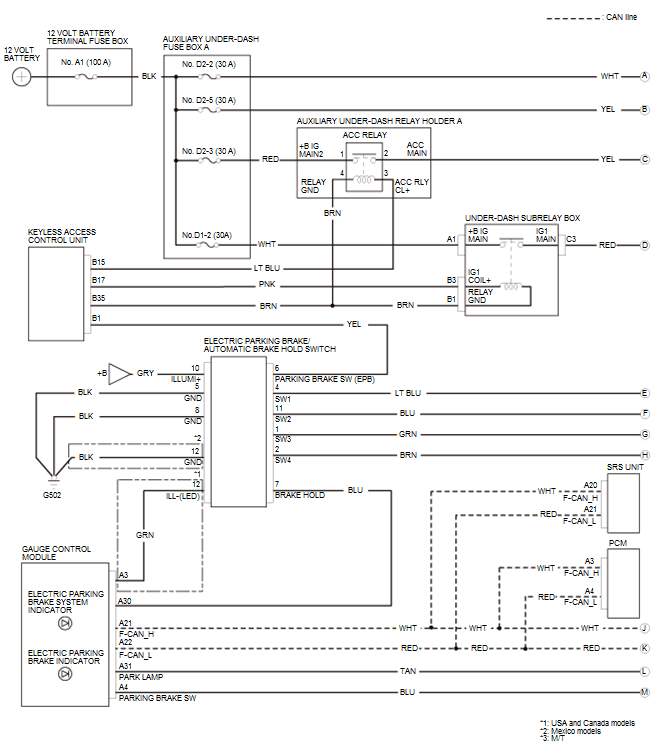

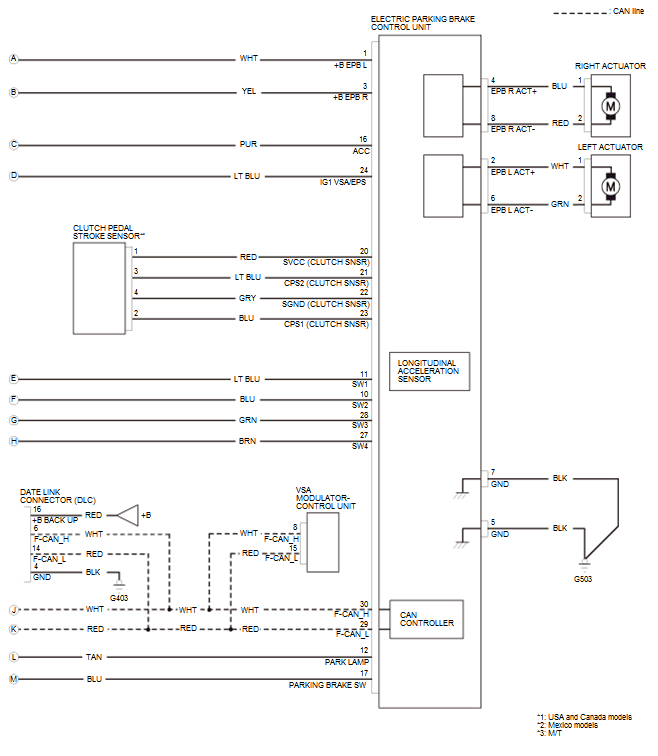

ELECTRIC PARKING BRAKE SYSTEM CIRCUIT DIAGRAM (WITH KEYLESS ACCESS SYSTEM)

Parking Brake System - Testing & Troubleshooting

Parking Brake System - Testing & Troubleshooting

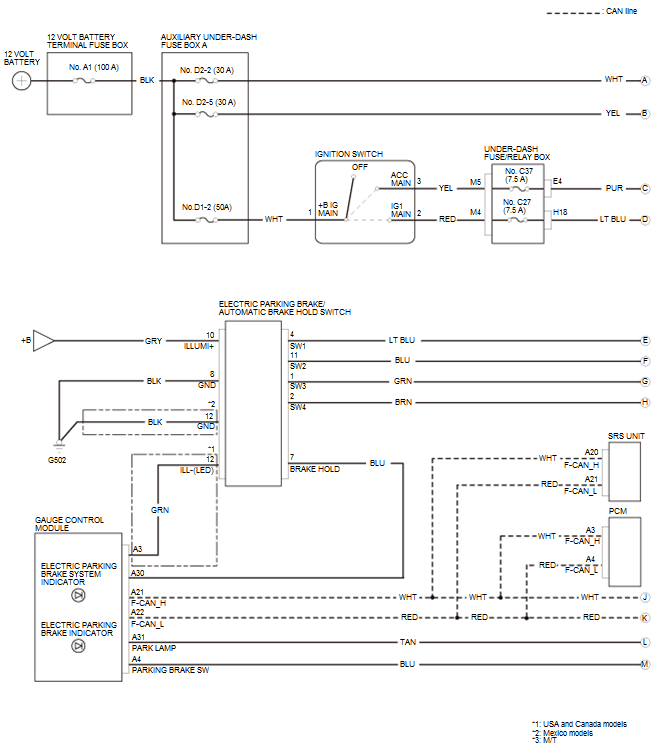

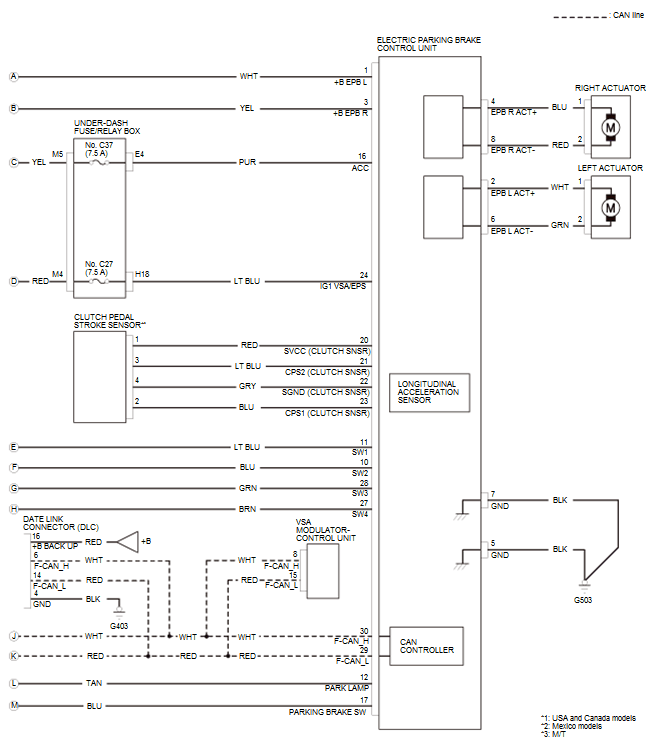

ELECTRIC PARKING BRAKE SYSTEM CIRCUIT DIAGRAM (WITHOUT KEYLESS ACCESS SYSTEM)

Parking Brake System - Testing & Troubleshooting

Parking Brake System - Testing & Troubleshooting
