Honda HR-V: Emissions Maintenance Reminder
NOTE: To determine the appropriate reset procedure, refer to EMISSIONS
MAINTENANCE REMINDER RESET INDEX.
EMISSIONS MAINTENANCE REMINDER RESET INDEX
EMISSIONS MAINTENANCE REMINDER RESET - PROCEDURE 1
1. Heated Oxygen Sensor (HO2S) must be replaced every 90,000 miles. When
odometer reaches 90,000
miles, O2S indicator light on dash will illuminate, and then every subsequent
90,000 miles. After
servicing, turn off or reset warning light.
NOTE: Reset procedure is for first 90,000 mile reset. At every subsequent
90,000
mile reset, move screw back to previous hole.
2. To reset warning light, remove instrument cluster. Remove masking tape
from hole "B". See Fig. 1 or
Fig. 2. Remove screw from hole "A" and insert into hole "B". Apply new masking
tape to hole "A".

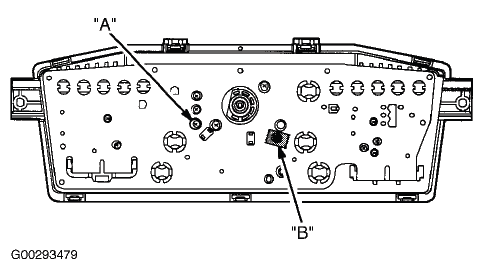

Fig. 1: Identifying Oxygen Sensor Warning Light Reset Holes (2.6L)

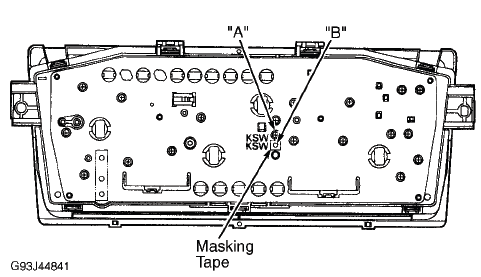

Fig. 2: Identifying Oxygen Sensor Warning Light Reset Holes (3.2L)
