ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 1

NOTE: For Civic and CR-V, this procedure is for models with the Information Display.

For 2013-15 Civic and CR-V models with i-MID, see PROCEDURE 11. For 2014-16 CR-V with i-MID, see PROCEDURE 12.

1. Turn ignition switch to ON (II).

2. Press SELECT/RESET knob repeatedly until engine oil life indicator is displayed. See Fig. 3.

3. Press SELECT/RESET knob for 10 seconds. Engine oil life indicator and the maintenance item codes will blink.

4. Press SELECT/RESET knob again for 5 seconds. Maintenance items codes will disappear and engine oil life indicator will reset to 100%.

Reminder Indicator (Reset Procedures)

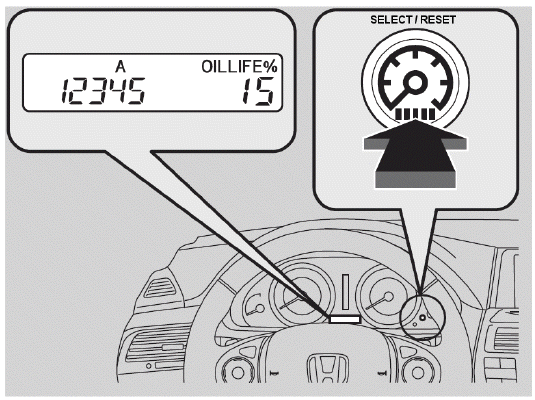

Fig. 3: Oil Life Display Controls (Maintenance Minder) - Typical Instrument Panel

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 2

NOTE:

  • The vehicle must be stopped to reset the display. If a required service is done and the display is not reset, or if the maintenance display is reset without doing the service, the system will not show the proper maintenance timing. This can lead to serious mechanical problems because there will be no accurate record of when the required maintenance is needed.
  • The engine oil life and the maintenance items can be reset independently only with the HDS.

1. Turn the ignition switch to ON (II).

2. Push and release the Select/Reset knob repeatedly until the engine oil life indicator is displayed.

3. Press and hold the Select/Reset knob for about 10 seconds. The information display shows the reset mode display.

NOTE: If you are resetting the display when the engine oil life is more than 15%, make sure any maintenance items requiring service are done before resetting the display.

Reminder Indicator (Reset Procedures)
Fig. 4: Screen Display - Reset Knob Cancels

4. Twist the Select/Reset knob to select OIL LIFE, the display will begin to blink.

5. Push in on the Select/Reset knob to enter this selection, the OIL LIFE and the maintenance item codes will begin to blink.

6. Press and hold the Select/Reset knob again for about 5 seconds. The maintenance item codes will disappear, and the engine oil life will reset to 100%.

Reminder Indicator (Reset Procedures)
Fig. 5: Screen Display - Select/Reset Knob

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 3

1. Turn ignition switch to ON (II). Press SELECT/RESET button on steering wheel until engine oil life is displayed.

2. Press SELECT/RESET button on steering wheel for 10 seconds. Display will change to "CUSTOM SETUP" mode. Press SELECT/RESET button on steering wheel. Maintenance item codes will disappear and engine oil life will reset to 100%.

3. To cancel resetting press INFO button on steering wheel. Press SELECT/RESET button. This cancels resetting procedure and normal display mode returns. Select "RESET" button and press SELECT/RESET button multi-information will.

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 4

1. Turn ignition switch to ON (II) position.

2. Press SELECT button repeatedly until engine oil life display or service message is displayed.

3. Press the RESET button for about 10 seconds. A "MAINT RESET" message will appear.

4. Select appropriate answer - "MAINT RESET >N" (NO) or "MAINT RESET >Y" (YES) by pressing the select button. ">N" or ">Y" is displayed on the outside temperature display.

5. Select the "MAINT RESET >Y" (YES), and press and hold RESET button again to reset engine oil life to 100%.

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 5

1. Turn ignition switch to ON (II). Press TRIP button until engine oil life indicator is displayed.

2. Press TRIP knob for 10 seconds. Engine oil life indicator and the maintenance item codes will blink.

Press TRIP knob for more than 5 seconds. Maintenance items codes will disappear and engine oil life indicator will reset to 100%.

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 6

1. Turn ignition switch to the ON (II) position.

2. If the engine oil life is not displayed, press the SEL/RESET button on the steering wheel repeatedly to display oil life.

3. Press and hold the SEL/RESET button on the steering wheel for more than 10 seconds. The remaining engine oil life reset mode will be shown on the multi-information display.

4. Select RESET using the INFO button (ARROWS), then press the SEL/RESET button to reset the engine oil life display. The maintenance item codes will disappear, and the engine oil life will reset to 100%.

Reminder Indicator (Reset Procedures)

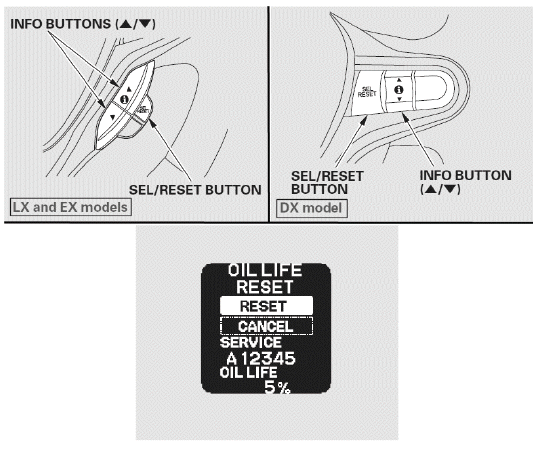

Fig. 6: Oil Life Display Controls (Maintenance Minder)

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 7

NOTE: Use this procedure if the vehicle IS NOT equipped with Navigation System.

1. Turn ignition switch to ON (II) position.

2. Press the SELECT button repeatedly until the engine oil life is displayed.

3. Press the TRIP/RESET button for about 10 seconds. The engine oil life and the maintenance item codes will blink.

4. Press the TRIP/RESET button again for 5 seconds. The maintenance item codes will disappear, and the engine oil life will reset to 100%.

ENGINE OIL REPLACEMENT REMINDER RESET - PROCEDURE 8

NOTE: Use this procedure if the vehicle IS equipped with Navigation System.

1. Turn ignition switch to ON (II) position.

2. Press the SEL/RESET button on the dashboard until you see the engine oil life display.

3. Press and hold the SEL/RESET button for 10 seconds. The multi-information display will ask for a confirmation.

  • If you are sure you want to reset the display, press SEL/RESET button to select OK.
  • If you do not want to reset the display, press the INFO (ARROW) button to select CANCEL.
