Honda HR-V: Engine Mount - Service Information

Honda HR-V (2015-2021) Service Manual / Engine / Engine Mount - Service Information

REMOVAL & INSTALLATION

ENGINE MOUNT TIGHTENING PROCEDURE

Procedure

NOTE: Reinstall the mounting bolts and nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.

1. Jack - Remove

2. Engine/Transmission Mount - Tightening Procedure

NOTE:

  • When the side engine mount is removed, loosely install the side engine mount, loosen the bolts and nuts of (2)'s[2] and (3)'s,[2] before tightening. Then tightening all bolts and nuts in the sequence (1)'s,[1],[2] and[3],(2) 's[2], and then (3)'s[2].
  • When the transmission mount is removed, after loosely install the transmission mount, loosen the bolt of (3)'s,[2] before tightening. Then tightening all bolts and nuts in the sequence (2)'s,[1] and [2], and then (3)'s[2].
  • When the torque rod are removed, only tighten the torque rod in the sequence listed below.

Tightening Sequence

Engine Mount - Service Information

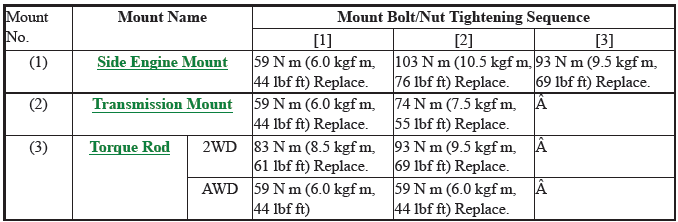

Tightening Torque

Engine Mount - Service Information

Engine Mount - Service Information

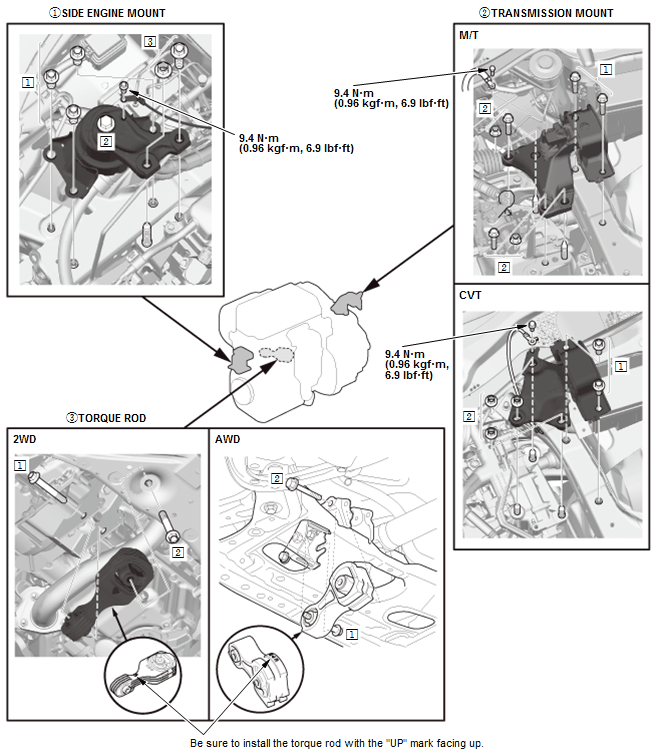

Fig. 1: Side Engine, Transmission And Torque Rod Mounts With Torque Specifications

SIDE ENGINE MOUNT REMOVAL AND INSTALLATION

Removal and Installation

1. Engine Undercover - Remove (With Engine Undercover)

2. Engine - Support

  1. Lift and support the engine with a jack and a wood block under the oil pan.

3. Side Engine Mount - Remove

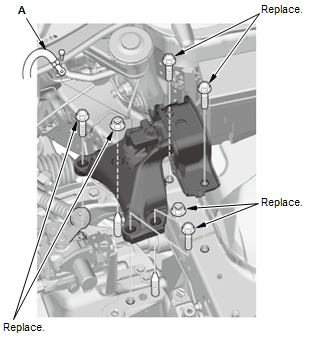

Engine Mount - Service Information

  1. Disconnect the ground cable (A)
  2. Remove the side engine mount.

4. Side Engine Mount - Disassemble

M/T

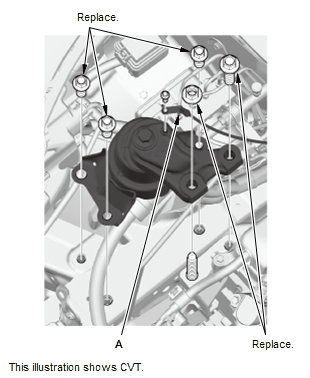

Engine Mount - Service Information

CVT

Engine Mount - Service Information

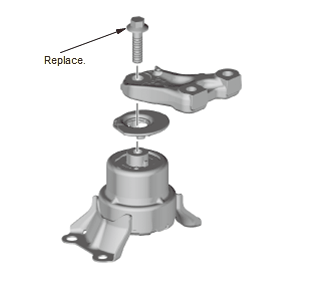

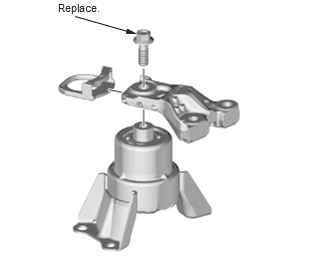

  1. Disassemble the side engine mount as needed.

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
    NOTE:
    • If the side engine mount is disassembled, assemble the side engine mount, then loosely install the bolt.
    • Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.

TRANSMISSION MOUNT REMOVAL AND INSTALLATION

Removal and Installation

1. 12 Volt Battery - Remove

2. Air Cleaner - Remove

3. Engine Undercover - Remove (With Engine Undercover)

4. Transmission - Support

  1. Lift and support the transmission with a jack and a wood block under the transmission.

5. Transmission Mount - Remove

M/T

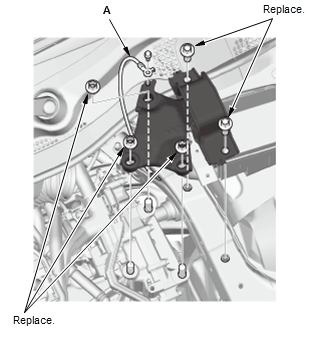

Engine Mount - Service Information

CVT

Engine Mount - Service Information

  1. Disconnect the ground cable (A)
  2. Remove the transmission mount.

6. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
    NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
