Honda HR-V: DTC Advanced Diagnostics Electric Parking Brake Related DTCS
Electric Parking Brake System Related DTCs
NOTE
- Review "How to troubleshoot the electric parking brake" before doing the DTC troubleshooting procedure.
- Test-drive the vehicle according to local traffic conditions and regulations. Do not test-drive on a lift unless specified.
- The possible causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

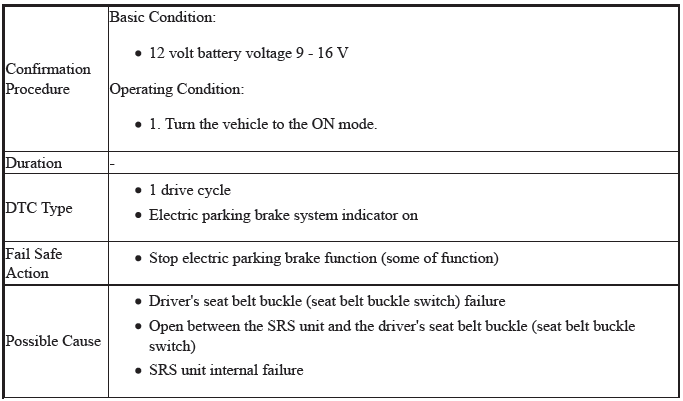

DTC B0050-F0: Driver's Seat Belt Buckle Switch Malfunction
.png)

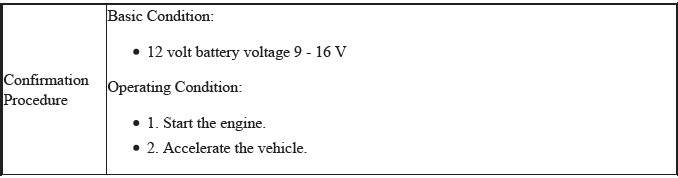

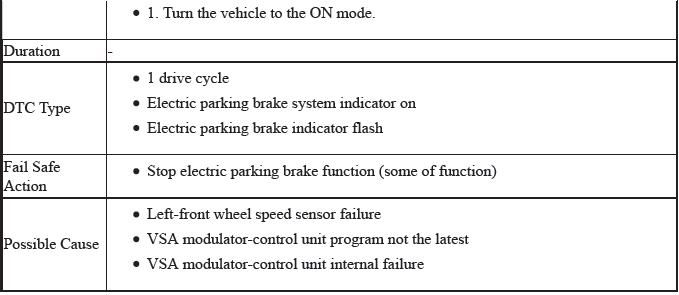

DTC C0031-62: Left-Front Wheel Speed Sensor Malfunction
.png)
.png)

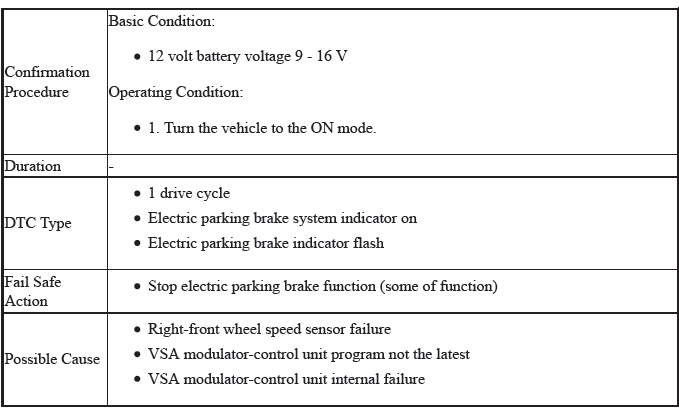

DTC C0034-62: Right-Front Wheel Speed Sensor Malfunction
.png)

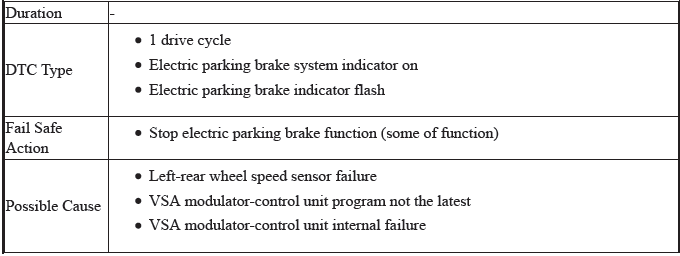

DTC C0037-62: Left-Rear Wheel Speed Sensor Malfunction
.png)
.png)

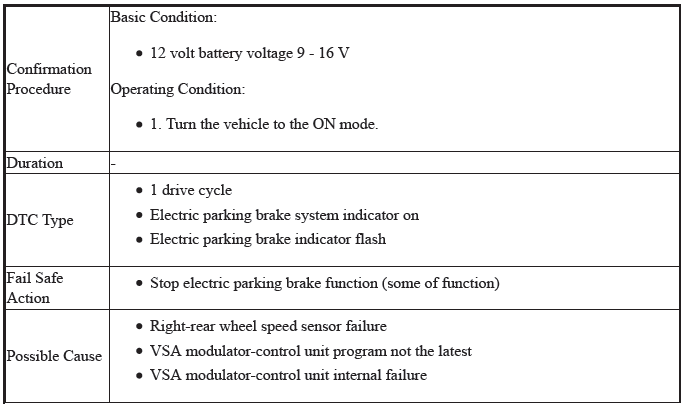

DTC C003A-62: Right-Rear Wheel Speed Sensor Malfunction
.png)

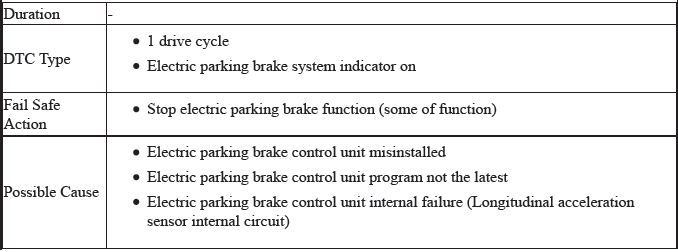

DTC C0062-1C: Longitudinal Acceleration Sensor (Inside of Electric Parking Brake Control Unit) Range/Performance Problem
.png)
.png)

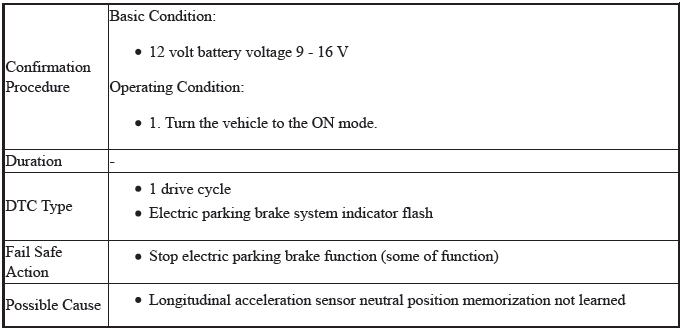

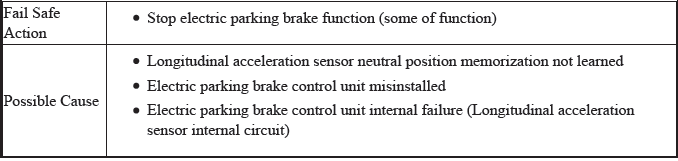

DTC C0062-54: Longitudinal Acceleration Sensor (Inside of Electric Parking Brake Control Unit) Neutral Position Not Learned
.png)
DTC C0062-76: Longitudinal Acceleration Sensor (Inside of Electric Parking Brake Control Unit) Adjustment Condition Incorrect
.png)
.png)

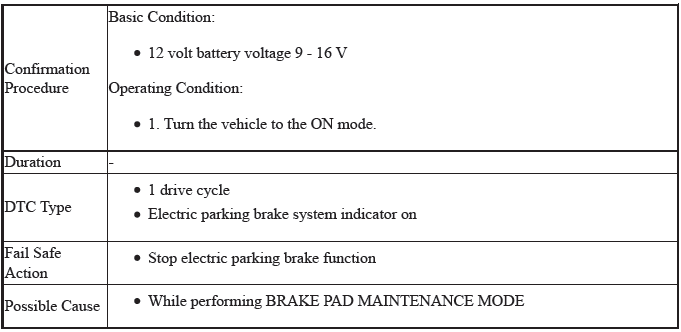

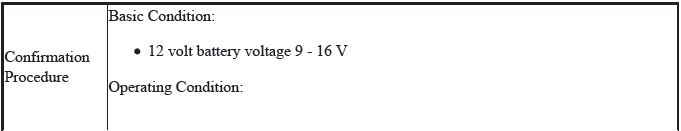

DTC C1100-53: Electric Parking Brake System in Maintenance Mode
.png)

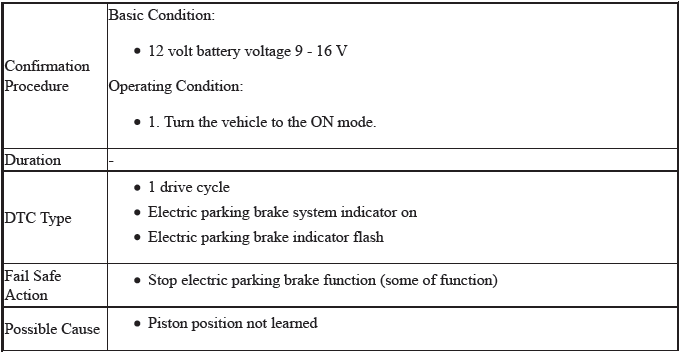

DTC C1100-54: Piston Position Not Learned
.png)
DTC C1100-94: Electric Parking Brake Actuator Malfunction
.png)

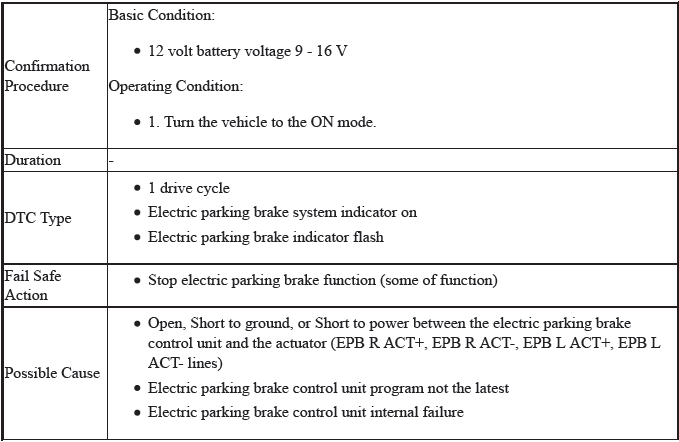

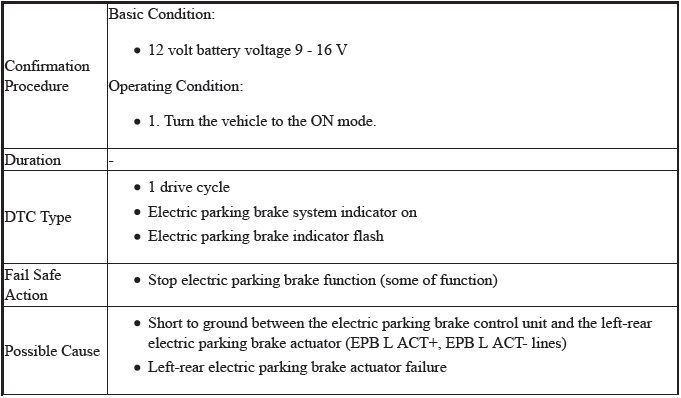

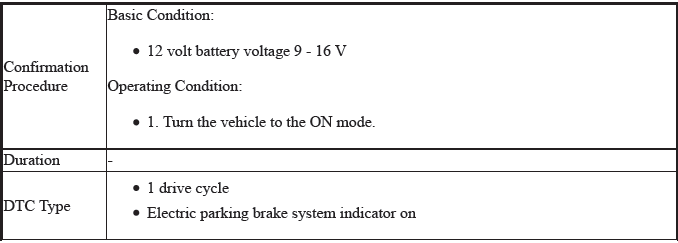

DTC C1110-11: Left-Rear Electric Parking Brake Actuator Circuit Short to Ground
.png)

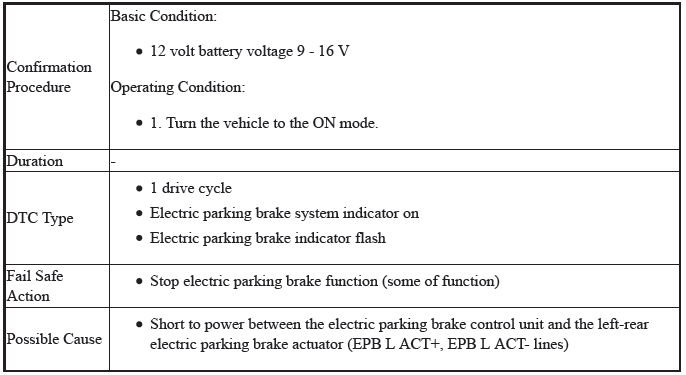

DTC C1110-12: Left-Rear Electric Parking Brake Actuator Circuit Short to Power
.png)

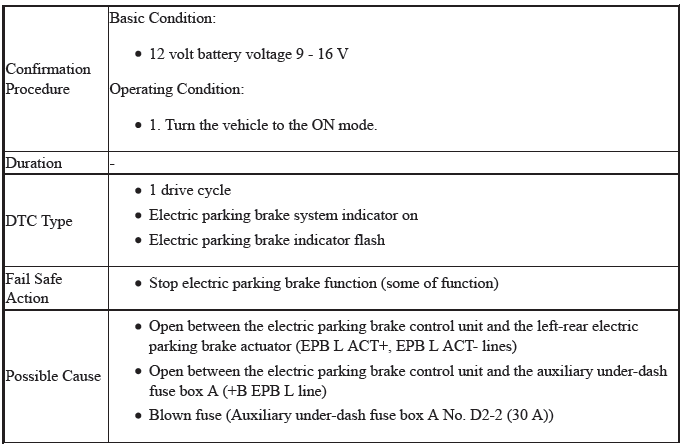

DTC C1110-13: Left-Rear Electric Parking Brake Actuator Circuit Open
.png)

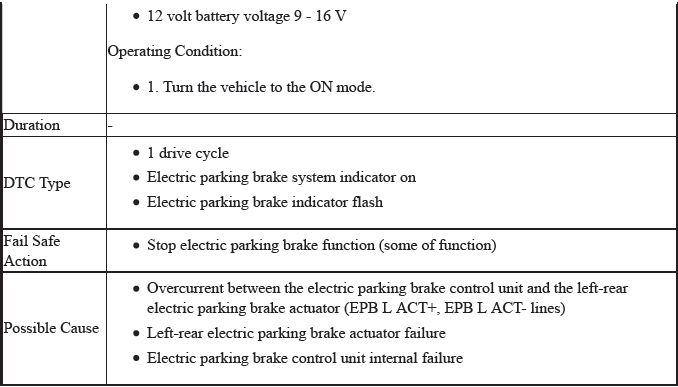

DTC C1110-96: Left-Rear Electric Parking Brake Actuator Malfunction
.png)
.png)

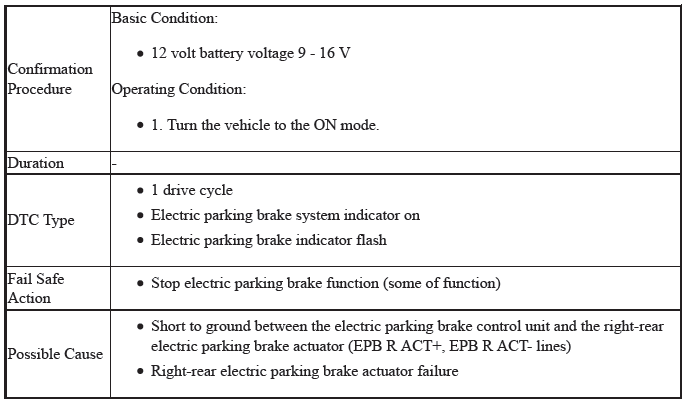

DTC C1111-11: Right-Rear Electric Parking Brake Actuator Circuit Short to Ground
.png)

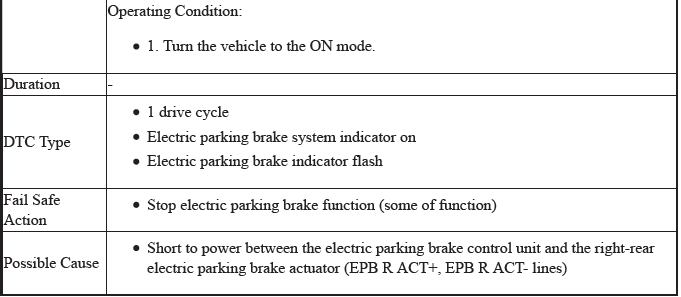

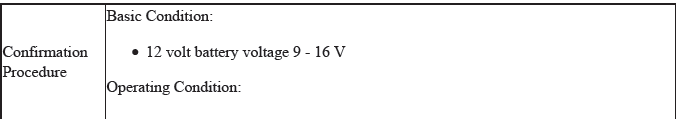

DTC C1111-12: Right-Rear Electric Parking Brake Actuator Circuit Short to Power
.png)
.png)

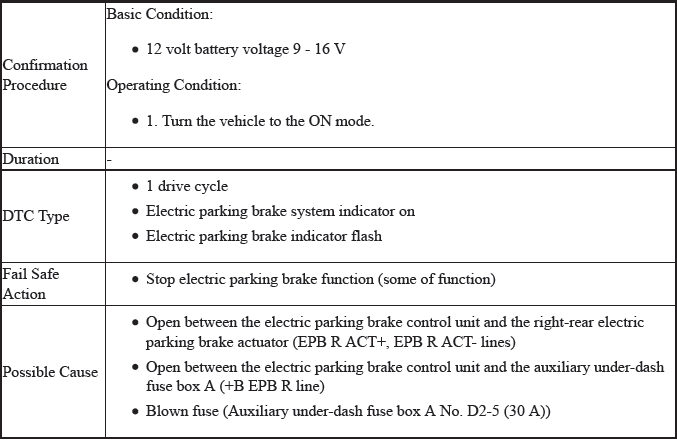

DTC C1111-13: Right-Rear Electric Parking Brake Actuator Circuit Open
.png)

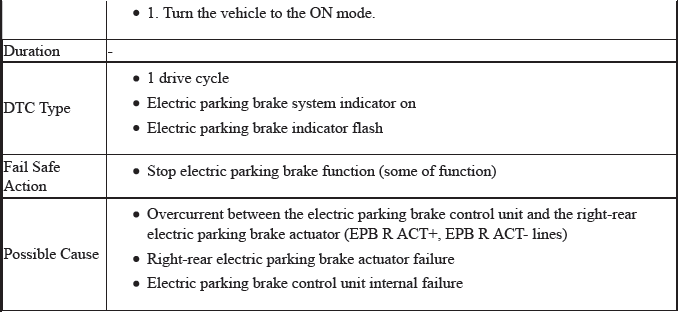

DTC C1111-96: Right-Rear Electric Parking Brake Actuator Malfunction
.png)
.png)

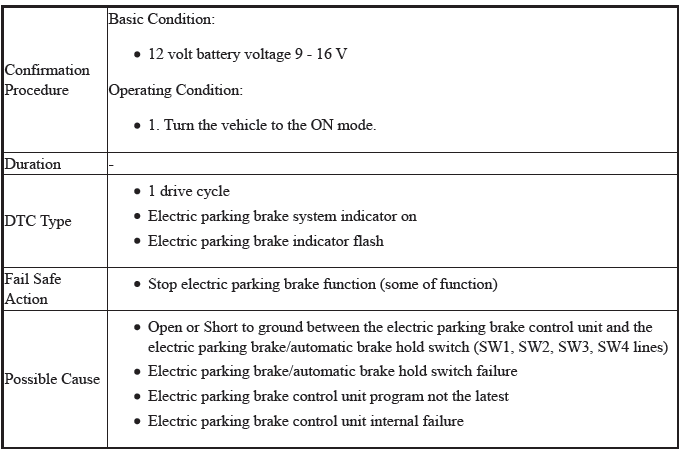

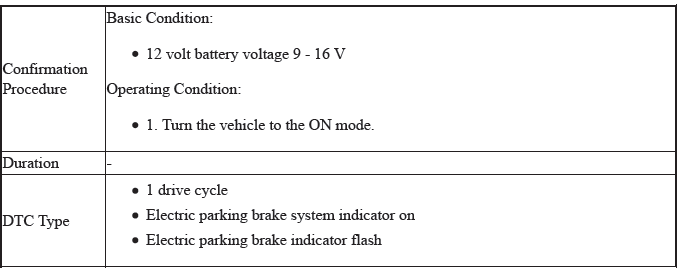

DTC C1120-14: Electric Parking Brake Switch Circuit Malfunction
.png)

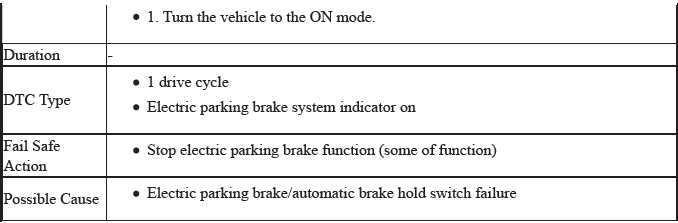

DTC C1120-96: Electric Parking Brake Switch Malfunction
.png)
.png)

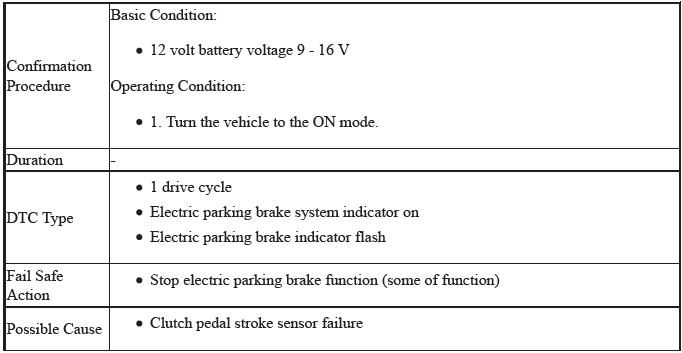

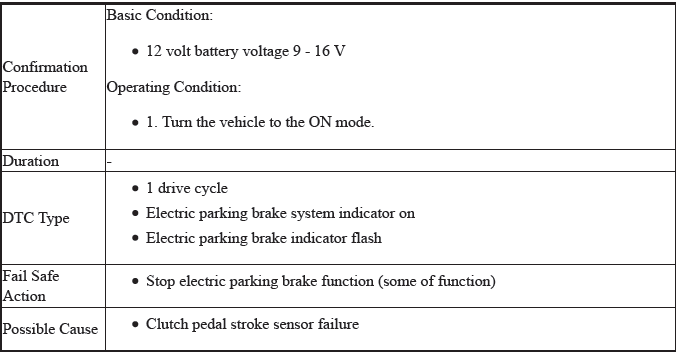

DTC C1130-28: Clutch Pedal Stroke Sensor 0-Point Learning Logic Failure
.png)
DTC C1130-62: Clutch Pedal Stroke Sensor CPS1/CPS2 Incorrect Voltage Correlation
.png)
.png)
DTC C1130-76: Clutch Pedal Stroke Sensor Mount Position Error
.png)

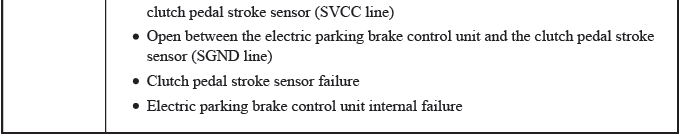

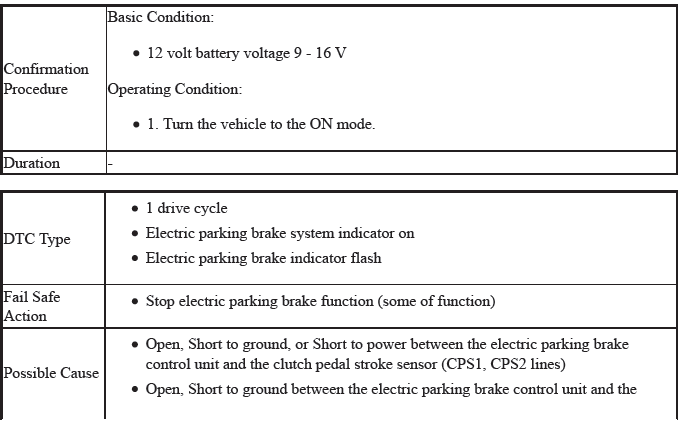

DTC C1131-14: Clutch Pedal Stroke Sensor CPS1/CPS2 Open or Short
.png)
.png)

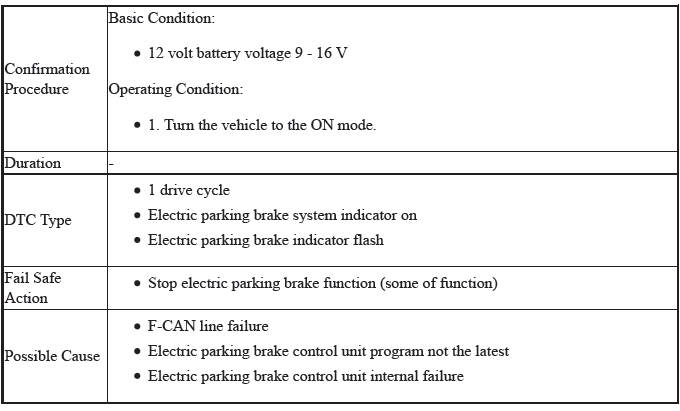

DTC U0029-00: F-CAN Malfunction (Bus-Off)
.png)

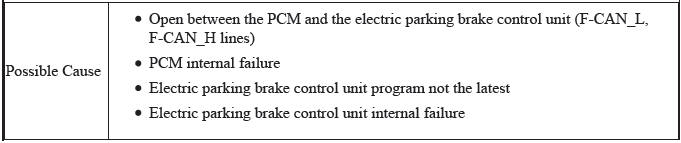

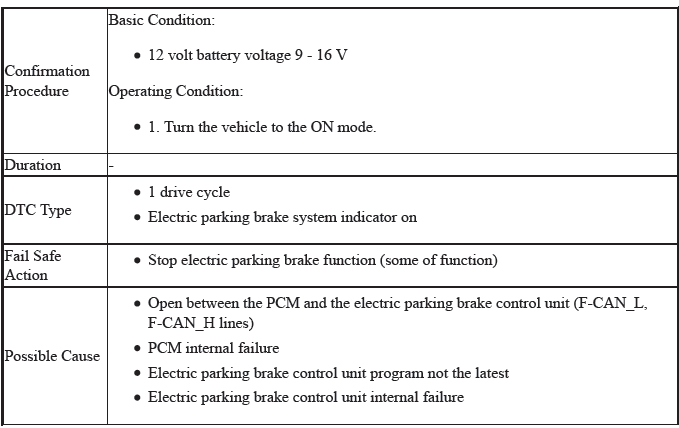

DTC U0100-00: F-CAN Malfunction (Electric Parking Brake Control Unit-PCM)
.png)
.png)
DTC U0101-00: F-CAN Malfunction (Electric Parking Brake Control Unit-TCM)
.png)

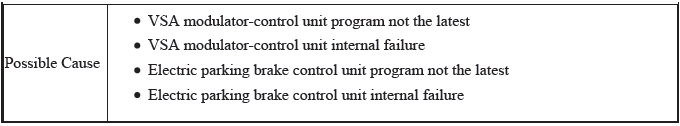

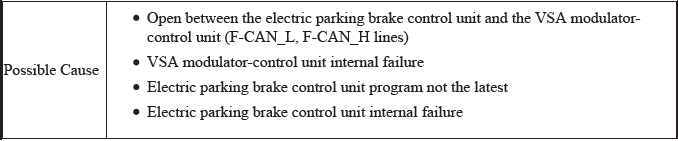

DTC U0122-00: F-CAN Malfunction (Electric Parking Brake Control Unit-VSA Modulator-Control Unit)
.png)
.png)

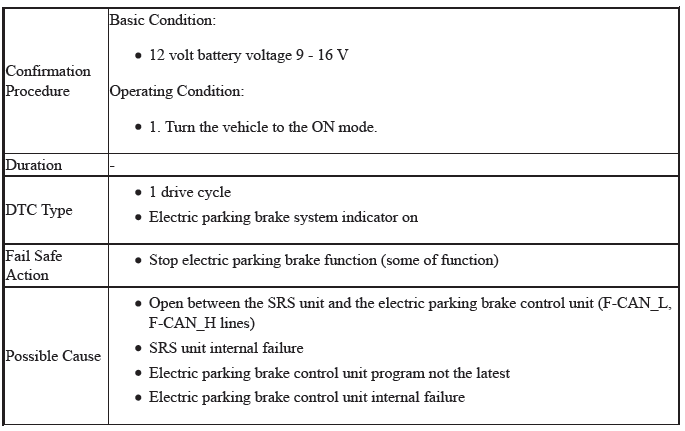

DTC U0151-00: F-CAN Malfunction (Electric Parking Brake Control Unit-SRS Unit)
.png)

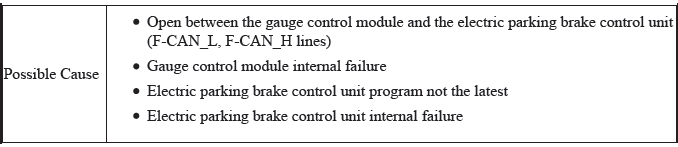

DTC U0155-00: F-CAN Malfunction (Electric Parking Brake Control Unit-Gauge Control Module)
.png)
.png)

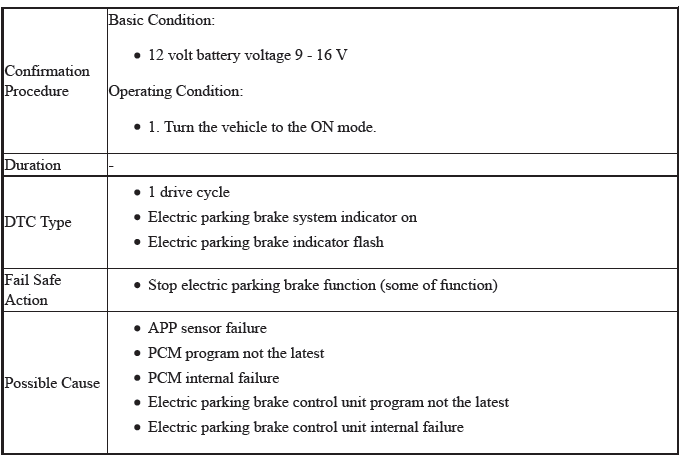

DTC U0401-68: PCM Malfunction
.png)

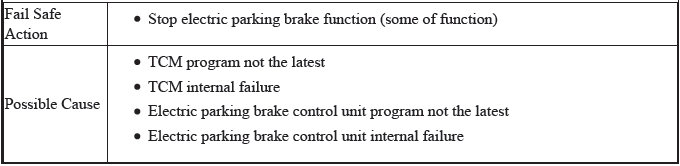

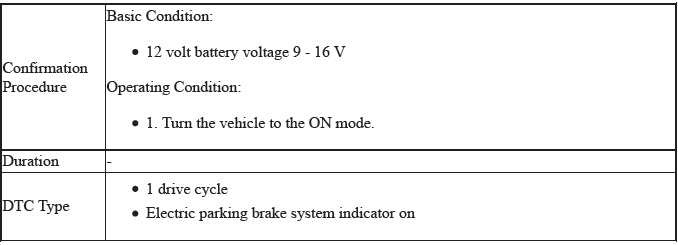

DTC U0402-68: TCM Malfunction
.png)
.png)

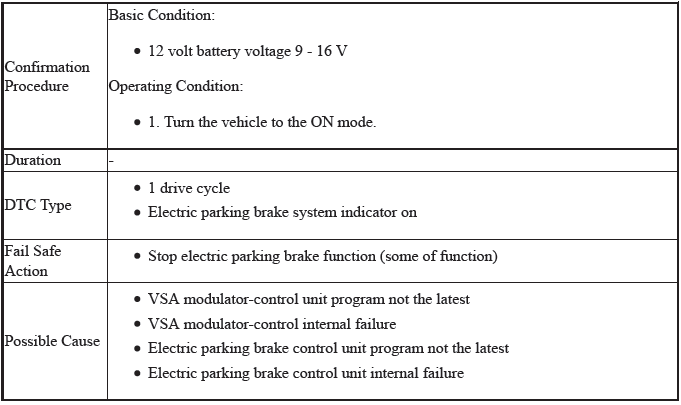

DTC U0416-68: VSA System Malfunction
.png)
DTC U0416-F8: VSA System Malfunction
.png)
.png)

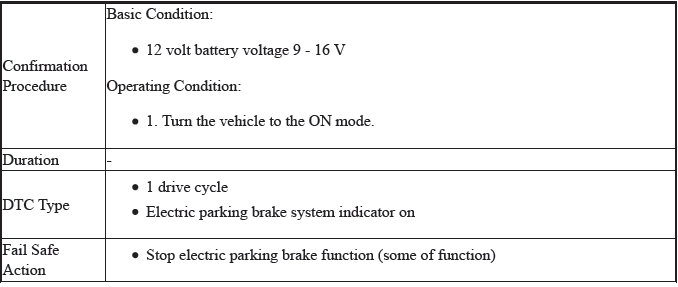

DTC U3000-49: Electric Parking Brake Control Unit Internal Circuit Malfunction
.png)

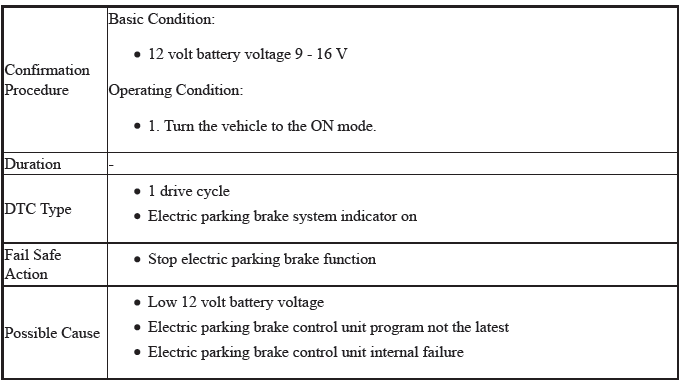

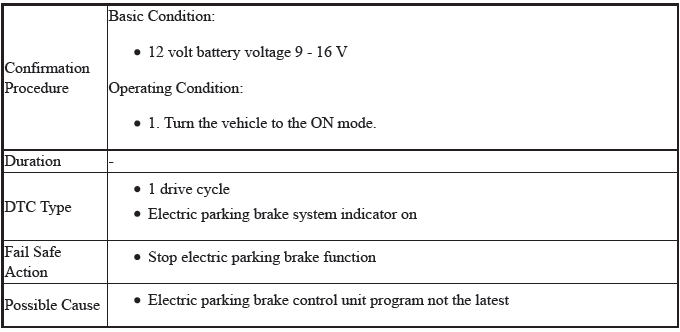

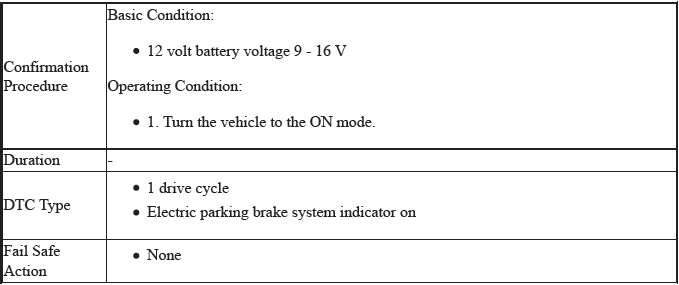

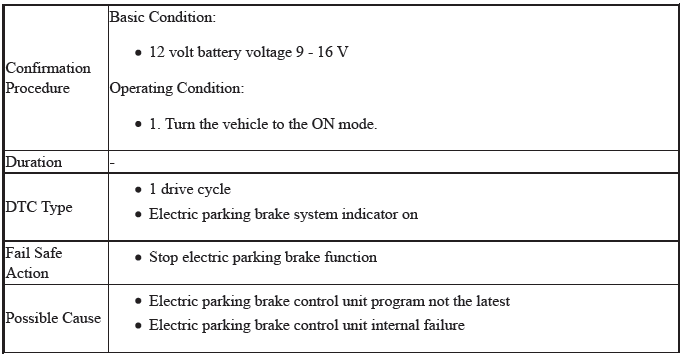

DTC U3000-51: Electric Parking Brake Control Unit Programming Error
.png)

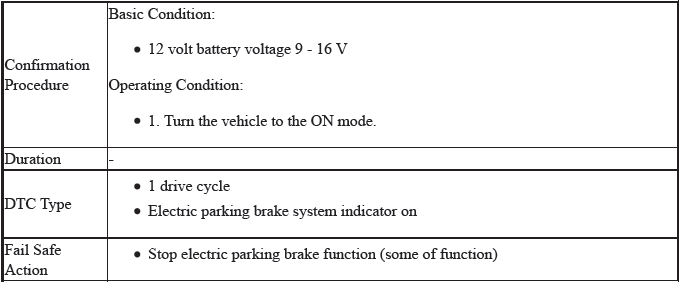

DTC U3003-16: Electric Parking Brake Control Unit Power Source Circuit (+B) Low Voltage
.png)

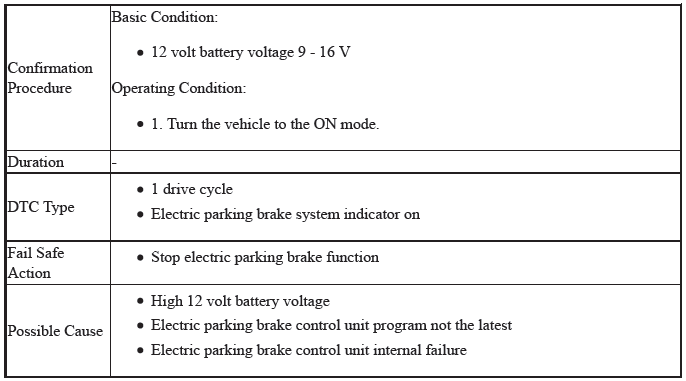

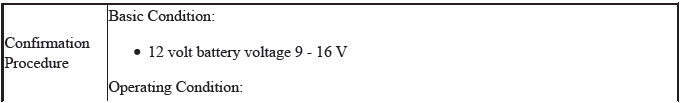

DTC U3003-17: Electric Parking Brake Control Unit Power Source Circuit (+B) High Voltage
.png)

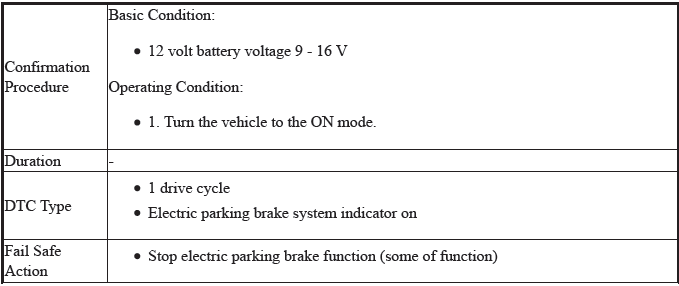

DTC U3003-68: Electric Parking Brake Control Unit Internal Circuit Malfunction (Power Self-Holding Circuit)
.png)
.png)

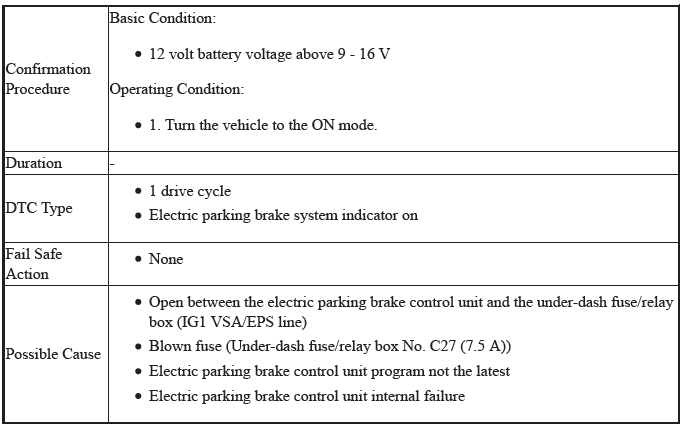

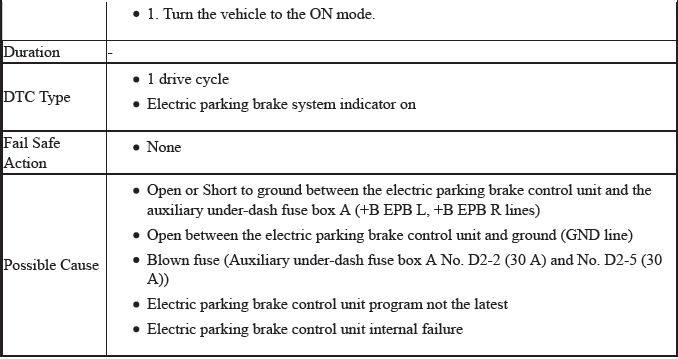

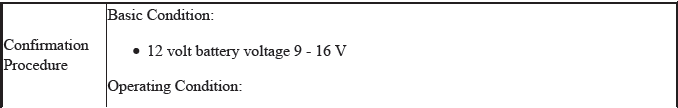

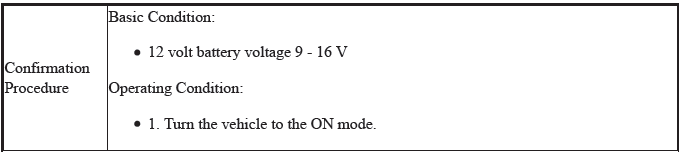

DTC U3006-13: IG1 Circuit Open
.png)
