Removal

1. Vehicle - Lift

2. Front Wheels - Remove

3. Front Splash Shield - Remove

4. Stabilizer Link - Disconnect

  1. Disconnect both sides of the stabilizer link from the stabilizer bar.

5. Stabilizer Bar - Remove

Suspension System - Service Information

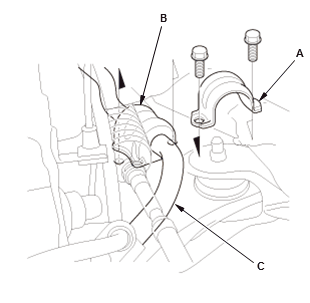

  1. Remove the bushing holders (A)
  2. Remove the bushings (B)
  3. Move the stabilizer bar (C) toward the driver's side, and remove the stabilizer bar.

    NOTE : Be careful not to damage the steering gearbox.

Installation

1. Stabilizer Bar - Install

Suspension System - Service Information

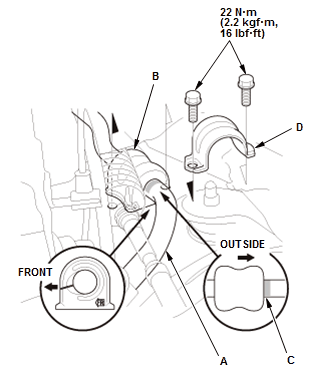

  1. Install the stabilizer bar (A) from the driver's side.
    NOTE : Be careful not to damage the steering gearbox
  2. Install the bushings (B) on the stabilizer bar.

    NOTE :

    • Note the direction of installation for the bushing.
    • Align the paint marks (C) on the stabilizer bar with the side of the bushings.
  3. Install the bushing holders (D).

2. Stabilizer Link - Connect

  1. Connect both sides of the stabilizer link to the stabilizer bar.

3. Front Splash Shield - Install

4. Front Wheels - Install
