Honda HR-V: General Information

FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS (KA/KC)

The fuel line/quick-connect fittings (A to I) connect following:

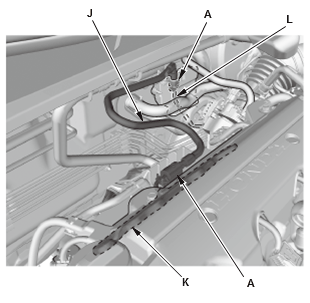

  • A: fuel feed hose (J) to fuel rail (K), fuel feed hose (J) to fuel line (L)

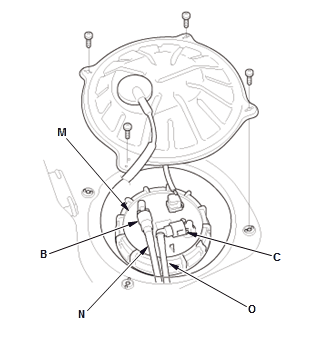

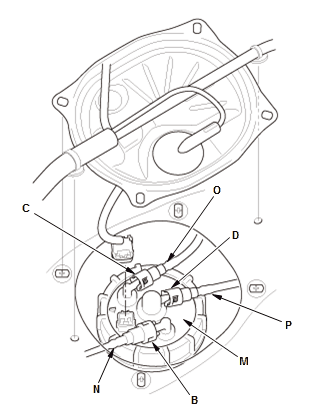

  • B: fuel tank unit (M) to fuel line (N)
  • C: fuel tank unit (M) to fuel suction line (O)
  • D: fuel tank unit (M) to fuel vent line (P)

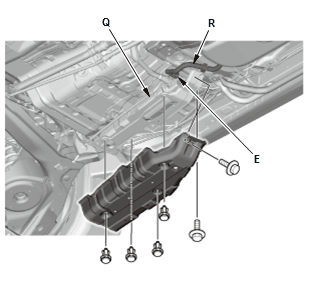

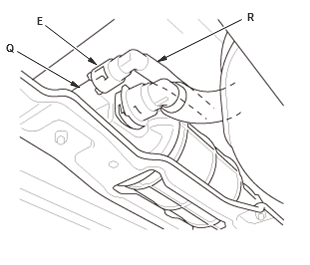

  • E: EVAP canister (Q) to fuel vapor line (R)

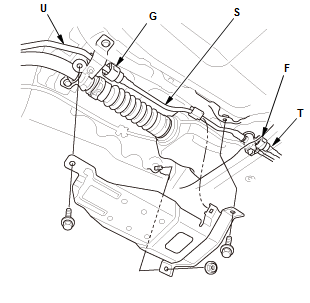

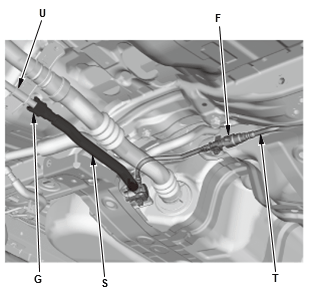

  • F: breather line (S) to fuel suction line (T)
  • G: breather line (S) to fuel filler pipe (U)

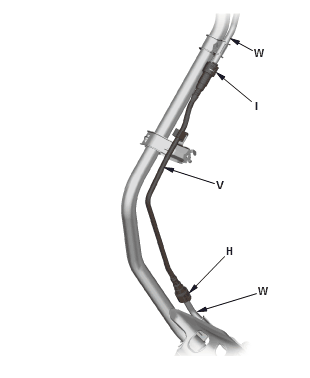

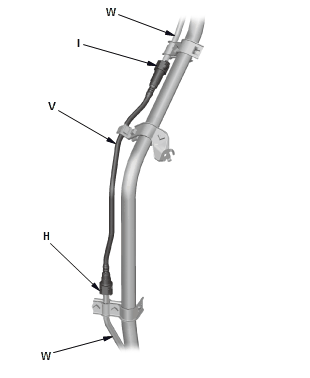

  • H: one way valve tube (V) to fuel fill pipe (W)
  • I: one way valve tube (V) to fuel fill pipe (W)

When removing or installing the fuel feed hose, fuel tank unit, fuel tank, EVAP canister, or when disconnecting/connecting the quick-connect fittings. Pay attention to the following:

  • The fuel feed hose, the fuel line, and the quick-connect fittings are not heat-resistant; be careful not to damage them during welding or other heat-generating procedures.
  • The fuel feed hose, the fuel line, and the quick-connect fittings are not acid-proof; do not touch them with a shop towel which was used for wiping 12 volt battery electrolyte. Replace them if they came into contact with 12 volt battery electrolyte or something similar.
  • When connecting or disconnecting the fuel feed hose, the fuel line, and the quick-connect fittings, be careful not to bend or twist them excessively. Replace them if they are damaged.

Fuel and Emissions - Testing & Troubleshooting

2WD

Fuel and Emissions - Testing & Troubleshooting

AWD

Fuel and Emissions - Testing & Troubleshooting

2WD

Fuel and Emissions - Testing & Troubleshooting

AWD

Fuel and Emissions - Testing & Troubleshooting

2WD

Fuel and Emissions - Testing & Troubleshooting

AWD

Fuel and Emissions - Testing & Troubleshooting

2WD

Fuel and Emissions - Testing & Troubleshooting

AWD

Fuel and Emissions - Testing & Troubleshooting

A disconnected quick-connect fitting can be reconnected, but the retainer on the mating line cannot be reused once it has been removed from the line. Replace the retainer when:

  • Replacing the fuel rail
  • Replacing the fuel line
  • Replacing the fuel pump
  • Replacing the EVAP canister
  • Replacing the fuel filter
  • Replacing the fuel tank
  • Replacing the fuel fill pipe
  • The retainer has been removed from the pipe
  • The retainer is damaged

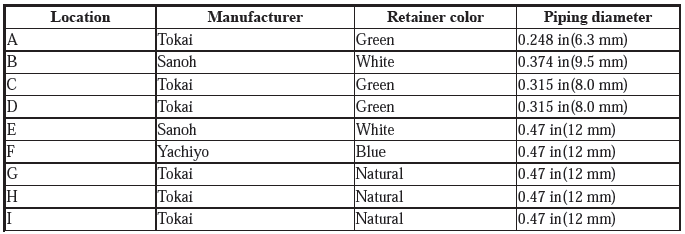

Use the same manufacturer retainer and the same size retainer when the replacing the retainer.

Fuel and Emissions - Testing & Troubleshooting
