Honda HR-V: Heated Windshield Wiper Area Switch Test
Test
1. Driver's Dashboard Lower Cover - Remove
2. Heated Windshield Wiper Area Switch - Test

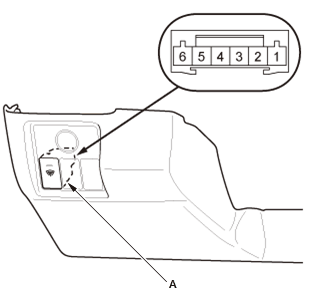

NOTE : Mounting position of the heated windshield wiper area switch (A) is
changed depending on the
model.

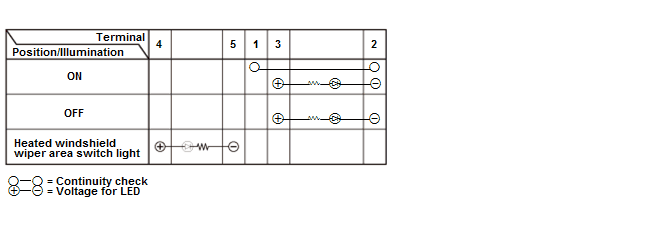

- Check the heated windshield wiper area switch according to the table.
NOTE :
- When an LED is located between terminals, check if the LED illuminates
by connecting power and
ground to the LED.
- Note this important operating characteristic; diode bias causes a diode
to fully conduct electricity in
one direction (forward), while not at all in the opposite direction
(reverse).
.png)
.png)
- If the result is not as specified, replace the heated windshield wiper
area switch.
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
HEATED WINDSHIELD WIPER AREA TEST
Test
1. Cowl Cover - Remove
2. Heated Windshield Wiper Area - Test
.png)
-

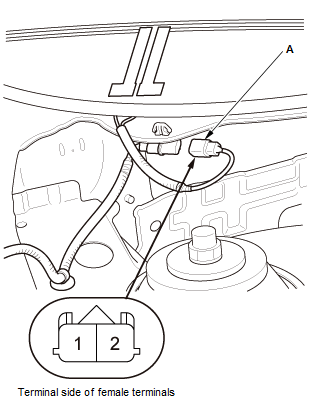

Disconnect the connector (A)
-
Measure the resistance between the terminals in each
terminals
according to the table.
.png)
- If the result is not as specified, the heated windshield wiper area is
faulty; replace the windshield.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
SECURITY HOOD SWITCH TEST
Test
1. Hood Latch - Remove
2. Security Hood Switch - Test
.png)
.png)

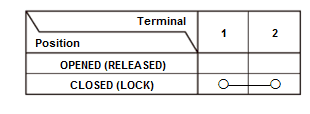

- Check for continuity between the terminals in each
switch position according to the table.
- If the continuity is not as specified, the security hood

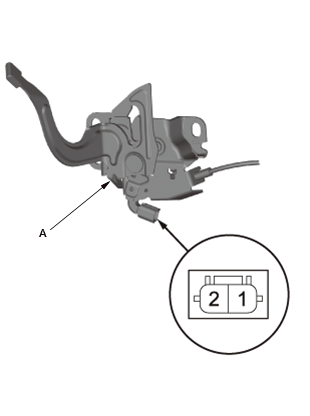

switch is faulty; replace the hood latch (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
