Honda HR-V: Heater Fan Switch Test
Test
1. Heater Control Panel - Remove

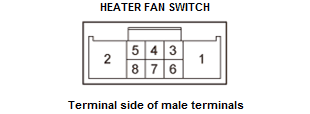

2. Heater Fan Switch - Test
.png)
.png)

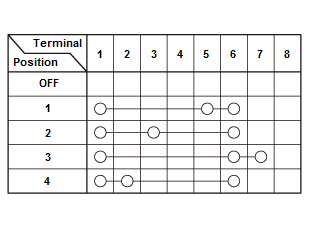

- Check for continuity between the terminals in each
switch position according to the table.
- If the continuity could not found between the
indicated terminals, replace the heater fan switch.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
HUMIDITY/IN-CAR TEMPERATURE SENSOR TEST
Test
NOTE:
- Before testing the sensor, check for climate control DTCs.
- The climate control unit receives humidity (%) data via digital signal.
- The climate control unit receives in-car temperature (ºC) data via
digital transmission.
1. Humidity/In-Car Temperature Sensor - Test
- Turn the vehicle to the OFF (LOCK) mode and then the ON mode.
- Touch and hold the AUTO icon (A), then within 10 seconds touch and
release the RECIRCULATION
icon (B) five times.

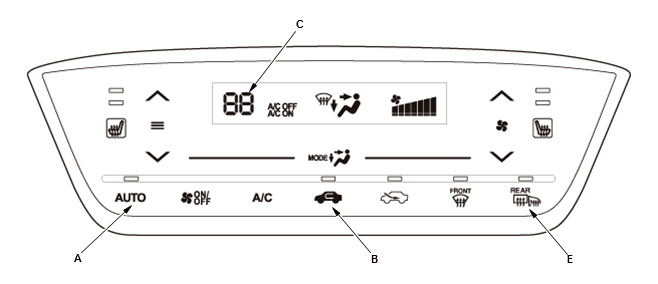

Single A/C type
.png)

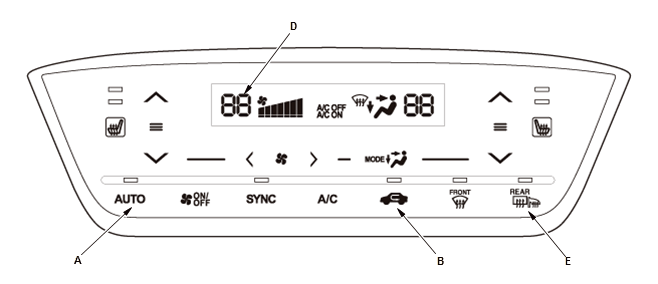

Dual A/C type
.png)
- After the display mode of the sensor, release the AUTO icon. The
temperature indicator (single A/C
type) (C) or driver's temperature indicator (dual A/C type) (D) will flash
the sensor number 1 and then the
value for that sensor
- Touch the REAR WINDOW DEFOGGER/MIRROR DEFOGGER icon (E) until the
desired sensor
number is displayed.
NOTE: The sensor number and the data are displayed alternatively every one
second on the set temperature indicator (single A/C type) or driver's
temperature indicator (dual A/C type).
.png)
SUNLIGHT SENSOR TEST
Test
NOTE: Before testing the sensor, check for climate control DTCs.
1. Sunlight Sensor - Test

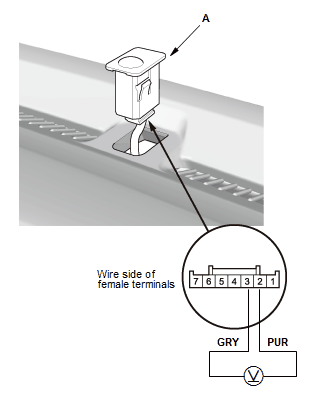

With automatic lighting
system
.png)

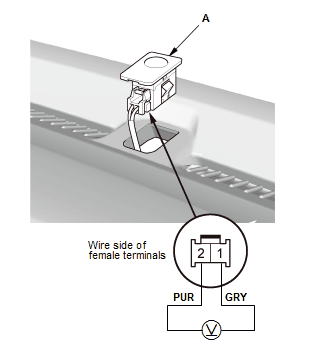

Without automatic lighting
system
.png)
- Pull out the sunlight sensor (A)
- Turn the vehicle to the ON mode
- Measure the voltage between (+) probe on terminal No. 2 and (-)
probe on terminal No. 3 (with automatic lighting system) or No. 1
(without automatic lighting system) with the connector connected.
NOTE: The voltage readings will not change under the light of a
flashlight or a fluorescent lamp. Voltage should be:
- 3.56 V with no sunlight or the sensor covered up.
- Less than 3.56 V with sunlight on the sensor (depending on
sunlight intensity).
- If the voltage is not as specified, replace the sunlight sensor.
