Honda HR-V: Inspection/Adjustment
IMMOBILIZER SYSTEM CHECK
1. Connect the HDS to the data link connector (DLC).
2. Turn the vehicle to the ON mode.
3. Monitor the SYSTEM CHECK in IMMOBILIZER INFO with the HDS.NOTE: If the HDS does not communicate with the immobilizer-keyless control unit, check the power, ground, and K LINE connections.
4. If the HDS displays NORMAL N-1, the immobilizer system is OK at this time. If the HDS displays any messages, check as follows:

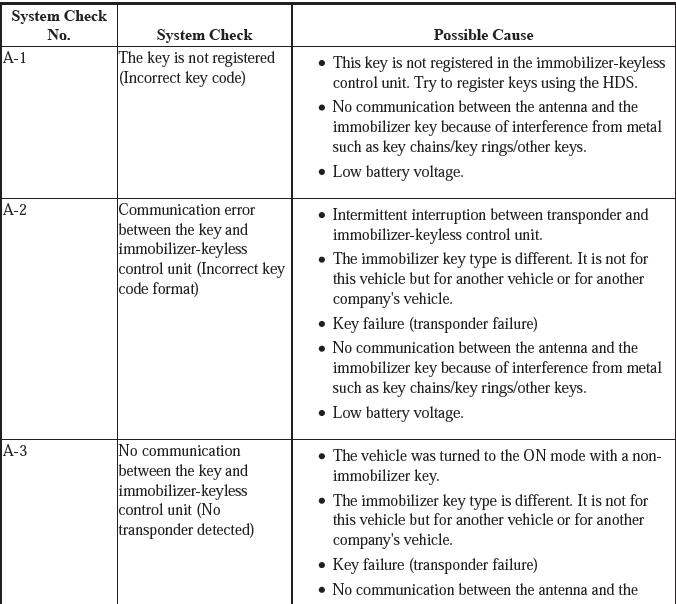

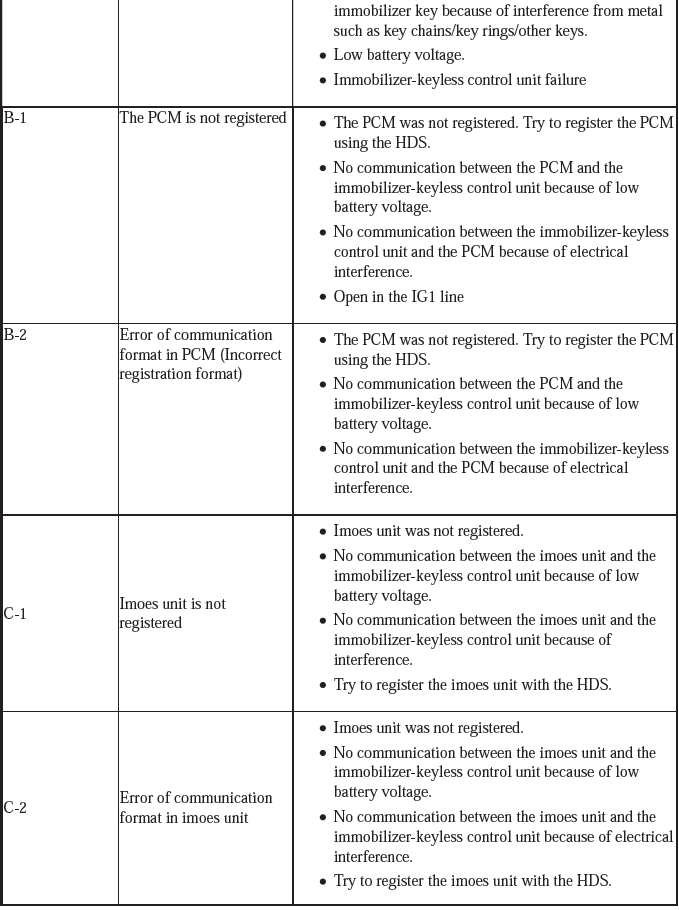

.png)
.png)
KEYLESS ACCESS SYSTEM CHECK
1. Connect the HDS to the data link connector (DLC).
System Check 1 (Keyless Access Control Unit)
2. Turn the vehicle to the ON mode.
3. On the HDS screen, at SYSTEM SELECTION MENU, enter ONE-PUSH START, then select KEYLESS ACCESS CONTROL UNIT or BACKUP CONTROL UNIT.NOTE: If the HDS does not communicate, check the keyless access control unit power, ground, K LINE and L-LINE connectors.
4. At KEYLESS ACCESS CONTROL UNIT, enter KEYLESS ACCESS SYSTEM INFORMATION, then select SYSTEM CHECK 1 or SYSTEM CHECK 2.5. At BACKUP CONTROL UNIT, enter SYSTEM INFORMATION, then select SYSTEM CHECK.6. If the HDS displays NORMAL N-1, the ONE-PUSH START system is OK at this time, refer to the STATUS LOG. If the HDS displays any other messages, check as follows:

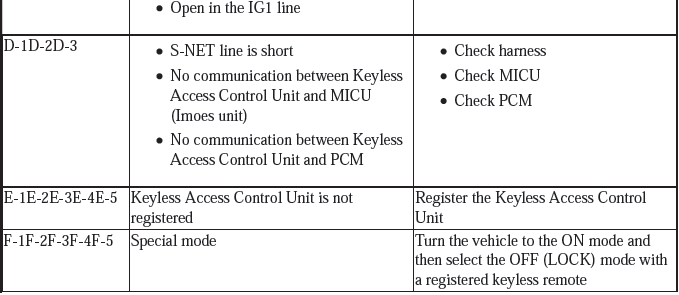

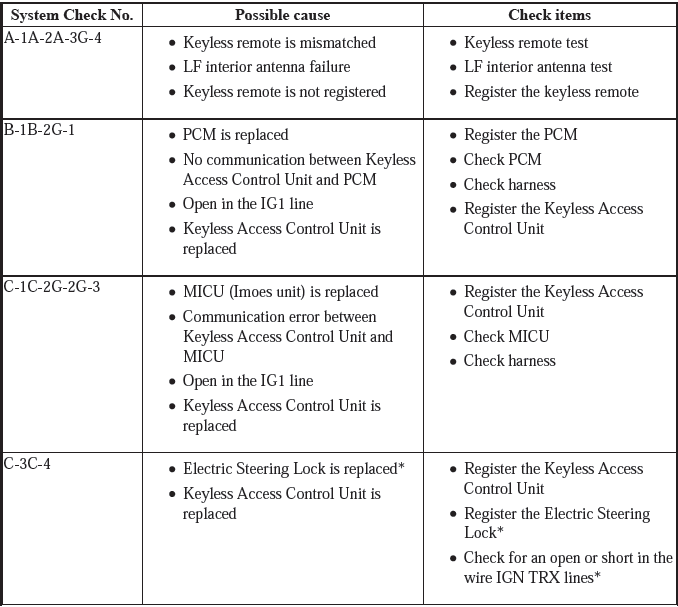

.png)
.png)
*: With electric steering lock

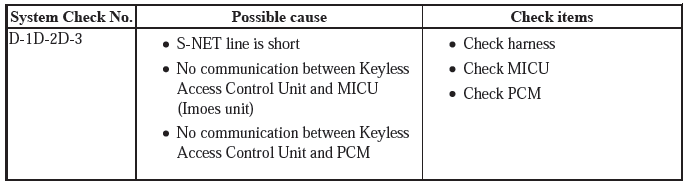

System Check 2 (Keyless Access Control Unit)
.png)
*: With electric steering lock
.png)
*: With electric steering lock

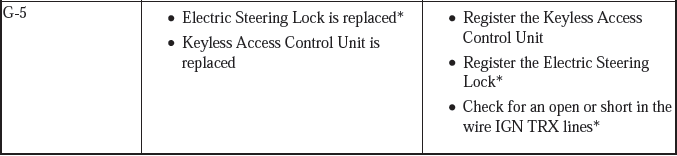

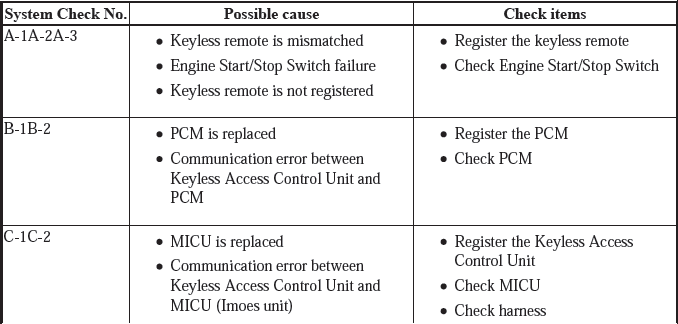

System Check (Backup Control Unit)
.png)
.png)
