Honda HR-V: Power Mirror Actuator Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Mirrors - Testing & Troubleshooting / Testing / Power Mirror Actuator Test

Test

1. Front Door Panel - Remove

2. Power Mirror Actuator - Test

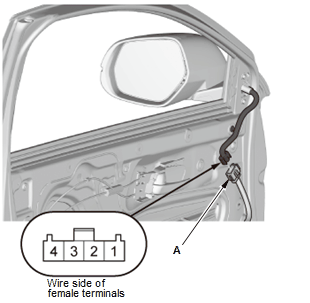

Without side turn signal light

Mirrors - Testing & Troubleshooting

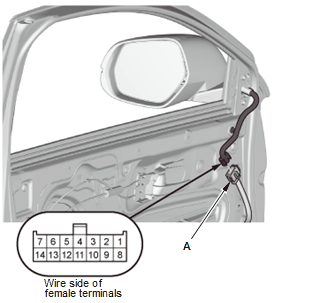

With side turn signal light

Mirrors - Testing & Troubleshooting

  1. Disconnect the connector (A).

Mirrors - Testing & Troubleshooting

Actuator Test

  1. Check the actuator operation by connecting 12 volt battery power and ground according to the table.3. If the mirror fails to work properly, the power mirror actuator is faulty; replace the power mirror.
  2. If the mirror fails to work properly, the power mirror actuator is faulty; replace the power mirror.

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
