Honda HR-V: Power Mirror Switch Test

Test

1. Front Door Switch Panel - Remove

2. Power Mirror Switch - Test

Mirrors - Testing & Troubleshooting

Mirrors - Testing & Troubleshooting

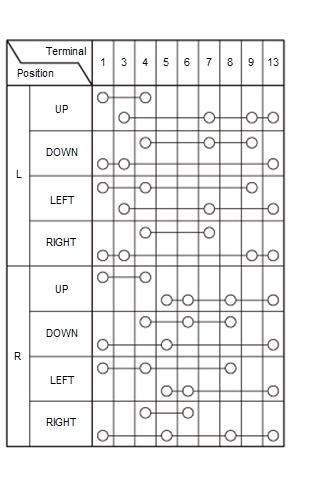

  1. Check for continuity between the terminals in each switch position according to the table.

    NOTE :

    • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

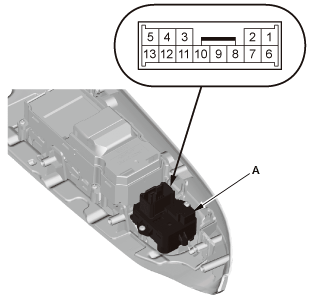

  2. If the result is not as specified, replace the power mirror switch (A)

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
