Honda HR-V: Reverse Idler Gear Shaft Assembly Disassembly and Reassembly (M/T)
Exploded View
NOTE: Prior to reassembling, clean all parts in solvent, dry them, and apply MTF to all contact surfaces.
1. Reverse Idler Gear Shaft Assembly - Exploded View
.png)

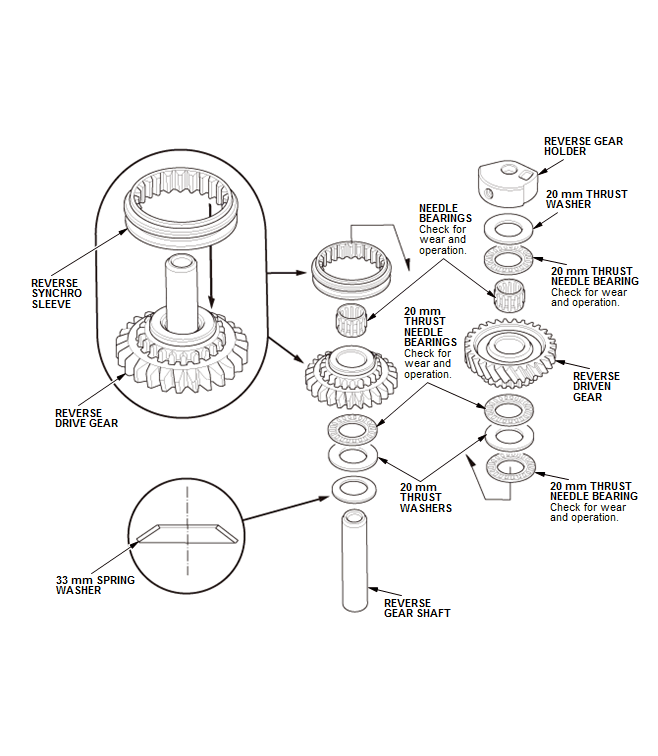

Fig. 18: Exploded View Of Reverse Idler Gear Shaft Assembly
REVERSE LOCKOUT SOLENOID DISASSEMBLY AND REASSEMBLY (M/T)
Disassembly
1. Air Cleaner - Remove
2. Reverse Lockout Solenoid - Remove
.png)

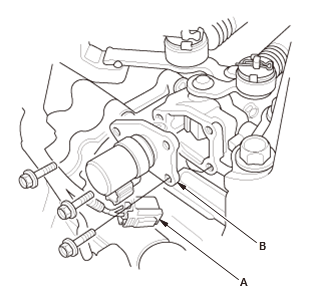

- Disconnect the connector (A)
- Remove the reverse lockout solenoid (B).
NOTE: Do not directly hit the reverse lockout solenoid with the hammer.
3. Reverse Lockout Solenoid - Disassemble
.png)

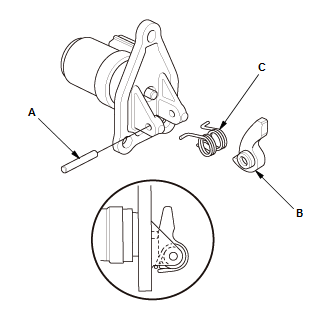

- Remove the pin (A), the select lock return spring (C), and select lock cam B.
Reassembly
1. Reverse Lockout Solenoid - Reassemble
.png)
- Install the pin (A), the select lock return spring (C), and select lock cam B.
2. Reverse Lockout Solenoid - Install
.png)
- Clean any dirt and oil from the sealing surface of the reverse lockout solenoid and the shift arm cover

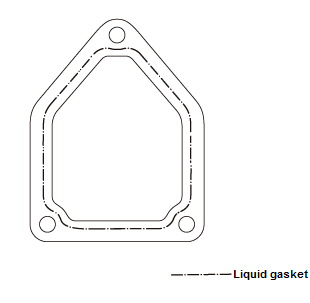

- Apply liquid gasket (P/N 08C70- K0334M) evenly to the shift arm cover
mating
surface of the reverse lockout solenoid. Install the component within 5
minutes of
applying the liquid gasket.
NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
.png)

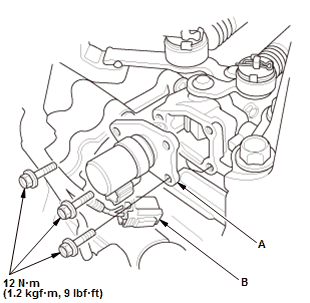

Fig. 19: Reverse Lockout Solenoid With Torque Specifications
- Install the reverse lockout solenoid (A)
- Connect the reverse lockout solenoid connector (B).
3. Air Cleaner - Install
SHIFT FORK DISASSEMBLY AND REASSEMBLY (M/T)
Exploded View
NOTE: Prior to reassembling, clean all parts in solvent, dry them, and apply MTF to all contact surfaces.
1. Shift Fork - Exploded View
.png)

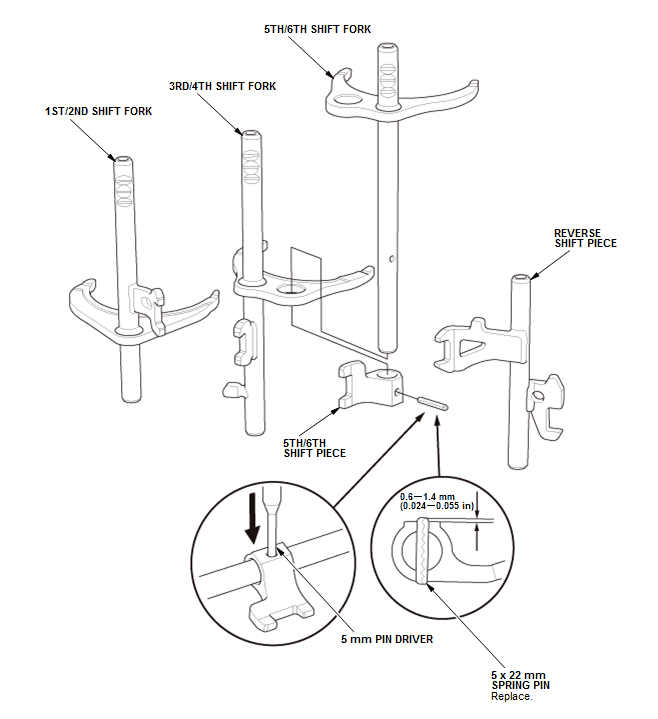

Fig. 20: Exploded View Of Shift Fork
