Honda HR-V: Side Sill Panel Removal and Installation
Removal
1. Front Wheel Arch Protector - Remove - Refer to: Front Wheel Arch Protector Removal and Installation, or Rear Wheel Arch Protector Removal and Installation
2. Rear Wheel Arch Protector - Remove - Refer to: Front Wheel Arch Protector Removal and Installation, or Rear Wheel Arch Protector Removal and Installation
3. Side Sill Panel - Remove

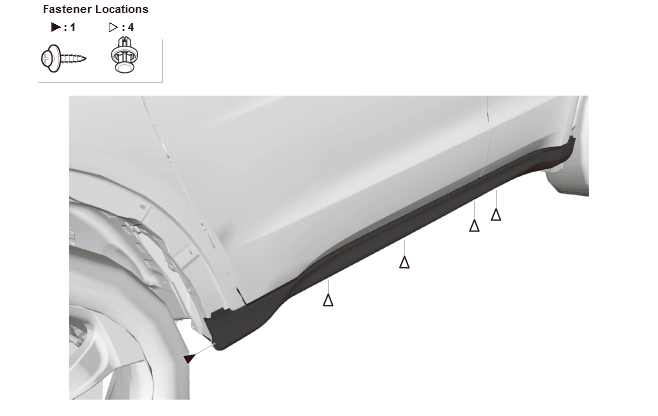

- Remove the screw and clips.
.png)

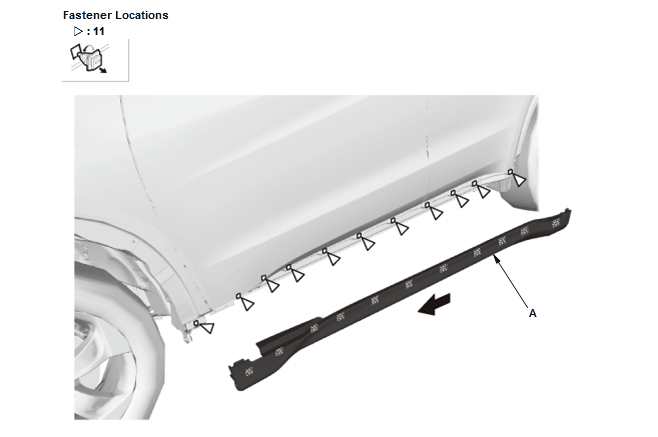

- Slide the side sill panel (A) forward, and remove it.
NOTE : The side clips will stay in the body.
.png)
- Remove the side clips from the body by turning them 45 º.
Installation
1. Side Sill Panel - Install
- Install the side clips on the side sill panel (A).
.png)
- Hold the panel up, and fit all the side clips into the holes in the body. Push on the panel until the clips snap into place
- Install the screw and clips.
.png)
2. Rear Wheel Arch Protector - Install - Refer to: Front Wheel Arch Protector Removal and Installation, or Rear Wheel Arch Protector Removal and Installation
3. Front Wheel Arch Protector - Install - Refer to: Front Wheel Arch Protector Removal and Installation, or Rear Wheel Arch Protector Removal and Installation
