Honda HR-V: Countershaft Assembly Clearance Inspection (M/T)
Inspection
NOTE: Before inspection, make sure the special bolt is tightened to the
specified torque.
1. Countershaft Assembly Clearance - Inspect

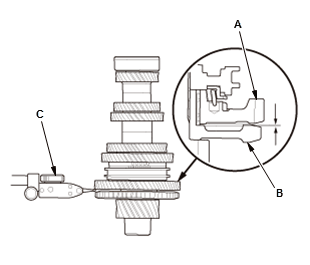

- Measure the clearance between 1st gear (A) and the countershaft reverse
gear (B)
with a dial indicator (C).
- If the clearance exceeds the service limit, go to step 2.
- If the clearance is within the service limit, go to step 4.
Standard: 0.06-0.16 mm (0.0024-0.0063 in)
Service Limit: 0.16 mm (0.0063 in)

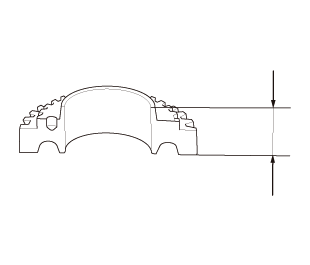

- Measure the length of the countershaft reverse gear as shown.
- If the length is not within the standard, replace the countershaft
reverse gear.
- If the length is within the standard, go to step 3.
Standard: 24.03-24.08 mm (0.9461-0.9480 in)

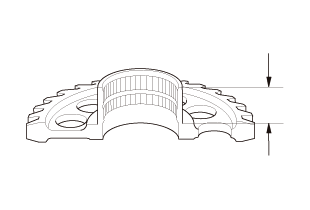

- Measure the thickness of 1st gear.
- If the thickness is less than the service limit, replace 1st gear.
- If the thickness within the service limit, replace the 1st/2nd
synchro hub and the
1st/2nd synchro sleeve as a set.
Standard: 23.92-23.97 mm (0.9417-0.9437 in)
Service Limit: 23.92 mm (0.9417 in)

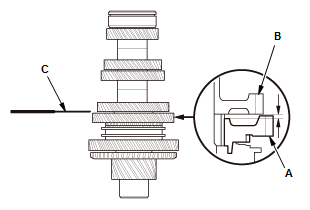

- Measure the clearance between 2nd gear (A) and 3rd gear (B) with a
feeler gauge
(C). If the clearance exceeds the service limit, go to step 5.
Standard: 0.06-0.21 mm (0.0024-0.0083 in)
Service Limit: 0.21 mm (0.0083 in)

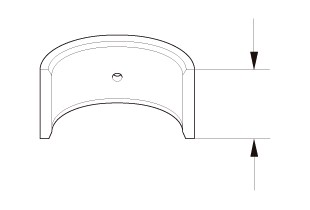

- Measure the length of the 2nd gear distance collar.
- If the length is not within the standard, replace the 2nd gear
distance collar.
- If the length is within the standard, go to step 6.
Standard: 26.53-26.58 mm (1.0445-1.0465 in)

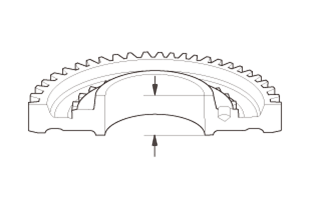

- Measure the thickness of 2nd gear as shown.
- If the thickness is less than the service limit, replace 2nd gear.
- If the thickness is within the service limit, replace the 1st/2nd
synchro hub and
the 1st/2nd synchro sleeve as a set.
Standard: 29.42-29.47 mm (1.1583-1.1602 in)
Service Limit: 29.42 mm (1.1583 in)
