Honda HR-V: Countershaft Disassembly, Reassembly, and Inspection (M/T)

Honda HR-V (2015-2021) Service Manual / Transmission / Manual Transaxle - Testing & Troubleshooting / Overhaul / Countershaft Disassembly, Reassembly, and Inspection (M/T)

Special Tools Required

Driver, 58 x 62 mm 070AD-PYZA100

Manual Transaxle - Testing & Troubleshooting

Driver Handle, 40 mm I.D. 07746-0030100

Manual Transaxle - Testing & Troubleshooting

Bearing Driver Attachment, 30 mm I.D. 07746-0030300

Manual Transaxle - Testing & Troubleshooting

Disassembly

NOTE: Refer to the Exploded View as needed during this procedure.

1. Countershaft - Disassemble

Manual Transaxle - Testing & Troubleshooting

  1. Securely clamp the countershaft assembly in a bench vise with wood blocks

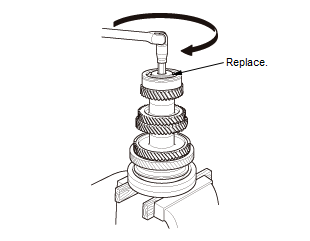

  2. Remove the special bolt (left-hand threads).

Manual Transaxle - Testing & Troubleshooting

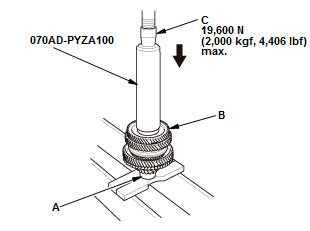

  1. Support 6th gear (A) on steel blocks, and press the countershaft (B) out of the ball bearing and 6th gear using an attachment (C) and a press (D)
  2. Remove the 35 mm shim.

Manual Transaxle - Testing & Troubleshooting

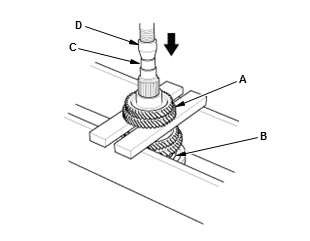

  1. Support 4th gear (A) on steel blocks, and press the countershaft (B) out of 4th gear and 5th gear using an attachment (C) and a press (D).

Manual Transaxle - Testing & Troubleshooting

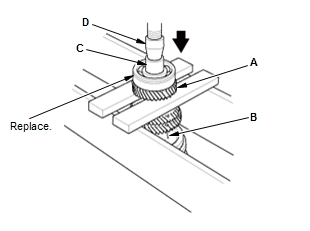

  1. Support 2nd gear (A) on steel blocks, and press the countershaft (B) out of 2nd gear and 3rd gear using an attachment (C) and a press (D).

Inspection

1. Countershaft - Inspect

Manual Transaxle - Testing & Troubleshooting

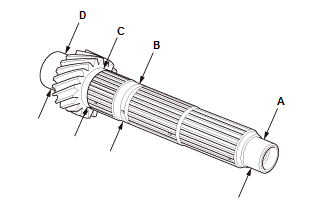

  1. Inspect the oil passage, gear, and bearing contact areas for wear and damage, then measure the countershaft at points A, B, C, and D. If any part of the countershaft is less than the service limit, replace it.

Standard:

  1. Ball Bearing Contact Area (Transmission Housing Side): 30.002-30.015 mm (1.18118-1.18169 in)
  2. 2nd Gear Distance Collar Contact Area: 40.2-40.6 mm (1.583-1.598 in)
  3. Countershaft Reverse Gear Contact Area: 42.975-42.991 mm (1.69193-1.69256 in)
  4. Needle Bearing Contact Area (Clutch Housing Side): 35.000-35.015 mm (1.37795-1.37854 in)

Service Limit:

  1. 30.002 mm (1.18118 in)
  2. 40.2 mm (1.583 in)
  3. 42.975 mm (1.69193 in)
  4. 35.000 mm (1.37795 in)

Manual Transaxle - Testing & Troubleshooting

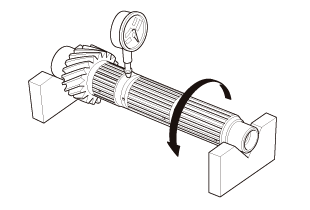

  1. Inspect the runout by supporting both ends of the countershaft. Then rotate the countershaft two complete turns while measuring with a dial gauge. If the runout exceeds the standard, replace the countershaft.

Standard: 0.02 mm (0.0008 in) max.

Exploded View

1. Countershaft - Exploded View

Manual Transaxle - Testing & Troubleshooting

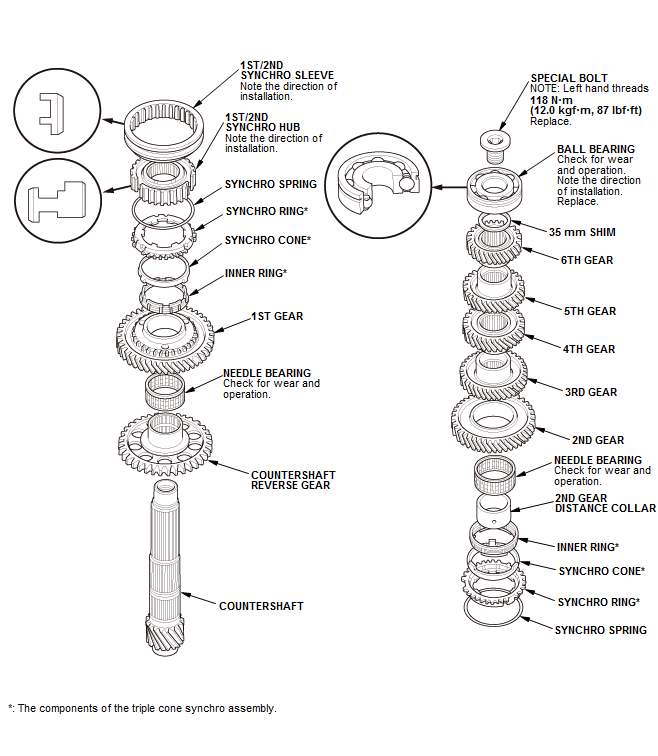

Fig. 26: Exploded View Of Countershaft With Torque Specifications

Reassembly

NOTE: Refer to the Exploded View as needed during this procedure.

1. Countershaft - Reassemble

Manual Transaxle - Testing & Troubleshooting

  1. Clean all parts in solvent, dry them, and apply MTF to all contact surfaces

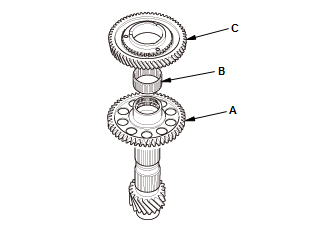

  2. Install the countershaft reverse gear (A)
  3. Install the needle bearing (B)
  4. Install 1st gear (C).

Manual Transaxle - Testing & Troubleshooting

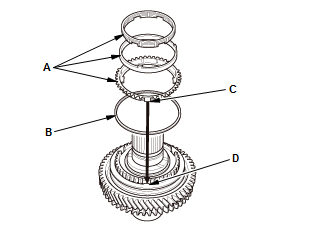

  1. Install the triple cone synchro assembly (A) with the synchro spring (B) by aligning the synchro cone fingers (C) with the holes (D) in 1st gear.

Manual Transaxle - Testing & Troubleshooting

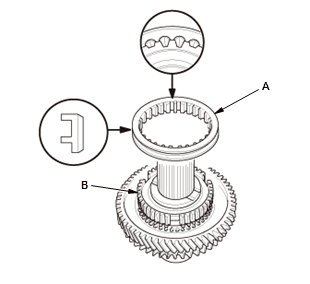

  1. Install the 1st/2nd synchro hub (A) by aligning the synchro ring fingers (B) with the grooves (C) in the 1st/2nd synchro hub.

Manual Transaxle - Testing & Troubleshooting

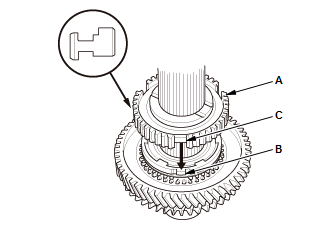

  1. Install the 1st/2nd synchro sleeve (A) by aligning the slots of the 1st/2nd synchro sleeve and the 1st/2nd synchro hub (B).

    NOTE: Make sure to align the slots in the 1st/2nd synchro hub as shown.

  2. Check the operation of the 1st/2nd synchro hub set.

Manual Transaxle - Testing & Troubleshooting

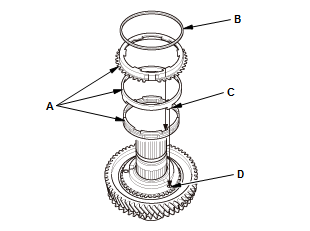

  1. Install the triple cone synchro assembly (A) with the synchro spring (B) by aligning the synchro ring fingers (C) with the grooves (D) in the 1st/2nd synchro hub.

Manual Transaxle - Testing & Troubleshooting

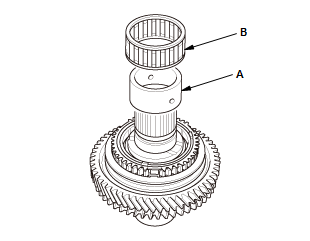

  1. Install the 2nd gear distance collar (A) with the needle bearing (B).

Manual Transaxle - Testing & Troubleshooting

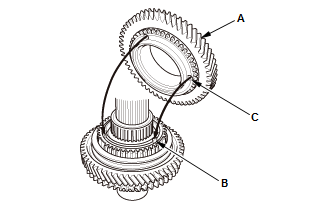

  1. Install 2nd gear (A) by aligning the synchro cone fingers (B) with the holes in 2nd gear (C).

Manual Transaxle - Testing & Troubleshooting

  1. Support the countershaft (A) on steel blocks, then press on 3rd gear (B) using the 58 x 62 mm driver and a press (C).

    NOTE: Do not exceed the maximum pressure.

Manual Transaxle - Testing & Troubleshooting

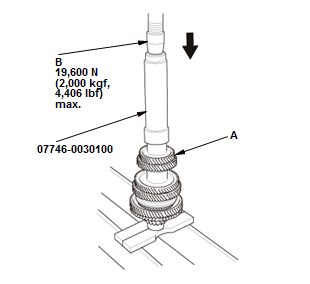

  1. Press on 4th gear (A) using the 58 x 62 mm driver and a press (B).

    NOTE: Do not exceed the maximum pressure.

Manual Transaxle - Testing & Troubleshooting

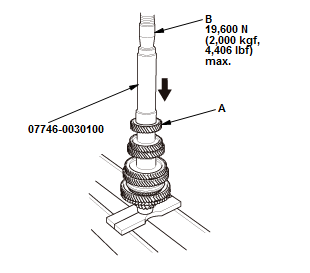

  1. Press on 5th gear (A) using the 40 mm I.D. driver handle and a press (B).

    NOTE: Do not exceed the maximum pressure.

Manual Transaxle - Testing & Troubleshooting

  1. Press on 6th gear (A) using the 40 mm I.D. driver handle and a press (B).

    NOTE: Do not exceed the maximum pressure.

Manual Transaxle - Testing & Troubleshooting

  1. Install the 35 mm shim (A), and temporarily press on the used ball bearing (B) using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press (C).

    NOTE:

    • Use any size of 35 mm shim, and note size you used. Measurements taken in the following steps will determine the correct shim to use for final assembly.
    • Make sure the ball bearing is installed in the correct direction.
  2. Measure the clearance between the ball bearing (A) and the 35 mm shim (B) with a feeler gauge (C).

Standard: 0.04-0.10 mm (0.0016-0.0039 in)

  1. If the measured clearance in step 17 is not within the standard, select another suitable 35 mm shim from the table, then go to next step to replace the 35 mm shim and the ball bearing with new ones. If the measured clearance in step 17 is within the standard, go to the next step to replace only the ball bearing with a new one.

35 mm Shim

A      0.87 mm (0.0343 in)
AA   0.91 mm (0.0358 in)
B      0.95 mm (0.0374 in)
AB   0.99 mm (0.0390 in)
C      1.03 mm (0.0406 in)
AC   1.07 mm (0.0421 in)
D      1.11 mm (0.0437 in)
AD   1.15 mm (0.0453 in)
E      1.19 mm (0.0469 in)
AE   1.23 mm (0.0484 in)
F      1.27 mm (0.0500 in)
AF    1.31 mm (0.0516 in)
G      1.35 mm (0.0532 in)
AG   1.39 mm (0.0547 in)
H      1.43 mm (0.0563 in)
AH   1.47 mm (0.0579 in)
J       1.51 mm (0.0594 in)
AJ    1.55 mm (0.0610 in)
K      1.59 mm (0.0626 in)
AK   1.63 mm (0.0642 in)
L       1.67 mm (0.0657 in)
AL    1.71 mm (0.0673 in)
M     1.75 mm (0.0689 in)
AM   1.79 mm (0.0705 in)
N      1.83 mm (0.0720 in)
AN   1.87 mm (0.0736 in)
P       1.91 mm (0.0752 in)
AP    1.95 mm (0.0768 in)
Q      1.99 mm (0.0783 in)

  1. Remove 6th gear with the ball bearing and the 35 mm shim using a press.
  2. Repeat step 15 to install 6th gear.

Manual Transaxle - Testing & Troubleshooting

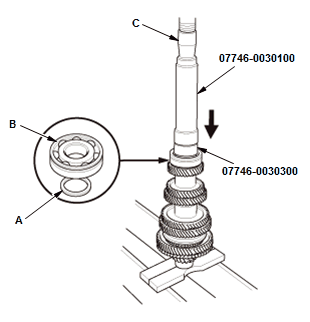

  1. Install the correct 35 mm shim (A) and a new ball bearing (B) using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press (C).

    NOTE:

    • If necessary, replace the 35 mm shim with the correct one selected in step 18.
    • Make sure the ball bearing is installed in the correct direction.
  2. Recheck the clearance between the ball bearing and the 35 mm shim with a feeler gauge.

Manual Transaxle - Testing & Troubleshooting
Fig. 27: Countershaft Assembly Special Bolt With Torque Specifications

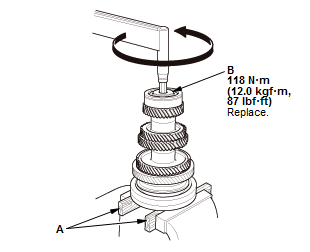

  1. Securely clamp the countershaft assembly in a bench vise with wood blocks (A)
  2. Tighten a new special bolt (B) (left-hand threads).

    NOTE: Apply new MTF to the bolt threads and flange.
